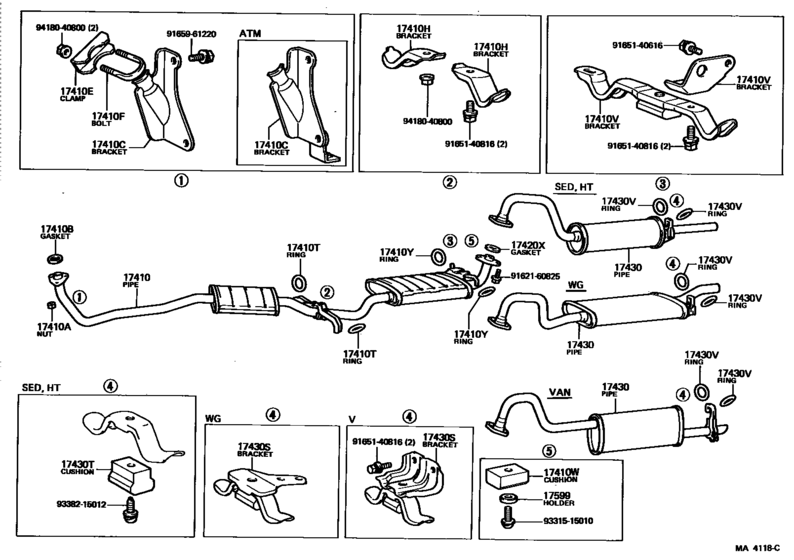

Exhaust Pipe ([09.1979 - ] (7909- )L) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-54030 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [09.1979 - 07.1983] L..LS110 |
17410-54030 |
US $640.64 |
||
|
17410A
|
17410A
90179-10028 Nut, Exhaust Pipe Set Stud Bolt[09.1979 - 07.1983] L,MEU,1GE#,MJ,2LT#,5M#,MTEU,MU..GS11#,LS11#,MS11# |
90179-10028 |
from US $2.91 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[09.1979 - 07.1983] L,MEU,1GE#,5M#,MU..GS11#,LS110,117,MS110,112 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[09.1979 - 07.1983] L,MEU,1GE#,5M#,MU..GS11#,LS110,117,MS110,112 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-54010 Bracket, Exhaust Pipe Front (For Front)[09.1979 - 07.1983] L..LS110,117..MTM |
17571-54010 |
US $12.67 |
||
|
17410E
|
17410E
90917-04007
Clamp No.1, Exhaust Pipe Front (For Front)
[09.1979 - 07.1983] L..LS110,117 |
90917-04007 |
— | ||
|
17410F
|
17410F
90117-08016 Bolt Or Ring, Exhaust Pipe Front (For Front)[09.1979 - 07.1983] L..LS110,117 |
90117-08016 |
US $6.41 |
||
|
17410H
|
17410H
17572-41030 Bracket, Exhaust Pipe Front (For Center)EXHAUST PIPE FRONT (FOR CENTER) [09.1979 - 07.1983] L,MJ,2LT#..LS11#,MS117 |
17572-41030 |
US $8.44 |
||
|
17410T
|
17410T
17565-45010 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1979 - 07.1983] L,MJ,2LT#..LS11#,MS117 |
17565-45010 |
US $8.01 |
||
|
17410V
|
17410V
17505-54010 Bracket, Exhaust Pipe Front (For Rear)[09.1979 - 07.1983] L,2LT#..LS110,111 LWR |
17505-54010 |
US $26.64 |
||
|
17410V
|
17410V
17575-54010 Bracket, Exhaust Pipe Front (For Rear)[09.1979 - 07.1983] L,2LT#..LS110,111 UPR |
17575-54010 |
US $13.25 |
||
|
17410Y
|
17410Y
17565-45010 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1979 - 07.1983] L,MJ,2LT#..LS11#,MS117 |
17565-45010 |
US $8.01 |
||
|
17420X
|
17420X
90917-06004
Gasket(For Manifold Extension)
[09.1979 - 07.1983] L,1GEJ,MJ..GS117,LS110,117,MS117 |
90917-06004 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[09.1979 - 07.1983] L,1GEJ,MJ..GS117,LS110,117,MS117 |
90917-06039 |
from US $2.36 |
||
|
17430
|
17430
17430-54050 Pipe Assy, Exhaust, TailEXHAUST, TAIL [09.1979 - 07.1983] L..LS110..HT,SED |
17430-54050 |
US $334.88 |
||
|
17430T
|
17430T
17591-36010
Cushion, Exhaust Pipe Front (For Rear)
[09.1979 - 07.1983] L,MEU,1GEU,2LT#,5M#,5RU,MTEU,MU..GS110,LS110,111,MS110,112,RS110..HT,SED |
17591-36010 |
— | ||
| replacements | |||||
|
17430T
|
17430T
17591-36011 Cushion, Exhaust Pipe Center, Center[09.1979 - 07.1983] L,MEU,1GEU,2LT#,5M#,5RU,MTEU,MU..GS110,LS110,111,MS110,112,RS110..HT,SED |
17591-36011 |
US $17.41 |
||
|
17430T
|
17430T
90159-50207 New Genuine Part[09.1979 - 07.1983] L,MEU,1GEU,2LT#,5M#,5RU,MTEU,MU..GS110,LS110,111,MS110,112,RS110..HT,SED |
90159-50207 |
US $0.92 |
||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1979 - 07.1983] L,MEU,1GE#,MJ,2LT#,5M#,5RU,MTEU,MU..GS11#,LS11#,MS11#,RS110 |
90301-34207 |
US $9.92 |
||
|
9162160825
|
9162160825
91621-60825 BOLT |
91621-60825 |
US $1.93 |
||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165961220
|
9165961220
91659-61220
Bolt, Stud(For Turbocharger Stay)
|
91659-61220 |
— | ||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.12 |
||
|
9338215012
|
9338215012
93382-15012 New Genuine Part |
93382-15012 |
US $1.12 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
