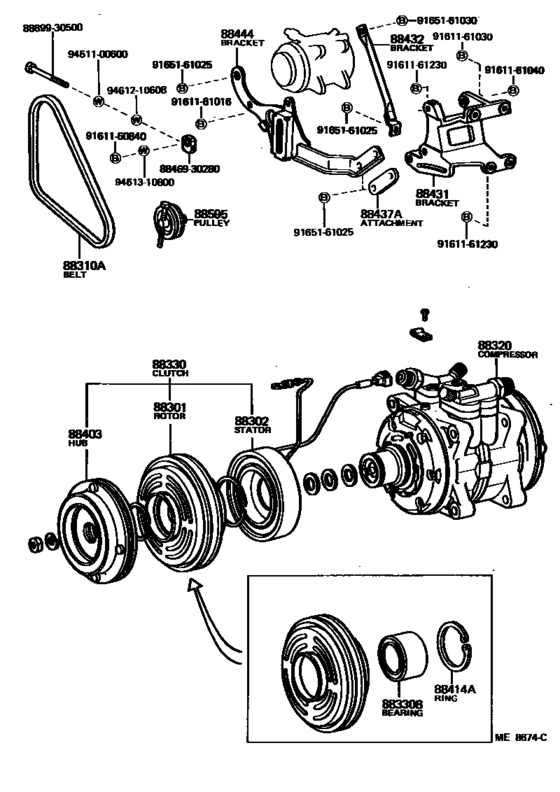

Heating & Air Conditioning - Compressor ([09.1979 - ] (7909- )LS110,117) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-22030
Rotor Sub-Assy, Magnet Clutch
[05.1981 - 07.1983] LS11# |
88412-22030 |
— | ||
|
88301
|
88301
88412-26010
Rotor Sub-Assy, Magnet Clutch
[09.1979 - 05.1981] LS11# |
88412-26010 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-22240
Rotor Sub-Assy, Magnet Clutch
[09.1979 - 05.1981] LS11# |
88412-22240 |
— | ||
|
88302
|
88302
88411-30360
Stator Sub-Assy, Magnet Clutch
[09.1979 - 05.1981] LS11# |
88411-30360 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-30380
Stator Sub-Assy, Magnet Clutch
[09.1979 - 05.1981] LS11# |
88411-30380 |
— | ||
|
88302
|
88302
88411-30380
Stator Sub-Assy, Magnet Clutch
[05.1981 - 07.1983] LS110,117 |
88411-30380 |
— | ||
|
88310A
|
88310A
99322-11270 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 [09.1979 - 07.1983] LS110,117 |
99322-11270 |
US $17.47 |
||
| replacement | |||||
|
88310A
|
88310A
99322-51270
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[09.1979 - 07.1983] LS110,117 |
99322-51270 |
— | ||
|
88320
|
88320
88320-30310
Compressor Assy, Cooler
[09.1979 - 07.1983] LS110,117 |
88320-30310 |
— | ||
|
88330
|
88330
88410-30340 Clutch Assy, MagnetMAGNET [09.1979 - 05.1981] LS11# |
88410-30340 |
US $500.86 |
||
| replacement | |||||
|
88330
|
88330
88410-30380 Clutch Assy, Magnet[09.1979 - 05.1981] LS11# |
88410-30380 |
US $499.41 |
||
|
88330
|
88330
88410-30380 Clutch Assy, Magnet[05.1981 - 07.1983] LS110,117 |
88410-30380 |
US $499.41 |
||
|
88330B
|
88330B
90099-10127
Bearing, Magnet Clutch
[09.1979 - 05.1981] LS11# |
90099-10127 |
— | ||
| replacement | |||||
|
88330B
|
88330B
90099-10133
Bearing, Ball(For Clutch Pully)
[09.1979 - 05.1981] LS11# |
90099-10133 |
— | ||
|
88330B
|
88330B
90099-10133
Bearing, Ball(For Clutch Pully)
[05.1981 - 07.1983] LS11# |
90099-10133 |
— | ||
|
88403
|
88403
88403-14030
Hub Sub-Assy, Magnet Clutch
[05.1981 - 07.1983] LS11# |
88403-14030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[05.1981 - 07.1983] LS11# |
88403-12030 |
— | ||
|
88403
|
88403
88403-22030
Hub Sub-Assy, Magnet Clutch
[09.1979 - 05.1981] LS11#; MS11#..CBR,EFI,TBO |
88403-22030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[09.1979 - 05.1981] LS11#; MS11#..CBR,EFI,TBO |
88403-12030 |
— | ||
|
88414A
|
88414A
90099-07094
Ring, Snap (For Magnet Clutch)
[09.1979 - 05.1981] LS11# |
90099-07094 |
— | ||
|
88414A
|
88414A
90099-07114 Ring, Snap (For Magnet Clutch)[05.1981 - 07.1983] LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE |
90099-07114 |
from US $1.15 |
||
|
88431
|
88431
88431-30400
Bracket, Compressor Mounting, No.1
[09.1979 - 07.1983] LS110,117 |
88431-30400 |
— | ||
|
88432
|
88432
88434-30321
Bracket, Compressor Mounting, No.2
[09.1979 - 07.1983] LS110,117 |
88434-30321 |
— | ||
|
88444
|
88444
88444-22040
Bracket, Idle Pulley
[09.1979 - 08.1982] LS11# |
88444-22040 |
— | ||
|
88595
|
88595
88440-25010
Pulley, Cooler Compressor Idle
[09.1979 - 07.1983] LS110,117 |
88440-25010 |
— | ||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[09.1979 - 07.1983] LS110,117 |
88440-28050 |
— | ||
|
8846930280
|
8846930280
88469-30280 Collar, Adjusting |
88469-30280 |
from US $1.54 |
||
|
8889930500
|
8889930500
88899-30500
Cover, Evaporator
|
88899-30500 |
— | ||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.08 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.08 |
||
|
9161161230
|
9161161230
91611-61230 New Genuine Part |
91611-61230 |
US $2.77 |
||
| replacement | |||||
|
9161161230
|
9161161230
91619-61230 BOLT |
91619-61230 |
US $1.76 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.56 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461210608
|
9461210608
94612-10608
New Genuine Part
|
94612-10608 |
— | ||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
