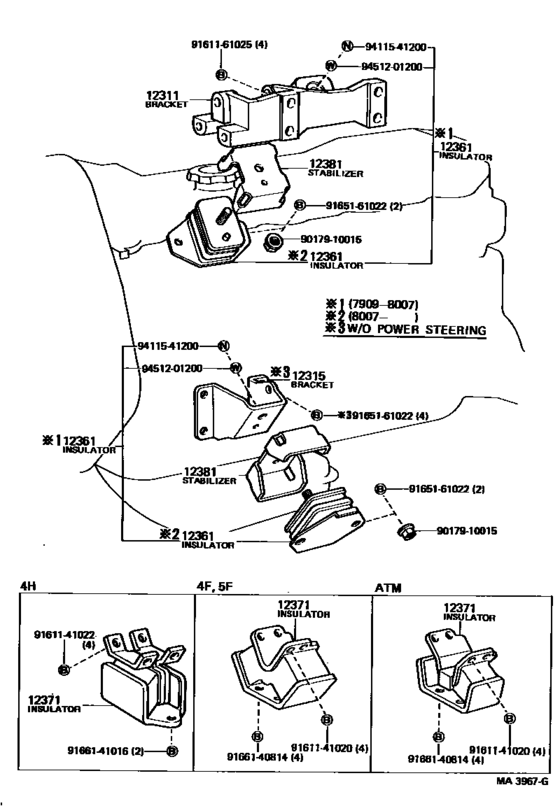

Mounting ([09.1979 - 10.1980] (7909-8010)L) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-54010 Bracket, Engine Mounting, Front No.1 RhENGINE MOUNTING, FRONT NO.1 RH [09.1979 - 08.1982] L..LS11# |
12311-54010 |
US $97.55 |
||
|
12315
|
12315
12312-54011 Bracket, Engine Mounting, Front No.1 LhENGINE MOUNTING, FRONT NO.1 LH [09.1979 - 07.1983] L..LS110,117 W/O POWER STEERING |
12312-54011 |
US $25.92 |
||
|
12361
|
12361
12361-54012
Insulator, Engine Mounting, Front
[07.1980 - 07.1983] L,2LT#..LS11# RH |
12361-54012 |
— | ||
|
12361
|
12361
12361-59046
Insulator, Engine Mounting, Front
[09.1979 - 07.1980] L..LS11# RH |
12361-59046 |
— | ||
| replacements | |||||
|
12361
|
12361
94130-61200 Nut[09.1979 - 07.1980] L..LS11# RH |
94130-61200 |
from US $0.99 |
||
|
12361
|
12361
12361-54012
Insulator, Engine Mounting, Front
[09.1979 - 07.1980] L..LS11# RH |
12361-54012 |
— | ||
|
12361
|
12361
94512-01200 Washer[09.1979 - 07.1980] L..LS11# RH |
94512-01200 |
from US $0.76 |
||
|
12361
|
12361
12362-54012 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [07.1980 - 07.1983] L,2LT#..LS11# LH |
12362-54012 |
US $74.26 |
||
|
12361
|
12361
12362-59016
Insulator, Engine Mounting, Front
[09.1979 - 07.1980] L..LS11# LH |
12362-59016 |
— | ||
| replacements | |||||
|
12361
|
12361
94130-61200 Nut[09.1979 - 07.1980] L..LS11# LH |
94130-61200 |
from US $0.99 |
||
|
12361
|
12361
12362-54012 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [09.1979 - 07.1980] L..LS11# LH |
12362-54012 |
US $74.26 |
||
|
12361
|
12361
94512-01200 Washer[09.1979 - 07.1980] L..LS11# LH |
94512-01200 |
from US $0.76 |
||
|
12371
|
12371
12371-34020 Insulator, Engine Mounting, Rear No.1[09.1979 - 10.1980] L..LS11#..4F,5F |
12371-34020 |
US $44.99 |
||
|
12381
|
12381
12381-54010 Stabilizer, Engine Mounting[09.1979 - 07.1983] L,2LT#..LS11# |
12381-54010 |
US $23.41 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161141022
|
9161141022
91611-41022 Bolt (for Transmission Control Cable Bracket) |
91611-41022 |
US $2.91 |
||
| replacement | |||||
|
9161141022
|
9161141022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9165161022
|
9165161022
91651-61022 Bolt |
91651-61022 |
US $0.79 |
||
|
9166140814
|
9166140814
91661-40814
New Genuine Part
|
91661-40814 |
— | ||
|
9166141016
|
9166141016
91661-41016 New Genuine Part |
91661-41016 |
US $1.89 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
