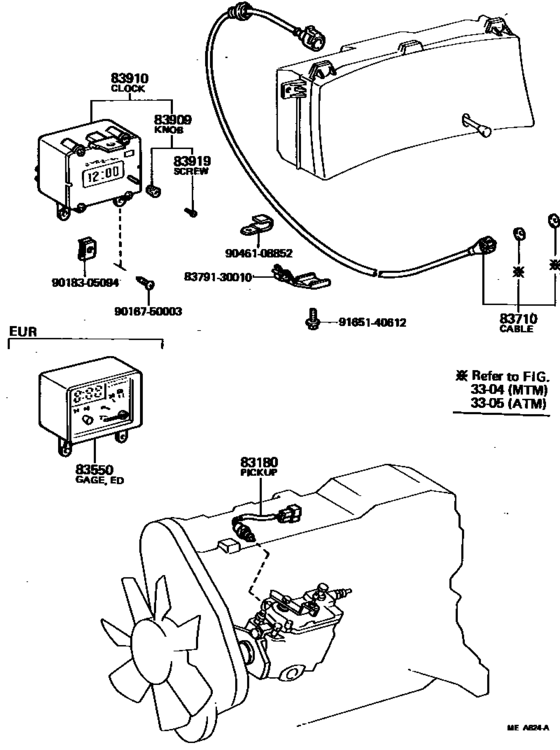

Meter ([08.1981 - ] (8108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- General
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83710
|
83710
83710-30470
Cable Assy, Speedometer Drive, No.1
[08.1981 - 07.1983] LS110,MS112,RS110..LHD..MTM L=1760 |
83710-30470 |
— | ||
|
83710
|
83710
83710-39655 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [09.1979 - 08.1980] LS110,MS11#,RS110..LHD..(4F,5F) L=1610 |
83710-39655 |
US $48.05 |
||
|
83909
|
83909
83909-14012
Knob, Clock
[08.1981 - 07.1983] RS110; LS110..BTP |
83909-14012 |
— | ||
|
83910
|
83910
83910-30240
Clock Assy
[09.1979 - 08.1981] LS110,MS11#,RS110..BTP,DLX,SAL |
83910-30240 |
— | ||
|
83910
|
83910
83910-30320
Clock Assy
[08.1981 - 07.1983] RS110; LS110..BTP |
83910-30320 |
— | ||
|
83919
|
83919
83919-14012
Screw, Thermometer
[08.1981 - 07.1983] RS110; LS110..BTP |
83919-14012 |
— | ||
|
8379130010
|
8379130010
83791-30010
New Genuine Part
|
83791-30010 |
— | ||
|
9016750003
|
9016750003
90167-50003 New Genuine Part |
90167-50003 |
US $1.75 |
||
| replacement | |||||
|
9016750003
|
9016750003
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9046108852
|
9046108852
90461-08852
New Genuine Part
|
90461-08852 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
