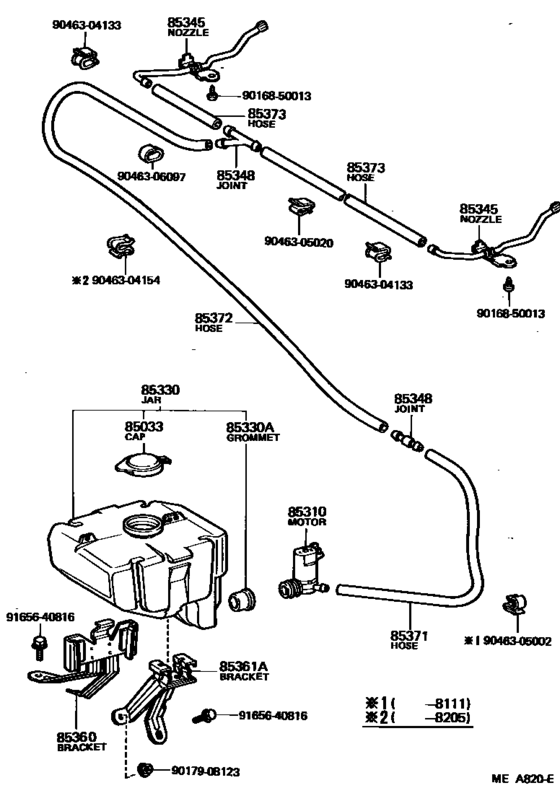

Windshield Washer ([08.1981 - ] (8108- )EUR) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- General
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-16010
Cap Assy, Windshield Washer
[09.1979 - 08.1980] LS110,MS11#,RS110 |
85332-16010 |
— | ||
|
85310
|
85310
85310-20100
Motor And Pump Assy, Windshield Washer
[09.1979 - 08.1981] LS110,MS11#,RS110 |
85310-20100 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[09.1979 - 08.1981] LS110,MS11#,RS110 |
85310-22080 |
from US $49.97 |
||
|
85310
|
85310
85310-30060
Motor And Pump Assy, Windshield Washer
[08.1981 - 07.1983] LS110,MS112..EUR |
85310-30060 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-89115
Motor Assy, Rear Washer
[08.1981 - 07.1983] LS110,MS112..EUR |
85310-89115 |
— | ||
|
85330
|
85330
85330-30110
Jar Assy, Windshield Washer
[09.1979 - 08.1980] LS110,MS111,RS110 |
85330-30110 |
— | ||
|
85330
|
85330
85330-30160
Jar Assy, Windshield Washer
[08.1981 - 07.1983] LS110,MS112..EUR |
85330-30160 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[09.1979 - 08.1980] LS110,MS11#,RS110 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[09.1979 - 08.1980] LS110,MS11#,RS110 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[09.1979 - 08.1980] LS110,MS11#,RS110 |
90068-32002 |
US $7.46 |
||
|
85345
|
85345
85345-30060
Nozzle, Windshield Washer
[09.1979 - 08.1981] LS110,MS11#,RS110 RH |
85345-30060 |
— | ||
|
85345
|
85345
85345-30070
Nozzle, Windshield Washer
[08.1981 - 07.1983] LS110,MS112,RS110 RH |
85345-30070 |
— | ||
|
85345
|
85345
85346-30060
Nozzle, Windshield Washer
[09.1979 - 08.1981] LS110,MS11#,RS110 LH |
85346-30060 |
— | ||
|
85345
|
85345
85346-30070
Nozzle, Windshield Washer
[08.1981 - 07.1983] LS110,MS112,RS110 LH |
85346-30070 |
— | ||
|
85348
|
85348
85355-14010
Joint, Windshield Washer Hose, No.1
[09.1979 - 07.1983] LS110,MS11#,RS110 3 WAY |
85355-14010 |
— | ||
| replacement | |||||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[09.1979 - 07.1983] LS110,MS11#,RS110 3 WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[09.1979 - 07.1983] LS110,MS11#,RS110 2 WAY |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[09.1979 - 07.1983] LS110,MS11#,RS110 2 WAY |
85349-89122 |
from US $1.25 |
||
|
85360
|
85360
85036-30090
Bracket Assy, Windshield Washer
[08.1981 - 07.1983] LS110,MS112..LHD..EUR |
85036-30090 |
— | ||
|
85360
|
85360
85361-30100 Bracket Assy, Windshield WasherWINDSHIELD WASHER [09.1979 - 08.1980] LS110,MS11#,RS110 |
85361-30100 |
US $16.31 |
||
|
85361A
|
85361A
85036-30100
Bracket, Windshield Washer, No.1
[08.1981 - 07.1983] LS110..EUR |
85036-30100 |
— | ||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1980 - 08.1981] LS110,MS112,RS110..EUR,GEN *H,L=400,NO.1 |
90446-06013 |
from US $0.70 |
||
|
85371
|
85371
90446-06286
Hose, Windshield Washer (From Motor To Joint)
[09.1979 - 08.1980] LS110,MS11#,RS110 *H,L=400,NO.1 |
90446-06286 |
— | ||
| replacement | |||||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[09.1979 - 08.1980] LS110,MS11#,RS110 *H,L=400,NO.1 |
90446-06013 |
from US $0.70 |
||
|
85371
|
85371
90446-07009
Hose, Windshield Washer (From Motor To Joint)
[09.1979 - 08.1981] LS110,MS11#,RS110 L=400,NO.2 |
90446-07009 |
— | ||
|
85372
|
85372
90099-33368
Hose, Windshield Washer (From Motor To Joint)
[08.1981 - 07.1983] LS110,MS112,RS110 *H,L=950 |
90099-33368 |
— | ||
| replacement | |||||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1981 - 07.1983] LS110,MS112,RS110 *H,L=950 |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
90446-07005
Hose, Windshield Washer (From Joint To Joint), No.1
[09.1979 - 08.1981] LS110,MS11#,RS110 *H,L=1200 |
90446-07005 |
— | ||
| replacement | |||||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1979 - 08.1981] LS110,MS11#,RS110 *H,L=1200 |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1981 - 07.1983] LS110,MS112,RS110 *H,L=60 |
90099-33080 |
from US $5.99 |
||
|
85373
|
85373
90099-33248
Hose, Rear Washer (From Joint To Joint), No.3
[09.1979 - 08.1981] LS110,MS11#,RS110 *H,L=80 |
90099-33248 |
— | ||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[09.1979 - 07.1983] LS110,MS11#,RS110 L=450 |
90446-06013 |
from US $0.70 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9046304133
|
9046304133
90463-04133 New Genuine Part |
90463-04133 |
US $2.77 |
||
|
9046304154
|
9046304154
90463-04154 New Genuine Part |
90463-04154 |
US $2.77 |
||
|
9046305002
|
9046305002
90463-05002 Clamp, No.1(For Luggage Door Lock Control Cable) |
90463-05002 |
US $2.77 |
||
|
9046305020
|
9046305020
90463-05020 New Genuine Part |
90463-05020 |
US $1.89 |
||
|
9046306097
|
9046306097
90463-06097
New Genuine Part
|
90463-06097 |
— | ||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
