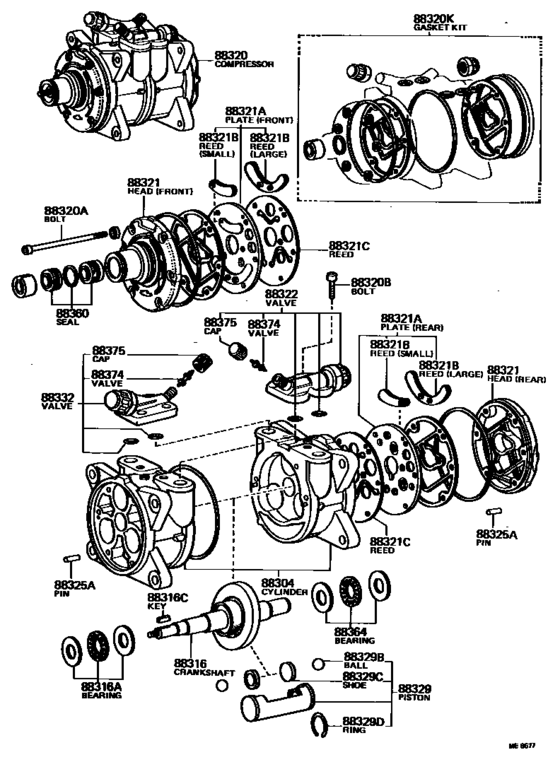

Heating & Air Conditioning - Compressor ([09.1979 - ] (7909- )LS110) Diagram Toyota CROWN/ MAJESTA
- Year
- 1980 - 1981
- Sales region
- Europe
- Frame
- LS110
- grade
- DLX
- body
- SED
- ENGINE
- L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1980
- To
- 08.1981
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-22010
Cylinder Sub-Assy, Cooler Compressor
[09.1979 - 07.1983] LS110 |
88304-22010 |
— | ||
|
88316
|
88316
88316-30270
Crankshaft, Cooler Compressor
[09.1979 - 07.1983] LS110,MS11# |
88316-30270 |
— | ||
|
88316A
|
88316A
88366-20050
Bearing, Compressor Crankshaft, Front
[09.1979 - 07.1983] LS110 |
88366-20050 |
— | ||
|
88316C
|
88316C
90099-13011
Key, Compressor Crankshaft
[09.1979 - 07.1983] LS110,MS11# |
90099-13011 |
— | ||
|
88320
|
88320
88320-30310
Compressor Assy, Cooler
[09.1979 - 07.1983] LS110 |
88320-30310 |
— | ||
|
88320A
|
88320A
90099-04926
Bolt, Through
[09.1979 - 07.1983] LS110 |
90099-04926 |
— | ||
|
88320B
|
88320B
90099-04905
Bolt, Service Valve
[09.1979 - 07.1983] LS110,MS11# |
90099-04905 |
— | ||
| replacement | |||||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[09.1979 - 07.1983] LS110,MS11# |
90099-04924 |
— | ||
|
88320K
|
88320K
04881-14030
Gasket Kit, Overhaul
[09.1979 - 07.1983] LS110 |
04881-14030 |
— | ||
|
88321
|
88321
88321-20061
Head, Cooler Compressor Cylinder
[09.1979 - 07.1983] LS110 FR |
88321-20061 |
— | ||
|
88321
|
88321
88322-20040
Head, Cooler Compressor Cylinder
[09.1979 - 07.1983] LS110 RR |
88322-20040 |
— | ||
|
88321A
|
88321A
88305-20070
Plate Sub-Assy, Valve
[09.1979 - 07.1983] LS110 FR |
88305-20070 |
— | ||
|
88321A
|
88321A
88306-20040
Plate Sub-Assy, Valve
[09.1979 - 07.1983] LS110 RR |
88306-20040 |
— | ||
|
88321B
|
88321B
88307-20050
Reed Sub-Assy, Valve
[09.1979 - 07.1983] LS110 SMALL |
88307-20050 |
— | ||
|
88321B
|
88321B
88307-20060
Reed Sub-Assy, Valve
[09.1979 - 07.1983] LS110 LARGE |
88307-20060 |
— | ||
|
88321C
|
88321C
88343-20040
Reed, Suction Valve
[09.1979 - 07.1983] LS110 |
88343-20040 |
— | ||
|
88322
|
88322
88371-30310
Valve, Cooler Compressor Suction Service
[09.1979 - 07.1983] LS110 |
88371-30310 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[09.1979 - 07.1983] LS110,MS11# |
90099-08058 |
— | ||
|
88329
|
88329
88301-20050
Piston Sub-Assy, Cooler Compressor
[09.1979 - 07.1983] LS110 |
88301-20050 |
— | ||
|
88329B
|
88329B
88312-30250
Ball, Piston
[09.1979 - 07.1983] LS110,MS11# |
88312-30250 |
— | ||
|
88329C
|
88329C
88313-20070
Shoe, Piston
[09.1979 - 07.1983] LS110,MS11# |
88313-20070 |
— | ||
|
88329D
|
88329D
88317-20030
Ring, Compressor Piston Snap
[09.1979 - 07.1983] LS110 |
88317-20030 |
— | ||
|
88332
|
88332
88372-30320
Valve, Cooler Compressor Discharge Service
[09.1979 - 07.1983] LS110 |
88372-30320 |
— | ||
|
88360
|
88360
88360-30270
Seal Assy, Cooler Compressor Shaft
[09.1979 - 07.1983] LS110,MS11# |
88360-30270 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-30280
Seal Assy, Cooler Compressor Shaft
[09.1979 - 07.1983] LS110,MS11# |
88360-30280 |
— | ||
|
88364
|
88364
88366-20050
Bearing, Compressor Crankshaft, Front
[09.1979 - 07.1983] LS110 |
88366-20050 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[09.1979 - 07.1983] LS110,MS11#,RS110 |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[09.1979 - 07.1983] LS110,MS11#,RS110 |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-30260
Cap, Cooler Compressor Service Valve
[09.1979 - 07.1983] LS110,MS11#,RS110 |
88375-30260 |
— | ||
| replacement | |||||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[09.1979 - 07.1983] LS110,MS11#,RS110 |
88375-30270 |
— | ||
