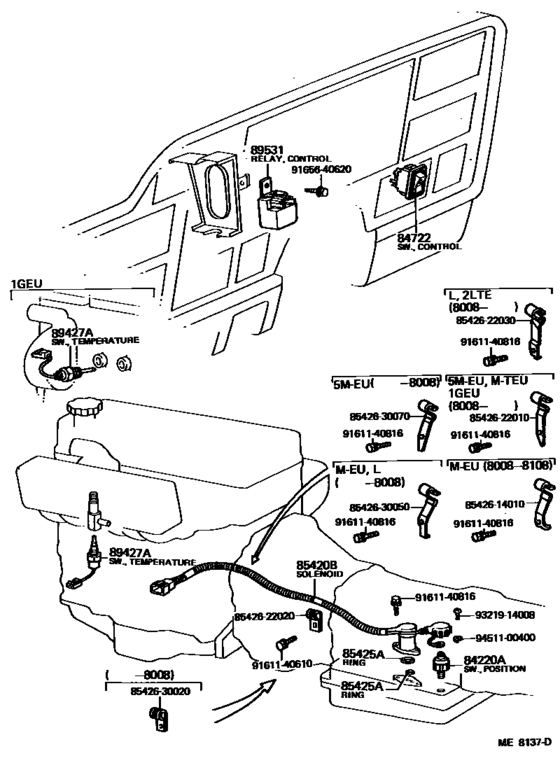

Overdrive & Electronic Controlled Transmission ([09.1979 - ] (7909- )ATM..DSL,EFI,TBO,TDE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Fuel Induction
- TDE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84220A
|
84220A
84220-30050
Switch Assy, Transmission Position Indicator
[09.1979 - 07.1983] GS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE) |
84220-30050 |
— | ||
|
84722
|
84722
84722-30040 Switch, Transmission ControlTRANSMISSION CONTROL [09.1979 - 07.1983] GS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE) |
84722-30040 |
US $59.26 |
||
|
85420B
|
85420B
85420-22040
Solenoid Assy, Transmission
[08.1981 - 07.1983] GS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE) |
85420-22040 |
— | ||
|
85425A
|
85425A
90301-11001 Ring, O (For Transmission Oil Filler Plug)[09.1979 - 07.1983] LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE) OD=11 |
90301-11001 |
US $2.56 |
||
|
85425A
|
85425A
90301-23001 Ring, O (For Transmission Solenoid)[09.1979 - 07.1983] LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE) OD=23.5 |
90301-23001 |
US $5.24 |
||
|
8542614010
|
8542614010
85426-14010
Clamp, Over Drive Solenoid
|
85426-14010 |
— | ||
|
8542622010
|
8542622010
85426-22010 Clamp, Over Drive Solenoid |
85426-22010 |
US $10.05 |
||
|
8542622020
|
8542622020
85426-22020 Clamp(For Clutch Tube) |
85426-22020 |
US $9.32 |
||
|
8542622030
|
8542622030
85426-22030 Clamp, Over Drive Solenoid |
85426-22030 |
US $9.03 |
||
|
8542630020
|
8542630020
85426-30020
Clamp, Over Drive Solenoid
|
85426-30020 |
— | ||
|
8542630050
|
8542630050
85426-30050
Clamp, Over Drive Solenoid
|
85426-30050 |
— | ||
|
8542630070
|
8542630070
85426-30070 Clamp, Over Drive Solenoid |
85426-30070 |
US $10.05 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
