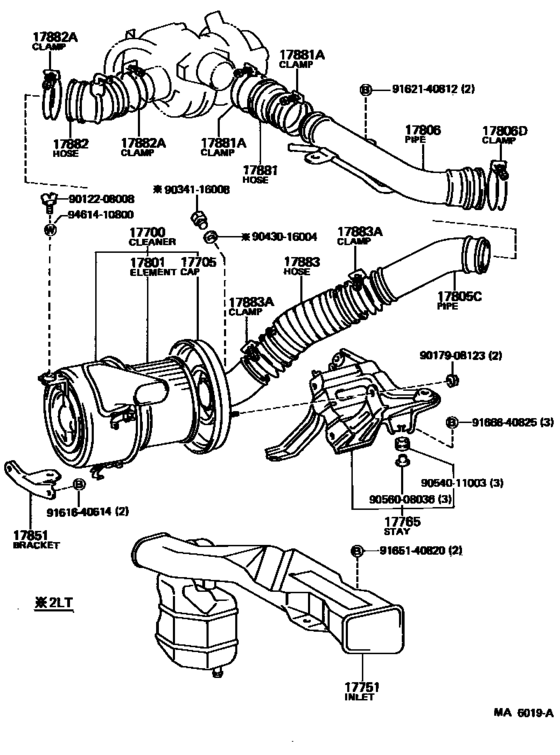

Air Cleaner ([08.1982 - ] (8208- )2LT#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-54170 Cleaner Assy, AirAIR [08.1982 - 07.1983] 2LT#..LS111 |
17700-54170 |
US $419.33 |
||
|
17705
|
17705
17705-54080
Cap Sub-Assy, Air Cleaner
[08.1982 - 07.1983] 2LT#..LS111 |
17705-54080 |
— | ||
|
17751
|
17751
53207-30110
Inlet, Air Cleaner, No.1
[08.1982 - 07.1983] 2LT#..LS111 |
53207-30110 |
— | ||
|
17765
|
17765
17706-54010
Stay, Air Cleaner, No.1
[08.1982 - 07.1983] 2LT#..LS111 |
17706-54010 |
— | ||
|
17801
|
17801
17801-54060 Element Sub-Assy, Air Cleaner Filter[08.1982 - 07.1983] 2LT#..LS111 |
17801-54060 |
from US $30.23 |
||
|
17805C
|
17805C
17885-54060
Pipe Sub-Assy, Air Cleaner, No.1
[08.1982 - 07.1983] 2LT#..LS111 |
17885-54060 |
— | ||
|
17806
|
17806
17103-54010
Pipe Sub-Assy, Air Cleaner, No.2
[08.1982 - 07.1983] 2LT#..LS111 |
17103-54010 |
— | ||
|
17806D
|
17806D
96111-10710 Clamp(For Air Cleaner Inlet Duct)[08.1982 - 07.1983] 2LT#..LS111 |
96111-10710 |
from US $2.56 |
||
|
17851
|
17851
17851-54010
Bracket, Air Cleaner Support
[08.1982 - 07.1983] 2LT#..LS111 |
17851-54010 |
— | ||
|
17881
|
17881
17349-54010 Hose, Air Cleaner, No.1[08.1982 - 07.1983] 2LT#..LS111 |
17349-54010 |
from US $26.69 |
||
|
17881A
|
17881A
96111-10630 Clamp, Hose[08.1982 - 07.1983] 2LT#..LS111 |
96111-10630 |
US $3.68 |
||
|
17882
|
17882
17881-54150 Hose, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1982 - 07.1983] 2LT#..LS111 |
17881-54150 |
US $67.70 |
||
|
17882A
|
17882A
96111-10690 Clamp, Hose[08.1982 - 07.1983] 2LT#..LS111 |
96111-10690 |
from US $2.56 |
||
|
17883
|
17883
17882-54110
Hose, Air Cleaner, No.3
[08.1982 - 07.1983] 2LT#..LS111 |
17882-54110 |
— | ||
|
17883A
|
17883A
96111-10690 Clamp, Hose[08.1982 - 07.1983] 2LT#..LS111 |
96111-10690 |
from US $2.56 |
||
|
9012208008
|
9012208008
90122-08008 New Genuine Part |
90122-08008 |
US $8.15 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9034116008
|
9034116008
90341-16008 Plug(For Oil Heater Thermostat Hole) |
90341-16008 |
US $6.81 |
||
|
9043016004
|
9043016004
90430-16004 Gasket, Union Bolt |
90430-16004 |
US $0.55 |
||
|
9054011003
|
9054011003
90540-11003 New Genuine Part |
90540-11003 |
US $4.08 |
||
|
9056008036
|
9056008036
90560-08036 New Genuine Part |
90560-08036 |
US $4.66 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.60 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9166640825
|
9166640825
91666-40825
New Genuine Part
|
91666-40825 |
— | ||
| replacement | |||||
|
9166640825
|
9166640825
91661-60825 New Genuine Part |
91661-60825 |
US $2.40 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
