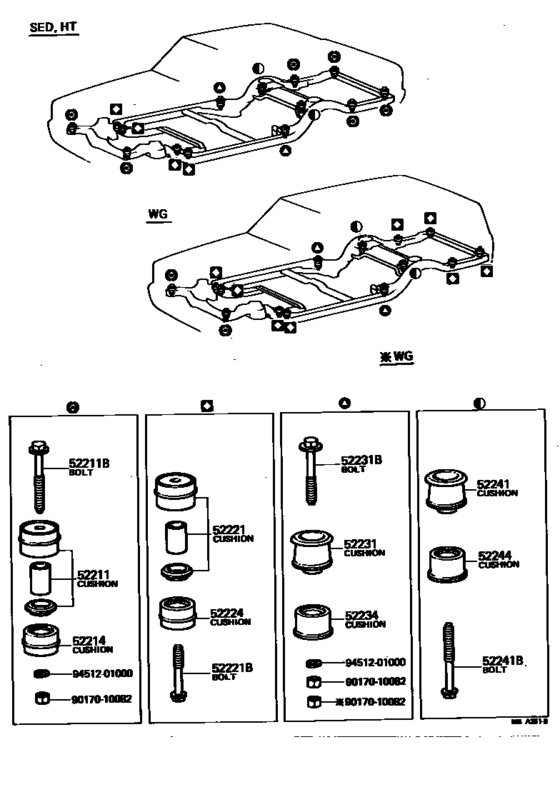

Body Mounting ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112,RS110) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52211
|
52211
52201-30905
Cushion, Body Mounting, No.1 Upper
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
52201-30905 |
— | ||
|
52211B
|
52211B
90119-10018 Bolt(For Body Mounting No.1 Cushion)[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
90119-10018 |
US $3.32 |
||
|
52214
|
52214
52023-30030 Cushion Sub-Assy, Body Mounting, Rear Lower[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
52023-30030 |
US $12 |
||
|
52221
|
52221
52201-30905
Cushion, Body Mounting, No.1 Upper
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..HT,SED,V |
52201-30905 |
— | ||
|
52221B
|
52221B
90119-10001
Bolt(For Body Mount No.2 Cushion)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..HT,SED,V |
90119-10001 |
— | ||
|
52224
|
52224
52023-30030 Cushion Sub-Assy, Body Mounting, Rear Lower[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..HT,SED,V |
52023-30030 |
US $12 |
||
|
52231
|
52231
52203-30040
Cushion Sub-Assy, Body Mounting, Rear Upper
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110 |
52203-30040 |
— | ||
|
52231B
|
52231B
90119-10147
Bolt(For Body Mount No.3 Cushion)
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
90119-10147 |
— | ||
|
52234
|
52234
52204-30020
Cushion Sub-Assy, Body Mounting, Rear Lower
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110 |
52204-30020 |
— | ||
|
52241
|
52241
52203-30040
Cushion Sub-Assy, Body Mounting, Rear Upper
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110 |
52203-30040 |
— | ||
|
52241B
|
52241B
90119-10146
Bolt(For Body Mount No.4 Cushion)
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110 |
90119-10146 |
— | ||
|
52244
|
52244
52204-30020
Cushion Sub-Assy, Body Mounting, Rear Lower
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110 |
52204-30020 |
— | ||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
