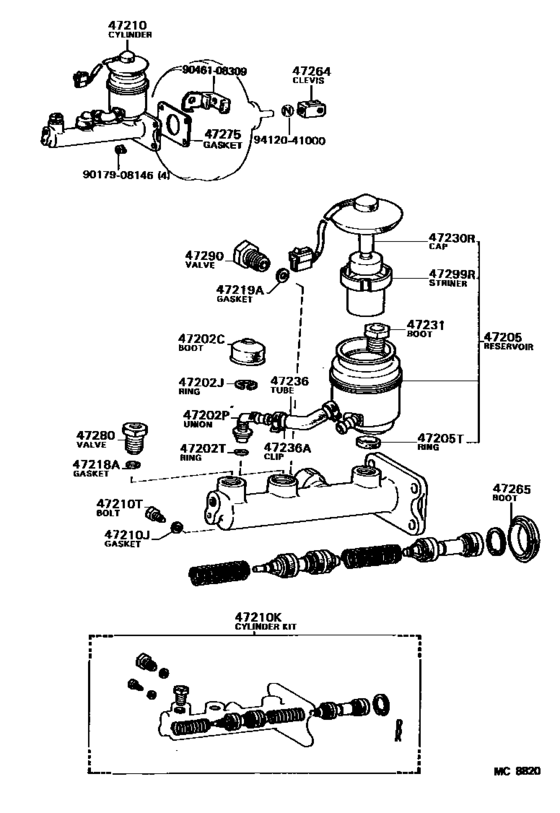

Brake Master Cylinder ([10.1980 - ] (8010- )TBO,TD,TDE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47202C
|
47202C
47265-20060
Boot, Reservoir, No.1(For Brake Master Cylinder Side)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
47265-20060 |
— | ||
|
47202J
|
47202J
96151-02000 Ring, Snap (For Low Coast Shift Control Valve)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
96151-02000 |
US $1.27 |
||
|
47202P
|
47202P
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[08.1982 - 07.1983] LS111 |
90407-10004 |
— | ||
|
47202T
|
47202T
90301-14001 Ring, O(For Clutch Master Cylinder Union)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90301-14001 |
US $3.67 |
||
|
47205
|
47205
47202-30080
Reservoir Set, Brake Master Cylinder(For Rear Side)
[08.1982 - 07.1983] LS111 |
47202-30080 |
— | ||
|
47205T
|
47205T
90562-18151
Ring(For Clutch Master Cylinder Reservoir)
[08.1982 - 07.1983] LS111 |
90562-18151 |
— | ||
|
47210
|
47210
47201-30230 Cylinder Assy, Master, W/o BoosterMASTER, W/O BOOSTER [08.1982 - 07.1983] LS111..SDX,SPE |
47201-30230 |
US $438.26 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90430-06104 |
from US $1.60 |
||
|
47210K
|
47210K
04493-30140
Cylinder Kit, Brake Master
[08.1982 - 07.1983] LS111..SDX,SPE |
04493-30140 |
— | ||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90109-06008 |
US $0.44 |
||
|
47218A
|
47218A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[09.1979 - 07.1983] GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
90430-09253 |
— | ||
|
47219A
|
47219A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90430-09253 |
— | ||
|
47230R
|
47230R
84460-20051
Cap Assy, Brake Master Cylinder Reservoir Filler
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
84460-20051 |
— | ||
| replacement | |||||
|
47230R
|
47230R
84460-12011 Cap Assy, Brake Master Cylinder Reservoir Filler[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
84460-12011 |
US $75.48 |
||
|
47231
|
47231
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[08.1982 - 07.1983] LS111 |
47231-20010 |
US $4.08 |
||
|
47236
|
47236
47234-14010 Tube, Reservoir, No.1[08.1982 - 07.1983] LS111 |
47234-14010 |
US $9.09 |
||
|
47236A
|
47236A
90467-16001
Clamp, Oil Cooler Hose
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90467-16001 |
— | ||
| replacement | |||||
|
47236A
|
47236A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
96133-41500 |
from US $2.24 |
||
|
47264
|
47264
47264-20020
Clevis, Master Cylinder Push Rod
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
47264-20020 |
— | ||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
47265-20050 |
from US $4.80 |
||
|
47275
|
47275
47275-22010 Gasket, Brake Master Cylinder[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
47275-22010 |
US $4 |
||
|
47280
|
47280
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[08.1982 - 07.1983] LS111 |
47280-14010 |
— | ||
|
47290
|
47290
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[08.1982 - 07.1983] LS111 |
47280-14010 |
— | ||
|
47299R
|
47299R
47299-14010
Strainer, Brake Master Cylinder Reservoir
[07.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 |
47299-14010 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9046108309
|
9046108309
90461-08309 Clamp(For Brake Master Cylinder) |
90461-08309 |
US $7.13 |
||
| replacement | |||||
|
9046108309
|
9046108309
90461-08202 Clamp(For Brake Master Cylinder) |
90461-08202 |
US $8.30 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
