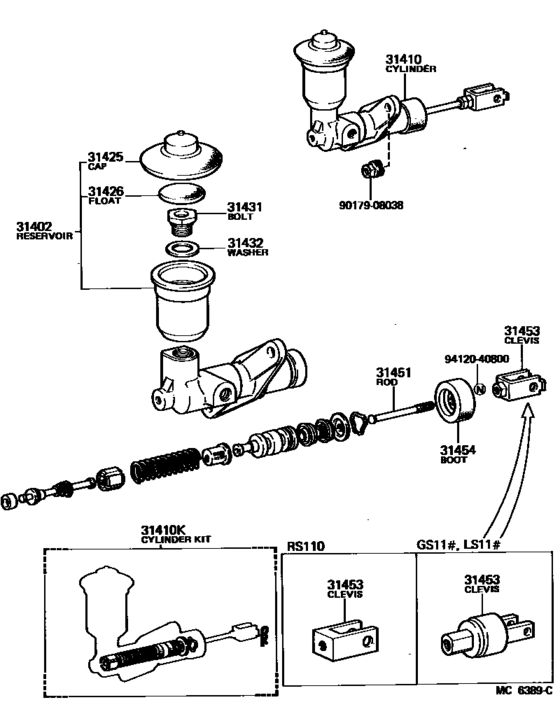

Clutch Master Cylinder ([09.1979 - ] (7909- )MTM) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31402
|
31402
31402-30030 Reservoir Sub-Assy, Clutch Master Cylinder[08.1981 - 07.1983] GS11#,LS11#..MTM |
31402-30030 |
US $29.88 |
||
|
31410
|
31410
31410-35110 Cylinder Assy, Clutch Master[08.1981 - 07.1983] GS11#,LS11#..MTM |
31410-35110 |
US $243.15 |
||
| replacement | |||||
|
31410
|
31410
31410-35231 Cylinder Assy, Clutch Master[08.1981 - 07.1983] GS11#,LS11#..MTM |
31410-35231 |
US $170.35 |
||
|
31410K
|
31410K
04311-30080
Cylinder Kit, Clutch Master
[09.1979 - 07.1983] GS11#,LS11#..MTM |
04311-30080 |
— | ||
| replacement | |||||
|
31410K
|
31410K
04311-14013 Cylinder Kit, Clutch Master[09.1979 - 07.1983] GS11#,LS11#..MTM |
04311-14013 |
from US $43.62 |
||
|
31425
|
31425
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM |
47230-20040 |
from US $9.05 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM |
31426-30011 |
— | ||
|
31431
|
31431
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM |
47231-30010 |
US $4.48 |
||
|
31432
|
31432
47232-30010 Washer, Reservoir Set Bolt[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM |
47232-30010 |
US $3.52 |
||
|
31451
|
31451
31451-30060
Rod, Clutch Master Cylinder Push
[09.1979 - 07.1983] GS11#,LS11#..MTM |
31451-30060 |
— | ||
|
31453
|
31453
31404-30040 Clevis, Clutch Master Cylinder Push Rod[09.1979 - 07.1983] GS11#,LS11#..MTM |
31404-30040 |
US $53 |
||
|
31454
|
31454
31454-14010 Boot, Clutch Master Cylinder[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110..MTM |
31454-14010 |
US $4.19 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
