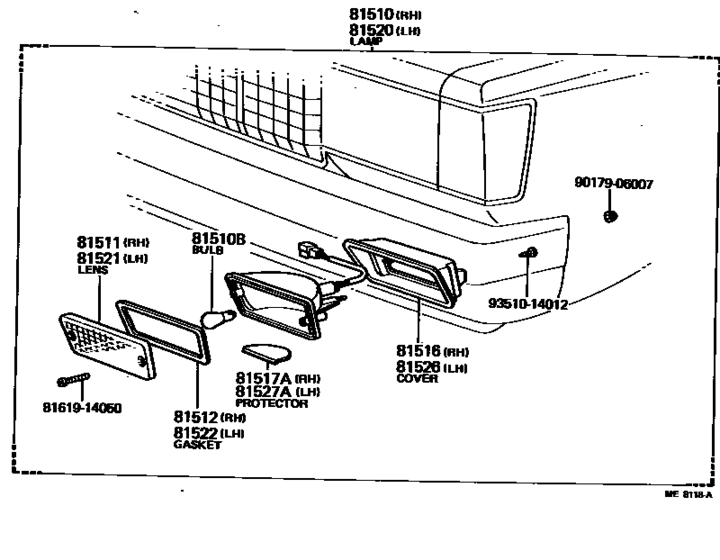

Front Turn Signal Lamp ([08.1981 - ] (7909-8108)LS110,MS110..HT ; (8108- )GS11#,LS 11#,MS110,117,RS110) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81510
|
81510
81510-39346
Lamp Assy, Front Turn Signal, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81510-39346 |
— | ||
| replacement | |||||
|
81510
|
81510
81510-39395
Lamp Assy, Front Turn Signal, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81510-39395 |
— | ||
|
81510B
|
81510B
99132-11230
Bulb, Fog Lamp
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81510B
|
81510B
00234-01073 Bulb[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81511
|
81511
81511-14170
Lens, Front Turn Signal Lamp, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81511-14170 |
— | ||
|
81512
|
81512
81512-14150
Gasket, Front Turn Signal Lamp Lens, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81512-14150 |
— | ||
|
81516
|
81516
81516-30240
Rim, Front Turn Signal Lamp, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81516-30240 |
— | ||
|
81517A
|
81517A
81517-14170
Protector, Front Turn Signal Lamp, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81517-14170 |
— | ||
|
81520
|
81520
81520-39346
Lamp Assy, Front Turn Signal, Lh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81520-39346 |
— | ||
| replacement | |||||
|
81520
|
81520
81520-39395
Lamp Assy, Front Turn Signal, Lh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81520-39395 |
— | ||
|
81521
|
81521
81521-14170
Lens, Front Turn Signal Lamp, Lh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81521-14170 |
— | ||
|
81522
|
81522
81512-14150
Gasket, Front Turn Signal Lamp Lens, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81512-14150 |
— | ||
|
81526
|
81526
81526-30400
Rim, Front Turn Signal Lamp, Lh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81526-30400 |
— | ||
|
81527A
|
81527A
81517-14170
Protector, Front Turn Signal Lamp, Rh
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110 |
81517-14170 |
— | ||
|
8161914050
|
8161914050
81619-14050 New Genuine Part |
81619-14050 |
US $3.52 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
