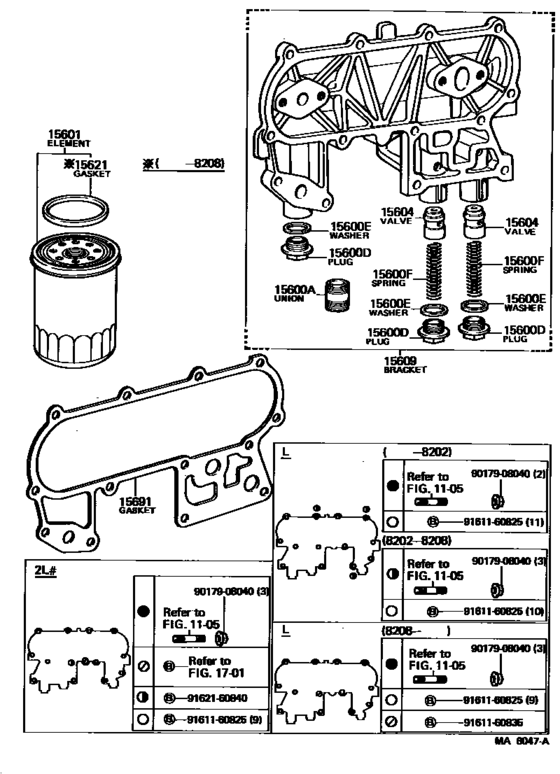

Oil Filter ([09.1979 - ] (7909- )L,2LT#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
15116-54010
Screw, Oil Cooler Set
[09.1979 - 07.1983] L,2LT#..LS11# |
15116-54010 |
— | ||
|
15600D
|
15600D
90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)[06.1982 - 07.1983] L,2LT#..LS11# |
90341-18015 |
US $2.62 |
||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[09.1979 - 07.1983] L,2LT#..LS11# |
90430-18001 |
US $2.72 |
||
|
15600F
|
15600F
90501-16026 Spring, Compression(For Oil Filter)[09.1979 - 07.1983] L,2LT#..LS11# |
90501-16026 |
from US $1.14 |
||
|
15601
|
15601
15600-41010
Filter Assy, Oil
[09.1979 - 07.1983] L,2LT#..LS11# |
15600-41010 |
— | ||
| replacement | |||||
|
15601
|
15601
90915-40002 Filter Assy, Oil[09.1979 - 07.1983] L,2LT#..LS11# |
90915-40002 |
from US $18.49 |
||
|
15604
|
15604
15131-54010 Valve, Oil Pump Relief[09.1979 - 07.1983] L,2LT#..LS11# |
15131-54010 |
from US $4.82 |
||
|
15609
|
15609
15609-54030 Bracket Sub-Assy, Oil Filter[08.1982 - 07.1983] 2LT#..LS111 |
15609-54030 |
US $346.53 |
||
| replacements | |||||
|
15609
|
15609
15609-54031
Bracket Sub-Assy, Oil Filter
[08.1982 - 07.1983] 2LT#..LS111 |
15609-54031 |
— | ||
|
15609
|
15609
32924-26012 Clamp, Oil Cooler Tube, No.2[08.1982 - 07.1983] 2LT#..LS111 |
32924-26012 |
US $22.57 |
||
|
15609
|
15609
91611-60835 Bolt(For Clutch Release Cylinder Setting)[08.1982 - 07.1983] 2LT#..LS111 |
91611-60835 |
from US $1.44 |
||
|
15691
|
15691
15691-54012
Gasket, Oil Filter
[03.1982 - 07.1983] L,2LT#..LS11# |
15691-54012 |
— | ||
| replacement | |||||
|
15691
|
15691
15692-54040 Gasket, Oil Filter[03.1982 - 07.1983] L,2LT#..LS11# |
15692-54040 |
US $18.70 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.09 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9162160840
|
9162160840
91621-60840 Bolt(For Rocker Support Set) |
91621-60840 |
from US $0.96 |
||
