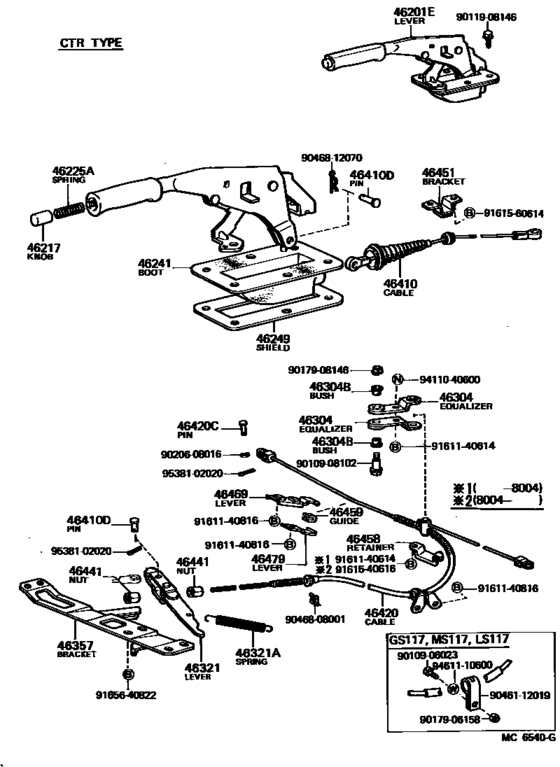

Parking Brake & Cable ([09.1979 - ] (7909- )LS117..DLX ; (7909- )GS11#,LS110,1 11,MS11#,RS110..4F,5F) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-30050-03 Lever Sub-Assy, Parking BrakePARKING BRAKE [08.1981 - 07.1983] GS11#,LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SAL,SDX,SPE) GRAY,GRAY,TRIM1# |
46201-30050-03 |
US $126.67 |
||
| replacement | |||||
|
46201E
|
46201E
46201-30051-03 Lever Sub-Assy, Parking Brake[08.1981 - 07.1983] GS11#,LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SAL,SDX,SPE) GRAY,GRAY,TRIM1# |
46201-30051-03 |
US $126.67 |
||
|
46201E
|
46201E
46201-30050-05 Lever Sub-Assy, Parking BrakePARKING BRAKE [08.1981 - 07.1983] GS11#,LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SAL,SDX,SPE) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
46201-30050-05 |
US $126.67 |
||
| replacement | |||||
|
46201E
|
46201E
46201-30051-01 Pedal Sub-assy, Parking Brake[08.1981 - 07.1983] GS11#,LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SAL,SDX,SPE) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
46201-30051-01 |
US $126.67 |
||
|
46217
|
46217
46217-10020-03 Knob, Parking Brake Release RodPARKING BRAKE RELEASE ROD [08.1981 - 07.1983] LS117..DLX GRAY,GRAY,TRIM1#; GS11#,LS110,111,MS110,117,RS110..4F,5F GRAY,GRAY,TRIM1# |
46217-10020-03 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-10020-11 Knob, Parking Brake Release Rod (Black)[08.1981 - 07.1983] LS117..DLX GRAY,GRAY,TRIM1#; GS11#,LS110,111,MS110,117,RS110..4F,5F GRAY,GRAY,TRIM1# |
46217-10020-11 |
from US $4 |
||
|
46217
|
46217
46217-10020-15 Knob, Parking Brake Release Rod[08.1981 - 07.1983] LS117..DLX BEIGE,BEIGE,TRIM4#; GS11#,LS110,111,MS110,117,RS110..4F,5F BEIGE,BEIGE,TRIM4# |
46217-10020-15 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-10020-11 Knob, Parking Brake Release Rod (Black)[08.1981 - 07.1983] LS117..DLX BEIGE,BEIGE,TRIM4#; GS11#,LS110,111,MS110,117,RS110..4F,5F BEIGE,BEIGE,TRIM4# |
46217-10020-11 |
from US $4 |
||
|
46225A
|
46225A
90501-10745 Spring, Compression(For Parking Brake Pawl Rod)[09.1979 - 07.1983] LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
90501-10745 |
from US $2.56 |
||
|
46241
|
46241
46241-30010 Boot, Parking Brake Lever[09.1979 - 07.1983] LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
46241-30010 |
US $9.03 |
||
|
46249
|
46249
46249-30010 Shield, Parking Brake Hole[09.1979 - 07.1983] LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
46249-30010 |
US $4.95 |
||
|
46304
|
46304
46341-31010 Equalizer Sub-Assy, Parking Brake[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
46341-31010 |
from US $11.84 |
||
|
46304B
|
46304B
90385-12029 Bush(For Parking Brake Equalizer)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90385-12029 |
from US $4.47 |
||
|
46321
|
46321
46301-30150
Lever, Parking Brake Intermediate
[09.1979 - 07.1983] LS117..DLX; GS110,LS110,111,MS110,117,RS110..(4F,5F)..(BTP,CTE,DLX,SDX,SPE,STD) |
46301-30150 |
— | ||
|
46321A
|
46321A
90506-20010 Spring, Tensiion(For Parking Brake Intermediate Lever)TENSION(FOR INTERMEDIATE LEVER) [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F |
90506-20010 |
US $7.28 |
||
|
46357
|
46357
46359-30080
Bracket, Lever Support
[09.1979 - 07.1983] LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
46359-30080 |
— | ||
|
46410
|
46410
46410-30220 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [09.1979 - 07.1983] LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
46410-30220 |
US $35.24 |
||
|
46410D
|
46410D
90240-08021 Pin(For Parking Brake Front Cable)[09.1979 - 07.1983] LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F HANDLE X CABLE |
90240-08021 |
US $2.33 |
||
|
46410D
|
46410D
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F LEVER X CABLE |
90240-08028 |
US $2.56 |
||
|
46420
|
46420
46420-30110
Cable Assy, Parking Brake, No.2
[08.1981 - 07.1983] GS110,LS110,111,MS110,RS110..(3FC,3HC,4F,4FC,4HC,5F)..(BTP,CTE,DLX,SDX,SPE,STD)..( CBR,DSL,EFI,LPG,TD,TDE) |
46420-30110 |
— | ||
|
46420C
|
46420C
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90240-08028 |
US $2.56 |
||
|
46441
|
46441
46441-30030 Nut, Wire Adjusting, No.1[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
46441-30030 |
US $4.16 |
||
|
46451
|
46451
46451-30071
Bracket, Cable Support
[09.1979 - 07.1983] RS110..BTP,DLX;GS11#,LS11#,MS11# |
46451-30071 |
— | ||
|
46458
|
46458
46458-30042 Retainer, Cable[04.1980 - 07.1983] GS110,LS110,111,MS110,112,RS110 |
46458-30042 |
US $5.39 |
||
|
46459
|
46459
46459-30010
Guide, Cable
[05.1982 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
46459-30010 |
— | ||
|
46469
|
46469
46469-31011 Lever, Cable Guide Support[10.1980 - 07.1983] LS11# |
46469-31011 |
US $8.59 |
||
|
46479
|
46479
46479-30010 Lever, Cable Guide Sapport, No.2[08.1981 - 07.1983] LS111,117;LS110..4F,4H,4HC,5F;LS110..4FC..(CTE,DLX,SDX,SPE); GS11#,MS11#..CBR,EFI,TBO,TWC |
46479-30010 |
US $8.59 |
||
|
9010906023
|
9010906023
90109-06023 New Genuine Part |
90109-06023 |
US $1.46 |
||
|
9010908102
|
9010908102
90109-08102 NUT |
90109-08102 |
from US $1.38 |
||
|
9011908146
|
9011908146
90119-08146
Bolt(For Parking Brake Setting)
|
90119-08146 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9020608016
|
9020608016
90206-08016 Washer, Wave (For Low Speed Connecting Rod) |
90206-08016 |
US $3.04 |
||
|
9046112019
|
9046112019
90461-12019 New Genuine Part |
90461-12019 |
US $7.13 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9046812070
|
9046812070
90468-12070 Clip, Rear Seat Center Armrest |
90468-12070 |
US $0.52 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161540616
|
9161540616
91615-40616 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40616 |
US $1.89 |
||
| replacement | |||||
|
9161540616
|
9161540616
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161560614
|
9161560614
91615-60614
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91615-60614 |
— | ||
| replacement | |||||
|
9161560614
|
9161560614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.35 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $0.96 |
||
