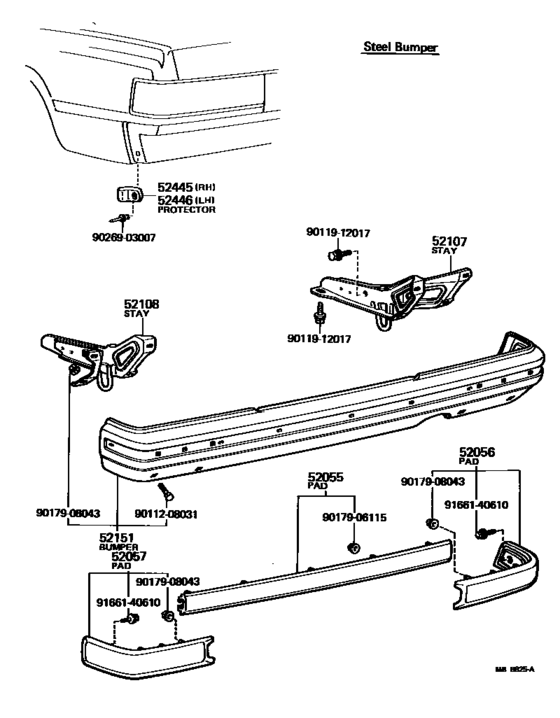

Rear Bumper & Bumper Stay ([10.1980 - ] (8010- )GS110,LS110,111,MS110,RS110..HT,SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52055
|
52055
52057-39015 Pad Sub-Assy, Rear BumperREAR BUMPER [08.1981 - 07.1983] GS110,LS110,111,MS110,RS110..HT,SED |
52057-39015 |
US $113.57 |
||
|
52056
|
52056
52055-39045 Pad Sub-Assy, Rear Bumper, RhREAR BUMPER, RH [08.1981 - 07.1983] GS110,LS110,111,MS110,RS110..HT,SED |
52055-39045 |
US $99.01 |
||
|
52057
|
52057
52056-39015 Pad Sub-Assy, Rear Bumper, LhREAR BUMPER, LH [08.1981 - 07.1983] GS110,LS110,111,MS110,RS110..HT,SED |
52056-39015 |
US $99.01 |
||
|
52107
|
52107
52015-30020
Stay Sub-Assy, Rear Bumper, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,RS110..SED |
52015-30020 |
— | ||
|
52108
|
52108
52016-30020
Stay Sub-Assy, Rear Bumper, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,RS110..SED |
52016-30020 |
— | ||
|
52151
|
52151
52151-39106 Bumper Assy, RearREAR [08.1981 - 07.1983] GS110,LS110,111,MS110,RS110..HT,SED |
52151-39106 |
US $1,026.48 |
||
| replacement | |||||
|
52151
|
52151
52151-30161 Bumper Assy, Rear[08.1981 - 07.1983] GS110,LS110,111,MS110,RS110..HT,SED |
52151-30161 |
US $1,108.02 |
||
|
52445
|
52445
52541-30030 Protector, Front Bumper, Rh[09.1979 - 07.1983] GS110,LS110,111,MS110,RS110..HT,SED |
52541-30030 |
US $11.50 |
||
|
52446
|
52446
52541-30030 Protector, Front Bumper, Rh[09.1979 - 07.1983] GS110,LS110,111,MS110,RS110..HT,SED |
52541-30030 |
US $11.50 |
||
|
9011208031
|
9011208031
90112-08031 Bolt, Round Head Square Neck(For Front Bumper) |
90112-08031 |
US $5.12 |
||
|
9011912017
|
9011912017
90119-12017 New Genuine Part |
90119-12017 |
US $4.08 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017908043
|
9017908043
90179-08043
New Genuine Part
|
90179-08043 |
— | ||
| replacement | |||||
|
9017908043
|
9017908043
90179-08074 New Genuine Part |
90179-08074 |
US $3.20 |
||
|
9026903007
|
9026903007
90269-03007 RIVET |
90269-03007 |
from US $1.02 |
||
|
9166140610
|
9166140610
91661-40610 New Genuine Part |
91661-40610 |
US $1.75 |
||
