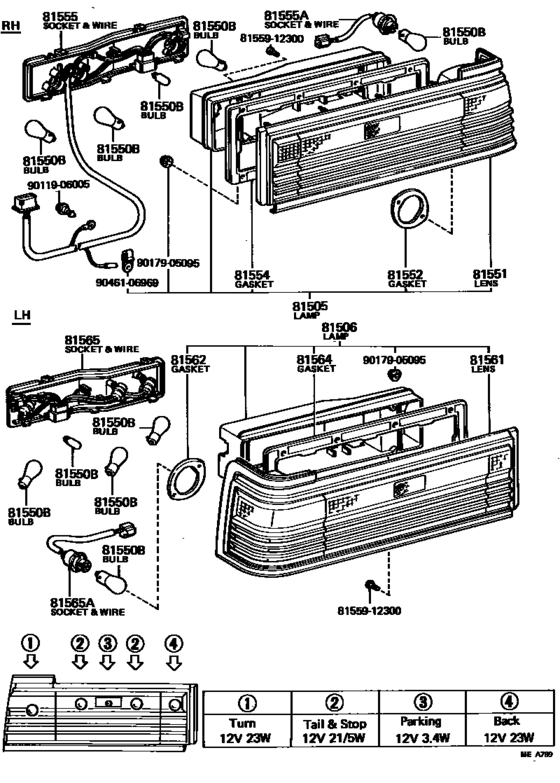

Rear Combination Lamp ([08.1981 - ] (8108- )SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-39076 Lamp Sub-Assy, Rear Combination, RhREAR COMBINATION, RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX) |
81505-39076 |
US $435.34 |
||
|
81506
|
81506
81506-39056 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX) |
81506-39056 |
US $435.34 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-12034 Bulb, Position Indicator Lamp[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
81550B
|
81550B
00234-00158 Bulb, Position Indicator Lamp[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-30451 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX) |
81551-30451 |
US $251.89 |
||
|
81552
|
81552
81552-30450
Gasket, Rear Combination Lamp Lens, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81552-30450 |
— | ||
|
81554
|
81554
81554-30451 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81554-30451 |
US $17.33 |
||
|
81555
|
81555
81555-30451 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81555-30451 |
US $91.73 |
||
|
81555A
|
81555A
81558-30450
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81558-30450 |
— | ||
|
81561
|
81561
81561-30431 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX) |
81561-30431 |
US $251.89 |
||
|
81562
|
81562
81552-30450
Gasket, Rear Combination Lamp Lens, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81552-30450 |
— | ||
|
81564
|
81564
81554-30451 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81554-30451 |
US $17.33 |
||
|
81565
|
81565
81565-30431
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81565-30431 |
— | ||
|
81565A
|
81565A
81558-30450
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
81558-30450 |
— | ||
|
8155912300
|
8155912300
81559-12300
Bracket,foglamp,rh No.2
|
81559-12300 |
— | ||
| replacement | |||||
|
8155912300
|
8155912300
81279-91D01
Bracket,foglamp,rh No.2
|
81279-91D01 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9046106969
|
9046106969
90461-06969 New Genuine Part |
90461-06969 |
US $2.33 |
||
