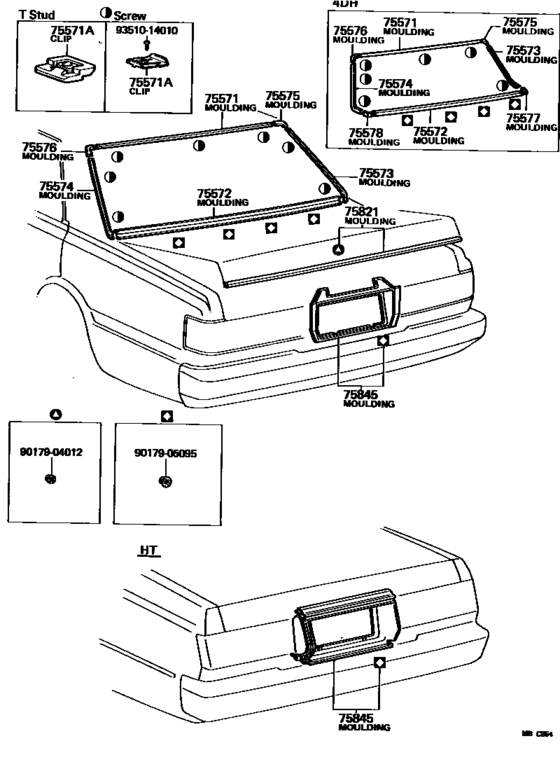

Rear Moulding ([08.1981 - ] (8108- )HT,SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75571
|
75571
75571-30150
Moulding, Back Window, Outside Upper
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
75571-30150 |
— | ||
|
75571A
|
75571A
75545-12031 Clip, Windshield Moulding Set, No.1WINDSHIELD MOULDING SET, NO.1 [06.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED T STUD |
75545-12031 |
US $3.84 |
||
|
75571A
|
75571A
75545-30040 Clip, Windshield Moulding Set, No.1WINDSHIELD MOULDING SET, NO.1 [09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED SCREW |
75545-30040 |
US $3.20 |
||
|
75572
|
75572
75507-30110
Moulding, Back Window, Lower
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
75507-30110 |
— | ||
|
75573
|
75573
75573-30160
Moulding, Back Window Side, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
75573-30160 |
— | ||
|
75574
|
75574
75574-30160
Moulding, Back Window Side, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
75574-30160 |
— | ||
|
75575
|
75575
75581-30080
Moulding, Back Window Corner, Upper Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
75581-30080 |
— | ||
|
75576
|
75576
75582-30080
Moulding, Back Window Corner, Upper Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED |
75582-30080 |
— | ||
|
75821
|
75821
75801-39055 Moulding, Luggage Compartment Door BackLUGGAGE COMPARTMENT DOOR BACK [08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX) |
75801-39055 |
US $81.54 |
||
|
75845
|
75845
75082-39065 Moulding, Body Lower Back Panel, CenterBODY LOWER BACK PANEL, CENTER [08.1981 - 07.1983] GS110,LS110,111,MS110,112..SED..(ROY,SAL,SDX) |
75082-39065 |
US $266.45 |
||
|
9017904012
|
9017904012
90179-04012 New Genuine Part |
90179-04012 |
US $2.33 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
