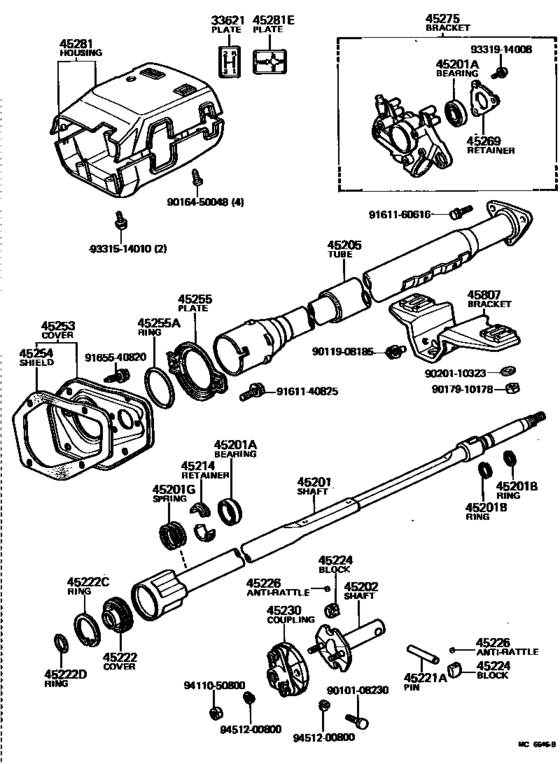

Steering Column & Shaft ([09.1979 - ] (7909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201
|
45201
45210-22050 Shaft Sub-Assy, Steering Main[08.1981 - 07.1983] MS11#..(4F,4FC,4HC,5F)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/TILT STEERING; GS11#,LS11#,MS110..4FC,4HC,5F W/TILT STEERING |
45210-22050 |
US $216.65 |
||
|
45201
|
45201
45210-30040 Shaft Sub-Assy, Steering MainSTEERING MAIN [09.1979 - 07.1983] GS110,LS110,MS110..WG..DLX; GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
45210-30040 |
US $216.94 |
||
|
45201A
|
45201A
90363-18001 Bearing(For Steering Main Shaft)[08.1981 - 07.1983] MS11#..(4F,4FC,4HC,5F)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/TILT STEERING,UPR; GS11#,LS11#,MS110..4FC,4HC,5F W/TILT STEERING,UPR |
90363-18001 |
US $23.41 |
||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[09.1979 - 07.1983] GS110,LS110,MS110..WG..DLX UPR; GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) UPR |
90363-18038 |
US $10.56 |
||
|
45201A
|
45201A
90363-28001 Bearing(For Steering Main Shaft)[08.1981 - 07.1983] MS11#..(4F,4FC,4HC,5F)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/TILT STEERING,CTR; GS11#,LS11#,MS110..4FC,4HC,5F W/TILT STEERING,CTR |
90363-28001 |
US $24.11 |
||
|
45201A
|
45201A
90369-43027
Bearing(For Steering Main Shaft)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 LWR |
90369-43027 |
— | ||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 厚さ＝１．２０,T=1.15-1.25 |
90520-17042 |
from US $0.82 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[09.1979 - 07.1983] GS110,LS110,MS110..WG..DLX 厚さ＝１．３５−１．４５,T=1.35-1.45; GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) 厚さ＝１．３５−１．４５,T=1.35-1.45 |
90520-17196 |
US $2.97 |
||
|
45201G
|
45201G
90501-29388
Spring, Compression(For Steering Main Shaft)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 LWR |
90501-29388 |
— | ||
|
45201G
|
45201G
90501-45011 Spring, Compression(For Steering Main Shaft)[08.1981 - 07.1983] MS11#..(4F,4FC,4HC,5F)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/TILT STEERING,UPR; GS11#,LS11#,MS110..4FC,4HC,5F W/TILT STEERING,UPR |
90501-45011 |
US $8.39 |
||
|
45202
|
45202
45220-30040 Shaft Sub-Assy, Steering Intermediate[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45220-30040 |
US $47.47 |
||
|
45205
|
45205
45870-30100
Tube Sub-Assy, Steering Column
[08.1981 - 07.1983] MS11#..(4F,4FC,4HC,5F)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/TILT STEERING; GS11#,LS11#,MS110..4FC,4HC,5F W/TILT STEERING |
45870-30100 |
— | ||
|
45205
|
45205
45870-30110
Tube Sub-Assy, Steering Column
[09.1979 - 07.1983] GS110,LS110,MS110..WG..DLX; GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
45870-30110 |
— | ||
|
45214
|
45214
45214-30030
Retainer, Main Shaft Spring
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45214-30030 |
— | ||
|
45221A
|
45221A
90250-10059 Pin(For Steering Intermediate Shaft)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90250-10059 |
US $9.05 |
||
|
45222
|
45222
45222-30030 Cover, Steering Gear Dust[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45222-30030 |
from US $10.10 |
||
|
45222C
|
45222C
90521-52003 Ring, Hole Snap(For Dust Cover)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90521-52003 |
US $3.32 |
||
|
45222D
|
45222D
90301-23054 Ring, O(For Dust Cover)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90301-23054 |
from US $3.22 |
||
|
45224
|
45224
45224-30040 Block, Bearing(For Steering Flexible Coupling)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １５．９７−１６．００,L=15.97-16.00 |
45224-30040 |
from US $8.74 |
||
|
45224
|
45224
45225-30040 Block, Bearing(For Steering Flexible Coupling)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 １６．００−１６．０３,L=16.00-16.03 |
45225-30040 |
from US $9.73 |
||
|
45226
|
45226
45226-30020
Anti-Rattle(For Steering Flexible Coupling)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45226-30020 |
— | ||
| replacement | |||||
|
45226
|
45226
45226-30021 Anti-Rattle(For Steering Flexible Coupling)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45226-30021 |
from US $4.95 |
||
|
45230
|
45230
45230-30100
Coupling Assy, Flexible
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45230-30100 |
— | ||
|
45253
|
45253
45025-30060
Cover, Steering Column Hole
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..3FC,4F,4FC,5F |
45025-30060 |
— | ||
|
45254
|
45254
45254-30070
Shield, Steering Column Hole
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45254-30070 |
— | ||
|
45255
|
45255
45255-30040 Plate, Steering Column Hole Cover[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45255-30040 |
US $8.30 |
||
|
45255A
|
45255A
90301-60122 Grommet Or Ring, O(For Steering Column Clamp)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
90301-60122 |
US $8.91 |
||
|
45269
|
45269
45269-35010 Retainer, Main Shaft Bearing[04.1981 - 07.1983] GS110..WG;GS110..ATM..DLX;LS110,MS110..DLX; GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
45269-35010 |
US $6.41 |
||
|
45275
|
45275
45280-30280 Bracket, Steering Column, UpperSTEERING COLUMN, UPPER [08.1981 - 07.1983] MS11#..(4F,4FC,4HC,5F)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/TILT STEERING; GS11#,LS11#,MS110..4FC,4HC,5F W/TILT STEERING |
45280-30280 |
US $238.78 |
||
|
45275
|
45275
45280-30290
Bracket, Steering Column, Upper
[08.1981 - 07.1983] GS110,LS110..WG..(4FC,5F)..DLX; GS11#,LS11#,MS110,117,RS110..(HT,SED,V)..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SDX,SPE,STD ) |
45280-30290 |
— | ||
|
45281
|
45281
45286-30981-03
Housing, Steering Column
[08.1982 - 07.1983] LS111..(SDX,SPE)..TD GRAY,GRAY,TRIM1# |
45286-30981-03 |
— | ||
|
45281
|
45281
45286-30981-05
Housing, Steering Column
[08.1982 - 07.1983] LS111..(SDX,SPE)..TD BEIGE,BEIGE,TRIM4# |
45286-30981-05 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-30981-C0 Housing, Steering Column[08.1982 - 07.1983] LS111..(SDX,SPE)..TD BEIGE,BEIGE,TRIM4# |
45286-30981-C0 |
US $63.04 |
||
|
45281
|
45281
45286-30982-03
Housing, Steering Column
[08.1981 - 07.1983] GS11#,LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SAL,SDX,SPE) GRAY,W/TILT STEERING,GRAY,TRIM1# |
45286-30982-03 |
— | ||
|
45281
|
45281
45286-30982-05 Housing, Steering ColumnSTEERING COLUMN [08.1981 - 07.1983] GS11#,LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SAL,SDX,SPE) GREIGE,W/TILT STEERING,BEIGE,TRIM4# |
45286-30982-05 |
US $60.28 |
||
| replacement | |||||
|
45281
|
45281
45286-30982-C0 Housing, Steering Column[08.1981 - 07.1983] GS11#,LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SAL,SDX,SPE) GREIGE,W/TILT STEERING,BEIGE,TRIM4# |
45286-30982-C0 |
US $63.04 |
||
|
45281E
|
45281E
45283-22010 Plate, Safety Caution[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
45283-22010 |
US $2.40 |
||
|
45807
|
45807
45082-30010
Bracket Sub-Assy, Steering Column Upper Support
[08.1981 - 07.1983] MS11#..(4F,4FC,4HC,5F)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/TILT STEERING; GS11#,LS11#,MS110..4FC,4HC,5F W/TILT STEERING |
45082-30010 |
— | ||
|
45807
|
45807
45807-30100
Bracket Sub-Assy, Steering Column Upper Support
[09.1979 - 07.1983] GS110,LS110,MS110..WG..DLX; GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
45807-30100 |
— | ||
|
9010108230
|
9010108230
90101-08230
Bolt, Hexagon(For Steering Flexible Copling Set)
|
90101-08230 |
— | ||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017910178
|
9017910178
90179-10178 New Genuine Part |
90179-10178 |
US $1.75 |
||
|
9020110323
|
9020110323
90201-10323 New Genuine Part |
90201-10323 |
US $6.26 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.88 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
