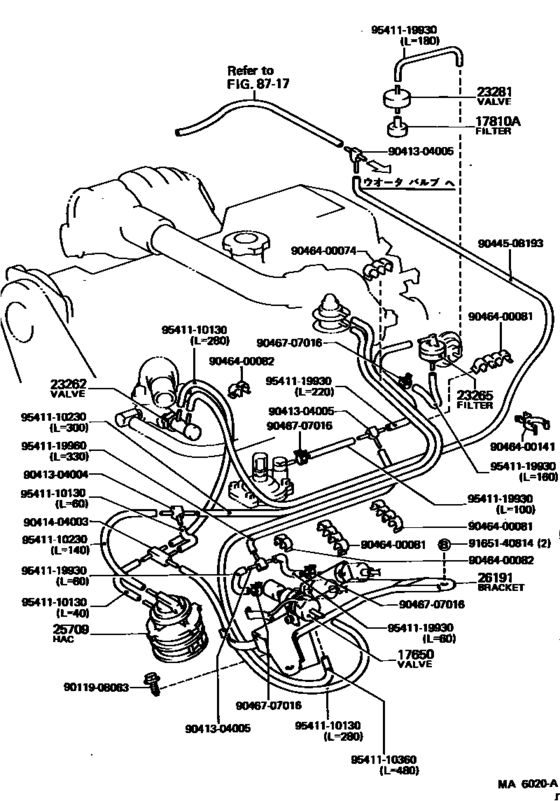

Vacuum Piping ([08.1982 - ] (8208- )2LT) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
89570-30070 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1982 - 07.1983] 2LT..LS111 |
89570-30070 |
US $199.47 |
||
|
17810A
|
17810A
90925-06006
Filter Assy, Air
[08.1981 - 07.1983] 2LT..LS111; 5MGEU,MTEU..MS110,112 |
90925-06006 |
— | ||
|
23262
|
23262
25820-34020 Valve, Bimetal Vacuum Switching, No.1[08.1982 - 07.1983] 2LT..LS111 |
25820-34020 |
US $77.17 |
||
| replacement | |||||
|
23262
|
23262
25820-13020 Valve, Bimetal Vacuum Switching, No.1[08.1982 - 07.1983] 2LT..LS111 |
25820-13020 |
US $88.80 |
||
|
23265
|
23265
90917-11009
Filter, Gas, No.1
[08.1982 - 07.1983] 2LT#..LS111 |
90917-11009 |
— | ||
|
23281
|
23281
90925-01015
Valve, Vacuum Transmitting, No.1
[08.1982 - 07.1983] 2LT..LS111 |
90925-01015 |
— | ||
| replacement | |||||
|
23281
|
23281
90925-01099
Valve, Vacuum Transmitting, No.1
[08.1982 - 07.1983] 2LT..LS111 |
90925-01099 |
— | ||
|
25709
|
25709
25709-37010 Valve Sub-Assy, High Altitude Compensator[08.1982 - 07.1983] 2LT..LS111 |
25709-37010 |
US $206.75 |
||
|
26191
|
26191
26191-54010
Bracket, Intake Air Control Valve
[08.1982 - 07.1983] 2LT..LS111 |
26191-54010 |
— | ||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9041404003
|
9041404003
90414-04003 New Genuine Part |
90414-04003 |
US $7.28 |
||
|
9044508193
|
9044508193
90445-08193 Hose, Ed Monitor GageED MONITOR GAGE |
90445-08193 |
US $24.32 |
||
| replacement | |||||
|
9044508193
|
9044508193
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92006 |
US $30.55 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400141
|
9046400141
90464-00141 New Genuine Part |
90464-00141 |
US $2.62 |
||
|
9046707016
|
9046707016
90467-07016
Clip, Hose Fuel(For Injection Pump)
|
90467-07016 |
— | ||
| replacement | |||||
|
9046707016
|
9046707016
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $1.92 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110360
|
9541110360
95411-10360
Hose (For Idle Up Device)
|
95411-10360 |
— | ||
| replacement | |||||
|
9541110360
|
9541110360
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
