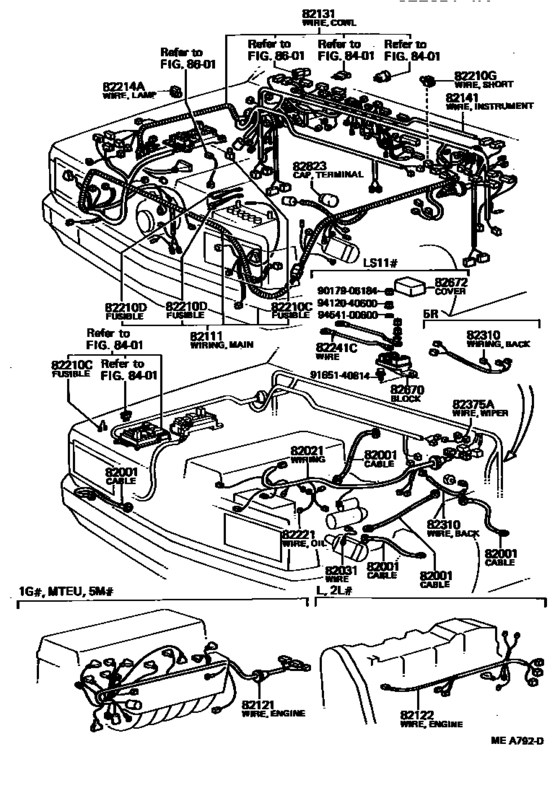

Wiring & Clamp ([08.1981 - ] (8108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-30320
Wire, Engine Room Main
[08.1982 - 07.1983] LS111..TD |
82111-30320 |
— | ||
|
82122
|
82122
82122-30010
Wire, Engine, No.2
[08.1981 - 07.1983] LS11#..DSL,TD |
82122-30010 |
— | ||
|
82131
|
82131
82131-30510
Wire, Cowl
[08.1982 - 07.1983] LS111..(SDX,SPE)..TD |
82131-30510 |
— | ||
|
82141
|
82141
82141-30040
Wire, Instrument Panel
[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110..(3FC,3HC,4F,4H,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD) |
82141-30040 |
— | ||
|
82210C
|
82210C
90982-08110 Fusible Link[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN |
90982-08110 |
US $7.28 |
||
|
82210C
|
82210C
90982-08112 Fusible Link[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 L=110,0.3,PINK |
90982-08112 |
US $10.05 |
||
|
82210C
|
82210C
90982-08127 Fusible Link[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 L=110,0.85,RED |
90982-08127 |
US $7.28 |
||
|
82210C
|
82210C
90982-08128 Fusible Link[08.1982 - 07.1983] LS111 L=110,1.0,YELLOW |
90982-08128 |
US $7.28 |
||
|
82210C
|
82210C
90982-08130 Fusible Link[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN |
90982-08130 |
US $3.35 |
||
|
82210D
|
82210D
90982-08181 Fusible Link[08.1981 - 07.1983] LS11# 1.25B & 2L |
90982-08181 |
US $19.51 |
||
|
82210D
|
82210D
90982-08182 Fusible Link[10.1980 - 07.1983] GS11#,LS11#,MS11#,RS110 0.5G,0.5G & 2L |
90982-08182 |
US $25.92 |
||
|
82214A
|
82214A
82214-30070
Wire, Lamp
[08.1981 - 07.1983] GS110,LS110,111..CTE,DLX,SDX,SPE |
82214-30070 |
— | ||
|
82241C
|
82241C
82241-30170
Wire, Relay
[08.1981 - 07.1983] LS11# |
82241-30170 |
— | ||
|
82310
|
82310
82310-30300
Wiring Assy, To Back Up Lamp Switch
[08.1981 - 07.1983] GS11#,LS11#,MS110,117..4F,5F |
82310-30300 |
— | ||
|
82670
|
82670
82671-30040 Block Assy, Junction, No.1JUNCTION, NO.1 [08.1981 - 07.1983] LS11# |
82671-30040 |
US $23.59 |
||
|
82672
|
82672
82672-30020
Cover, Junktion Block
[08.1981 - 07.1983] LS11# |
82672-30020 |
— | ||
|
9017906184
|
9017906184
90179-06184 New Genuine Part |
90179-06184 |
US $1.16 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9454100600
|
9454100600
94541-00600 New Genuine Part |
94541-00600 |
US $5.39 |
||
