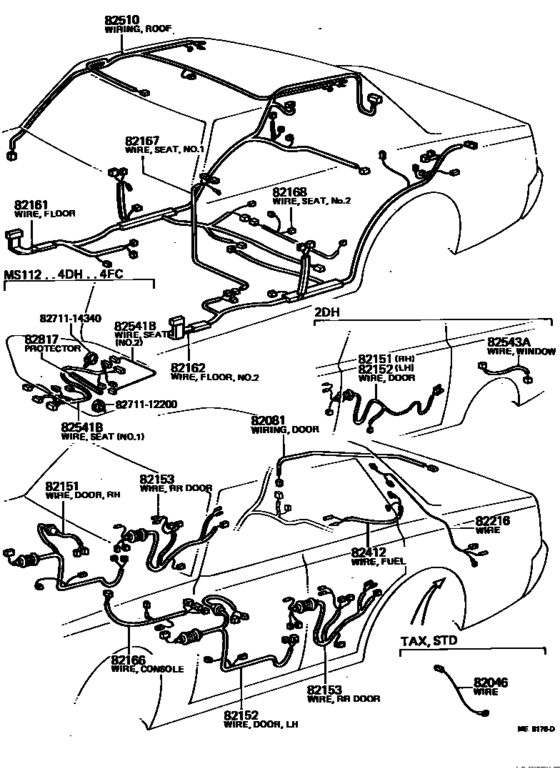

Wiring & Clamp ([09.1979 - ] (7909- )HT,SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82081
|
82081
82081-30050
Wiring Assy, Door Lock
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,T BO,TD,TDE,TWC) |
82081-30050 |
— | ||
|
82151
|
82151
82151-30020
Wire, Front Door, Rh
[10.1981 - 01.1983] GS110,LS110,111,MS110,112..SED..(ROY,SAL,SDX) |
82151-30020 |
— | ||
|
82151
|
82151
82151-30080
Wire, Front Door, Rh
[01.1983 - 07.1983] GS110,LS110,111..SED..(SAL,SDX) |
82151-30080 |
— | ||
|
82152
|
82152
82152-30020 Wire, Front Door, Lh[08.1981 - 07.1983] GS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX) |
82152-30020 |
US $115.02 |
||
| replacement | |||||
|
82152
|
82152
82152-30010
Wire, Front Door, Lh
[08.1981 - 07.1983] GS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX) |
82152-30010 |
— | ||
|
82153
|
82153
82153-30010
Wire, Rear Door, No.1
[08.1981 - 07.1983] GS110,LS110,111,MS110..SED..(SAL,SDX) |
82153-30010 |
— | ||
|
82161
|
82161
82161-30190
Wire, Floor
[08.1981 - 07.1983] GS110,LS110,111,MS110..SED..(SAL,SDX) |
82161-30190 |
— | ||
|
82162
|
82162
82161-30010
Wire, Floor, No.2
[08.1981 - 07.1983] GS110,LS110,111..SED..(SAL,SDX) |
82161-30010 |
— | ||
|
82166
|
82166
82166-30010
Wire, Console Box
[08.1981 - 07.1983] LS111;LS110..4FC..(SAL,SPE); GS110,MS110,112..(HT,SED)..(4F,4FC,5F)..(BTP,DLX,ROY,SAL,SDX,SPE) |
82166-30010 |
— | ||
|
82216
|
82216
82216-30130
Wire, Rear Window Defogger
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
82216-30130 |
— | ||
|
82510
|
82510
82510-30380
Wiring Assy, Roof
[08.1981 - 07.1983] GS110,LS110,111,MS110..SED..(DLX,SDX)..(CBR,DSL,EFI,TD,TDE) |
82510-30380 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8271114340
|
8271114340
82711-14340 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14340 |
US $8.74 |
||
