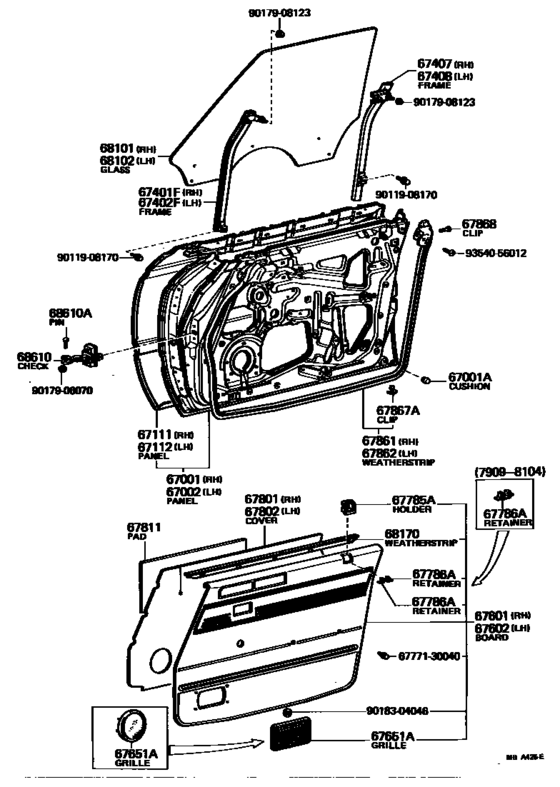

Front Door Panel & Glass ([09.1979 - ] (7909- )4DH) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SAL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Hard Top Type
- 4DH
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-30270
Panel Sub-Assy, Front Door, Rh
[08.1981 - 07.1983] GS110,LS110,111,MS110..4DH..(SAL,SPE) |
67001-30270 |
— | ||
| replacements | |||||
|
67001
|
67001
67001-30300 Panel Sub-Assy, Front Door, Rh[08.1981 - 07.1983] GS110,LS110,111,MS110..4DH..(SAL,SPE) |
67001-30300 |
US $901.26 |
||
|
67001
|
67001
82711-24040 Wire, Fuse To Fuse(for Combustion Heater)[08.1981 - 07.1983] GS110,LS110,111,MS110..4DH..(SAL,SPE) |
82711-24040 |
US $8.74 |
||
|
67001
|
67001
67001-30300 Panel Sub-Assy, Front Door, Rh[08.1981 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) W/KEY LAMP |
67001-30300 |
US $901.26 |
||
|
67001A
|
67001A
90541-09006 Cushion, Front Door Panel[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
90541-09006 |
from US $1.76 |
||
|
67002
|
67002
67002-30360 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH..(ROY,SAL,SPE) |
67002-30360 |
US $901.26 |
||
|
67111
|
67111
67111-30160
Panel, Front Door, Outer Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67111-30160 |
— | ||
|
67112
|
67112
67112-30220
Panel, Front Door, Outer Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67112-30220 |
— | ||
|
67401F
|
67401F
67401-30120
Frame Sub-Assy, Front Door, Front Lower Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67401-30120 |
— | ||
|
67402F
|
67402F
67402-30120
Frame Sub-Assy, Front Door, Front Lower Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67402-30120 |
— | ||
|
67407
|
67407
67403-30050
Frame Sub-Assy, Front Door, Rear Lower Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67403-30050 |
— | ||
|
67408
|
67408
67404-30050
Frame Sub-Assy, Front Door, Rear Lower Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67404-30050 |
— | ||
|
67601
|
67601
67610-3A300-03
Board Sub-Assy, Front Door Trim, Rh
[08.1981 - 07.1983] GS110,LS111,MS110..4DH..SAL *EXT,GRAY,GRAY,TRIM1# |
67610-3A300-03 |
— | ||
|
67601
|
67601
67610-3A300-04
Board Sub-Assy, Front Door Trim, Rh
[08.1981 - 07.1983] GS110,LS111,MS110..4DH..SAL *EXT,BLUE,BLUE,TRIM8# |
67610-3A300-04 |
— | ||
|
67601
|
67601
67610-3A300-05
Board Sub-Assy, Front Door Trim, Rh
[08.1981 - 07.1983] GS110,LS111,MS110..4DH..SAL *EXT,BEIGE,BEIGE,TRIM4# |
67610-3A300-05 |
— | ||
|
67602
|
67602
67620-3A330-03
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 07.1983] GS110,LS111,MS110..4DH..SAL *EXT,GRAY,GRAY,TRIM1# |
67620-3A330-03 |
— | ||
|
67602
|
67602
67620-3A330-04
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 07.1983] GS110,LS111,MS110..4DH..SAL *EXT,BLUE,BLUE,TRIM8# |
67620-3A330-04 |
— | ||
|
67602
|
67602
67620-3A330-05
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 07.1983] GS110,LS111,MS110..4DH..SAL *EXT,BEIGE,BEIGE,TRIM4# |
67620-3A330-05 |
— | ||
|
67651A
|
67651A
67609-30010-03 Grille, Speaker DoorSPEAKER DOOR [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE GRAY,GRAY,TRIM1# |
67609-30010-03 |
US $173.26 |
||
|
67651A
|
67651A
67609-30010-04 Grille, Speaker DoorSPEAKER DOOR [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
67609-30010-04 |
US $173.26 |
||
|
67651A
|
67651A
67609-30010-05 Grille, Speaker DoorSPEAKER DOOR [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE BEIGE,BEIGE,TRIM4# |
67609-30010-05 |
US $173.26 |
||
|
67785A
|
67785A
67785-30040-03 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D GRAY,GRAY,TRIM1# |
67785-30040-03 |
US $14.27 |
||
|
67785A
|
67785A
67785-30040-04 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D BLUE,BLUE,TRIM8# |
67785-30040-04 |
US $14.27 |
||
|
67785A
|
67785A
67785-30040-25 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D BEIGE,BEIGE,TRIM4# |
67785-30040-25 |
US $14.27 |
||
|
67786A
|
67786A
67786-30020 Retainer, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [04.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
67786-30020 |
US $3.35 |
||
|
67801
|
67801
67831-30200 Cover Sub-Assy, Front Door Hole, No.1 RhFRONT DOOR HOLE, NO.1 RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112..4DH..(ROY,SAL,SPE) |
67831-30200 |
US $13.40 |
||
|
67802
|
67802
67831-30200 Cover Sub-Assy, Front Door Hole, No.1 RhFRONT DOOR HOLE, NO.1 RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112..4DH..(ROY,SAL,SPE) |
67831-30200 |
US $13.40 |
||
|
67811
|
67811
67811-20050 Pad, Front Door SilencerFRONT DOOR SILENCER [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
67811-20050 |
US $18.93 |
||
| replacement | |||||
|
67811
|
67811
67811-12010 Pad, Front Door Silencer[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
67811-12010 |
US $18.54 |
||
|
67861
|
67861
67861-30120
Weatherstrip, Front Door, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67861-30120 |
— | ||
|
67862
|
67862
67862-30120
Weatherstrip, Front Door, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
67862-30120 |
— | ||
|
67867A
|
67867A
67868-30040 Retainer, Roof Side Rail, Rh[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
67868-30040 |
US $1.76 |
||
|
67868
|
67868
67869-30020 Clip, Headlamp Door Filler[09.1979 - 07.1983] LS110,111,MS110,112..HT |
67869-30020 |
US $3.52 |
||
|
68101
|
68101
68111-30260
Glass Sub-Assy, Front Door, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH *TT,T=4.0 |
68111-30260 |
— | ||
|
68101
|
68101
68111-30280
Glass Sub-Assy, Front Door, Rh
[08.1981 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) *TT,T=4.0,BRONZE |
68111-30280 |
— | ||
|
68102
|
68102
68112-30190
Glass Sub-Assy, Front Door, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH *TT,T=4.0 |
68112-30190 |
— | ||
|
68102
|
68102
68112-30210
Glass Sub-Assy, Front Door, Lh
[08.1981 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) *TT,T=4.0,BRONZE |
68112-30210 |
— | ||
|
68170
|
68170
68170-30140
Weatherstrip Assy, Front Door Glass, Inner
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH RH |
68170-30140 |
— | ||
|
68170
|
68170
68220-30080
Weatherstrip Assy, Front Door Glass, Inner
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH LH |
68220-30080 |
— | ||
|
68610
|
68610
68610-30010 Check Assy, Front DoorFRONT DOOR [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
68610-30010 |
US $57.08 |
||
|
68610A
|
68610A
68617-30010
Pin(For Front Door Check)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
68617-30010 |
— | ||
| replacement | |||||
|
68610A
|
68610A
68617-90K00 Pin(For Front Door Check)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
68617-90K00 |
US $3.20 |
||
|
6777130040
|
6777130040
67771-30040 Retainer(For Front Door Trim Board) |
67771-30040 |
US $3.14 |
||
|
9011908170
|
9011908170
90119-08170 New Genuine Part |
90119-08170 |
US $2.04 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $1.92 |
||
|
9354056012
|
9354056012
93540-56012 New Genuine Part |
93540-56012 |
US $0.44 |
||
