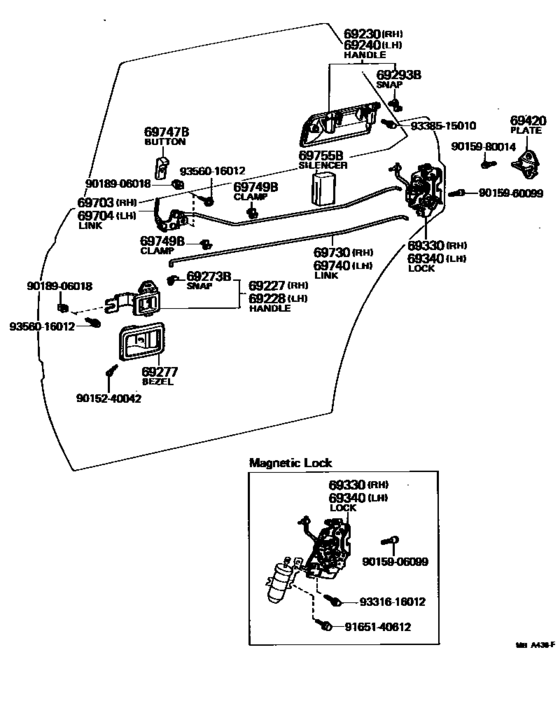

Rear Door Lock & Handle ([09.1979 - ] (7909- )4DH) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SAL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Hard Top Type
- 4DH
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69227
|
69227
69205-30010 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
69205-30010 |
US $22.28 |
||
|
69228
|
69228
69206-30010 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
69206-30010 |
US $22.28 |
||
|
69230
|
69230
69230-30060 Handle Assy, Rear Door Outside, RhREAR DOOR OUTSIDE, RH [09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
69230-30060 |
US $81.54 |
||
|
69240
|
69240
69240-30060
Handle Assy, Rear Door Outside, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
69240-30060 |
— | ||
|
69273B
|
69273B
69279-12020 Snap, Door Inside Handle Rod(For Front Door)DOOR INSIDE HANDLE LINK [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D RH |
69279-12020 |
US $3.20 |
||
|
69273B
|
69273B
69288-12010 Snap, Door Inside Handle Rod(For Front Door)DOOR INSIDE HANDLE LINK [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D LH |
69288-12010 |
US $3.20 |
||
|
69277
|
69277
69277-30030
Bezel, Front Door Inside Handle
[09.1979 - 07.1983] GS117,MS117..SDX; GS110,LS110,111,MS110,112,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..4D |
69277-30030 |
— | ||
|
69293B
|
69293B
69293-12010 Snap, Front Door Outside Handle[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 RH |
69293-12010 |
US $3.49 |
||
|
69293B
|
69293B
69293-12020 Snap, Front Door Outside Handle[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 LH |
69293-12020 |
US $4.16 |
||
|
69330
|
69330
69330-30151
Lock Assy, Rear Door, Rh
[09.1980 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) |
69330-30151 |
— | ||
|
69340
|
69340
69340-30151
Lock Assy, Rear Door, Lh
[09.1980 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) |
69340-30151 |
— | ||
|
69420
|
69420
69410-12040
Striker Assy, Back Door, Center
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
69410-12040 |
— | ||
| replacement | |||||
|
69420
|
69420
69410-90B02
Striker Assy, Back Door, Center
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
69410-90B02 |
— | ||
|
69703
|
69703
69770-30080
Link Sub-Assy, Rear Door Locking Control, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
69770-30080 |
— | ||
|
69704
|
69704
69780-30050
Link Sub-Assy, Rear Door Locking Control, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
69780-30050 |
— | ||
|
69730
|
69730
69713-30050
Link Assy, Rear Door Open Control, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
69713-30050 |
— | ||
|
69740
|
69740
69714-30050
Link Assy, Rear Door Open Control, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
69714-30050 |
— | ||
|
69747B
|
69747B
69741-30020-03
Button, Door Locking(For Front Door)
[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D GRAY,GRAY,TRIM1# |
69741-30020-03 |
— | ||
|
69747B
|
69747B
69741-30020-04 Button, Door Locking(For Front Door)DOOR LOCKING(FOR FRONT DOOR) [08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D BLUE,BLUE,TRIM8# |
69741-30020-04 |
US $5.10 |
||
| replacement | |||||
|
69747B
|
69747B
69741-30030-B0 Knob, Front Door Lock Control[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D BLUE,BLUE,TRIM8# |
69741-30030-B0 |
US $4.37 |
||
|
69747B
|
69747B
69741-30020-25
Button, Door Locking(For Front Door)
[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D BEIGE,BEIGE,TRIM4# |
69741-30020-25 |
— | ||
|
69749B
|
69749B
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[06.1982 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
69749-30020 |
US $4.48 |
||
|
69755B
|
69755B
69759-30021 Silencer, Back Door Lock Link[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
69759-30021 |
from US $3.55 |
||
|
9015240042
|
9015240042
90152-40042 New Genuine Part |
90152-40042 |
US $2.18 |
||
|
9015906099
|
9015906099
90159-06099
New Genuine Part
|
90159-06099 |
— | ||
|
9015960099
|
9015960099
90159-60099 New Genuine Part |
90159-60099 |
US $1.60 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $1.92 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331616012
|
9331616012
93316-16012
New Genuine Part
|
93316-16012 |
— | ||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9356016012
|
9356016012
93560-16012 New Genuine Part |
93560-16012 |
US $1.16 |
||
