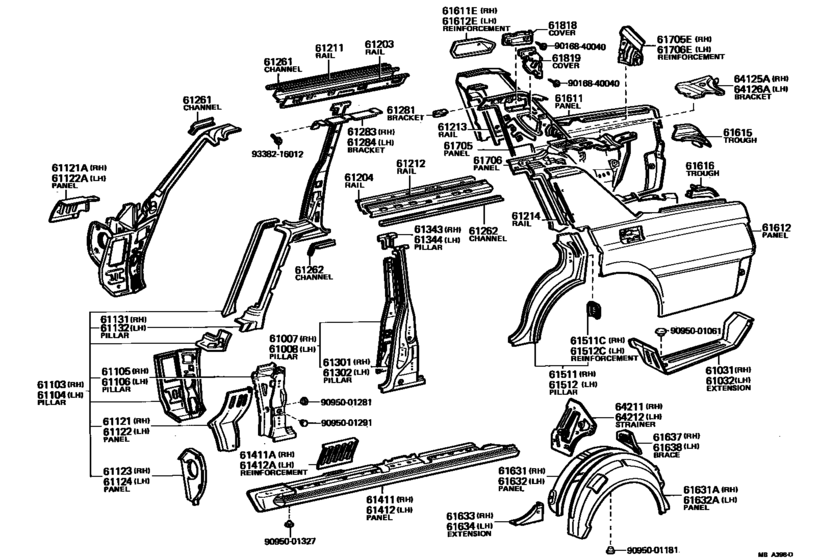

Side Member ([09.1979 - ] (7909- )4DH) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SAL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Hard Top Type
- 4DH
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61007
|
61007
61007-30910 Pillar Sub-Assy, Center, RhCENTER, RH [09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61007-30910 |
US $311.58 |
||
|
61008
|
61008
61008-30912 Pillar Sub-Assy, Center, LhCENTER, LH [09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61008-30912 |
US $311.58 |
||
|
61031
|
61031
61627-30060 Extension Sub-Assy, Quarter Panel, Rear Lower RhQUARTER PANEL, REAR LOWER RH [09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
61627-30060 |
US $35.96 |
||
|
61032
|
61032
61032-30020 Extension Sub-Assy, Quarter Panel, Rear Lower LhQUARTER PANEL, REAR LOWER LH [09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
61032-30020 |
US $42.22 |
||
|
61103
|
61103
61021-30090
Pillar Sub-Assy, Front Body, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..HT |
61021-30090 |
— | ||
|
61104
|
61104
61022-30090
Pillar Sub-Assy, Front Body, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..HT |
61022-30090 |
— | ||
|
61105
|
61105
61025-30900
Pillar Sub-Assy, Front Body Lower Outer, Rh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61025-30900 |
— | ||
|
61106
|
61106
61026-30900
Pillar Sub-Assy, Front Body Lower Outer, Lh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61026-30900 |
— | ||
|
61121
|
61121
61121-30090
Panel, Cowl Side, Outer Rh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61121-30090 |
— | ||
|
61121A
|
61121A
61125-30040
Panel, Cowl Side, Outer Upper Rh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61125-30040 |
— | ||
|
61122
|
61122
61122-30100
Panel, Cowl Side, Outer Lh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61122-30100 |
— | ||
|
61122A
|
61122A
61126-30030
Panel, Cowl Side, Outer Upper Lh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61126-30030 |
— | ||
|
61123
|
61123
61123-30080
Panel, Cowl Side Lower, Rh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61123-30080 |
— | ||
|
61124
|
61124
61124-30080
Panel, Cowl Side Lower, Lh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
61124-30080 |
— | ||
|
61131
|
61131
61131-30110
Pillar, Front Body, Upper Outer Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..HT |
61131-30110 |
— | ||
|
61132
|
61132
61132-30130
Pillar, Front Body, Upper Outer Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..HT |
61132-30130 |
— | ||
|
61203
|
61203
61231-30100 Rail Sub-Assy, Roof Side, Inner Rh[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61231-30100 |
US $51.11 |
||
| replacement | |||||
|
61203
|
61203
61231-30210
Rail Sub-Assy, Roof Side, Inner Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61231-30210 |
— | ||
|
61204
|
61204
61232-30100 Rail Sub-Assy, Roof Side, Inner Lh[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61232-30100 |
US $51.11 |
||
| replacement | |||||
|
61204
|
61204
61232-30210
Rail Sub-Assy, Roof Side, Inner Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61232-30210 |
— | ||
|
61211
|
61211
61211-30100
Rail, Roof Side, Outer Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61211-30100 |
— | ||
|
61212
|
61212
61212-30100
Rail, Roof Side, Outer Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61212-30100 |
— | ||
|
61213
|
61213
61215-30050
Rail, Roof Side, Outer Rear Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61215-30050 |
— | ||
|
61214
|
61214
61216-30050
Rail, Roof Side, Outer Rear Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61216-30050 |
— | ||
|
61261
|
61261
61261-30101
Channel, Roof Drip, Rh
[11.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH RR |
61261-30101 |
— | ||
|
61261
|
61261
61263-30071
Channel, Roof Drip, Rh
[11.1979 - 07.1983] LS110,111,MS110,112..HT FR |
61263-30071 |
— | ||
|
61262
|
61262
61262-30101
Channel, Roof Drip, Lh
[11.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH RR |
61262-30101 |
— | ||
|
61262
|
61262
61264-30061
Channel, Roof Drip, Lh
[11.1979 - 07.1983] GS110,LS110,111,MS110,112..HT FR |
61264-30061 |
— | ||
|
61301
|
61301
61311-30902
Pillar Sub-Assy, Center Body, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61311-30902 |
— | ||
|
61302
|
61302
61312-30902
Pillar Sub-Assy, Center Body, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61312-30902 |
— | ||
|
61343
|
61343
61341-30080
Pillar, Center Body, Inner Upper Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61341-30080 |
— | ||
|
61344
|
61344
61342-30070
Pillar, Center Body, Inner Upper Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61342-30070 |
— | ||
|
61411
|
61411
61411-30903 Panel, Rocker, Outer RhROCKER, OUTER RH [10.1980 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61411-30903 |
US $396.03 |
||
|
61411A
|
61411A
61418-30040
Reinforcement, Rocker Panel, No.1 Rh
[10.1980 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61418-30040 |
— | ||
|
61412
|
61412
61412-30903 Panel, Rocker, Outer LhROCKER, OUTER LH [10.1980 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61412-30903 |
US $396.03 |
||
|
61412A
|
61412A
61418-30040
Reinforcement, Rocker Panel, No.1 Rh
[10.1980 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61418-30040 |
— | ||
|
61511
|
61511
61511-30903 Pillar, Quarter Lock, RhQUARTER LOCK, RH [09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61511-30903 |
US $163.07 |
||
|
61511C
|
61511C
61503-30260
Reinforcement, Quarter Lock Pillar, Rh
[06.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61503-30260 |
— | ||
|
61512
|
61512
61512-30903 Pillar, Quarter Lock, LhQUARTER LOCK, LH [09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61512-30903 |
US $163.07 |
||
|
61512C
|
61512C
61504-30310
Reinforcement, Quarter Lock Pillar, Lh
[06.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61504-30310 |
— | ||
|
61611
|
61611
61611-30905 Panel, Quarter, Rh[08.1981 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61611-30905 |
US $757.12 |
||
|
61611E
|
61611E
61619-30020
Reinforcement, Quarter Panel, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61619-30020 |
— | ||
|
61612
|
61612
61612-30908 Panel, Quarter, Lh[08.1981 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61612-30908 |
US $757.12 |
||
|
61612E
|
61612E
61629-30020
Reinforcement, Quarter Panel, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61629-30020 |
— | ||
|
61615
|
61615
61621-30060 Trough, Luggage Compartment Opening, RhLUGGAGE COMPARTMENT OPENING, RH [09.1979 - 07.1983] GS110,LS110,111,MS110,112..HT |
61621-30060 |
US $39.17 |
||
|
61616
|
61616
61622-30050
Trough, Luggage Compartment Opening, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..HT |
61622-30050 |
— | ||
|
61631
|
61631
61603-30909
Panel, Quarter Wheel House, Rh
[08.1981 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
61603-30909 |
— | ||
|
61631A
|
61631A
61631-30070
Panel, Quarter Wheel House, Outer Rh
[09.1979 - 07.1983] GS11#,LS11#,MS11#..(HT,V,WG)..4D |
61631-30070 |
— | ||
|
61632
|
61632
61604-30907
Panel, Quarter Wheel House, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
61604-30907 |
— | ||
|
61632A
|
61632A
61632-30070
Panel, Quarter Wheel House, Outer Lh
[09.1979 - 07.1983] GS11#,LS11#,MS11#..(HT,V,WG)..4D |
61632-30070 |
— | ||
|
61633
|
61633
61797-30020
Extension, Wheel House, Rh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..(HT,SED)..4D |
61797-30020 |
— | ||
|
61634
|
61634
61798-30020
Extension, Wheel House, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..(HT,SED)..4D |
61798-30020 |
— | ||
|
61637
|
61637
61637-30070
Brace, Quarter Wheel House, Rh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61637-30070 |
— | ||
|
61638
|
61638
61638-30060
Brace, Quarter Wheel House, Lh
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..4D |
61638-30060 |
— | ||
|
61705
|
61705
61705-30150
Panel Sub-Assy, Roof Side, Inner Rh
[08.1981 - 07.1983] GS110,LS110,111,MS110..4DH |
61705-30150 |
— | ||
|
61705
|
61705
61705-30210
Panel Sub-Assy, Roof Side, Inner Rh
[08.1981 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) W/RR POWER SEAT |
61705-30210 |
— | ||
|
61705E
|
61705E
61766-30030
Reinforcement, Belt Anchor To Roof Side, Inner Rh
[08.1981 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) W/RR SEAT BELT 3POINT TYPE |
61766-30030 |
— | ||
|
61706
|
61706
61706-30140
Panel Sub-Assy, Roof Side, Inner Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
61706-30140 |
— | ||
|
61706
|
61706
61706-30180
Panel Sub-Assy, Roof Side, Inner Lh
[08.1981 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) W/RR POWER SEAT |
61706-30180 |
— | ||
|
61706E
|
61706E
61767-30020
Reinforcement, Belt Anchor To Roof Side, Inner Lh
[08.1981 - 07.1983] GS110,LS111,MS110,112..4DH..(ROY,SAL) W/RR SEAT BELT 3POINT TYPE |
61767-30020 |
— | ||
|
61818
|
61818
61815-30010
Cover, Roof Side, Inner Upper
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH RH |
61815-30010 |
— | ||
|
61818
|
61818
61816-30010
Cover, Roof Side, Inner Upper
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH LH |
61816-30010 |
— | ||
|
61819
|
61819
61817-30010
Cover, Roof Side, Inner Lower
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH RH |
61817-30010 |
— | ||
|
61819
|
61819
61818-30010
Cover, Roof Side, Inner Lower
[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH LH |
61818-30010 |
— | ||
|
64125A
|
64125A
64125-30030 Bracket, Upper Back Panel, Rh[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
64125-30030 |
US $12.38 |
||
|
64126A
|
64126A
64126-30030 Bracket, Upper Back Panel, Lh[09.1979 - 07.1983] GS110,LS110,111,MS110,112..4DH |
64126-30030 |
US $12.38 |
||
|
64211
|
64211
64211-30060 Strainer, Package Tray To Floor, RhPACKAGE TRAY TO FLOOR, RH [09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
64211-30060 |
US $28.68 |
||
|
64212
|
64212
64212-30050
Strainer, Package Tray To Floor, Lh
[09.1979 - 07.1983] GS110,LS110,111,MS110,112,RS110..HT,SED |
64212-30050 |
— | ||
|
9016840040
|
9016840040
90168-40040 New Genuine Part |
90168-40040 |
US $2.04 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.52 |
||
|
9095001281
|
9095001281
90950-01281 New Genuine Part |
90950-01281 |
US $8.59 |
||
|
9095001291
|
9095001291
90950-01291 New Genuine Part |
90950-01291 |
US $7.28 |
||
| replacement | |||||
|
9095001291
|
9095001291
90950-01423 New Genuine Part |
90950-01423 |
US $6.99 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9338216012
|
9338216012
93382-16012 New Genuine Part |
93382-16012 |
US $0.52 |
||
