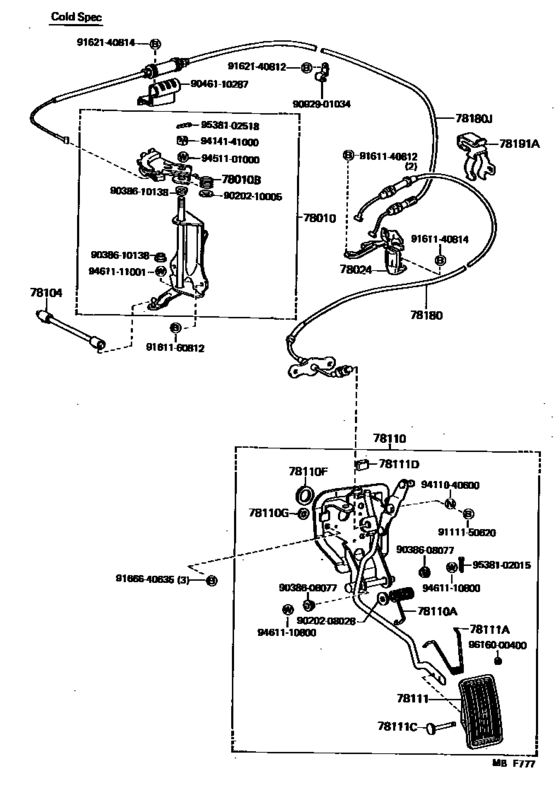

Accelerator Link ([08.1983 - ] (8308- )LS12#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78100-30490 Link, Accelerator[08.1983 - 08.1987] LS12#..DSL,TD |
78100-30490 |
US $63.48 |
||
|
78010B
|
78010B
90508-16010 Spring, Torsion (For Accelerator Link)[08.1983 - 08.1987] LS12#..DSL,TD |
90508-16010 |
US $5.39 |
||
|
78024
|
78024
78024-30041 Bracket Sub-Assy, Accelerator Control Cable[01.1984 - 08.1987] LS12# |
78024-30041 |
US $116.48 |
||
|
78104
|
78104
78104-30120 Rod Sub-Assy, Accelerator Connecting, No.2[08.1983 - 08.1987] LS12#..DSL,TD |
78104-30120 |
US $11.36 |
||
|
78110
|
78110
78120-30360 Rod Assy, Accelerator Pedal[01.1985 - 08.1987] LS12#,MS120..MTM |
78120-30360 |
US $68.14 |
||
| replacement | |||||
|
78110
|
78110
78120-30470 Rod Assy, Accelerator Pedal[01.1985 - 08.1987] LS12#,MS120..MTM |
78120-30470 |
US $132.50 |
||
|
78110
|
78110
78120-30440 Rod Assy, Accelerator Pedal[08.1986 - 08.1987] LS12#..MTM COLD SPEC |
78120-30440 |
US $74.26 |
||
|
78110
|
78110
78120-30450 Rod Assy, Accelerator Pedal[06.1984 - 08.1986] GS12#,LS12#..MTM COLD SPEC |
78120-30450 |
US $74.26 |
||
| replacement | |||||
|
78110
|
78110
78120-30490 Rod Assy, Accelerator Pedal[06.1984 - 08.1986] GS12#,LS12#..MTM COLD SPEC |
78120-30490 |
US $117.94 |
||
|
78110A
|
78110A
90508-23026 Spring (For Accelerator Pedal Rod)[08.1983 - 08.1987] LS120,MS120,YS120..MTM; GS120,121,LS12#,MS12#..ATM COLD SPEC; GS120,121,LS120,MS12#..ROY,SAL W/AUTO DRIVE,COLD SPEC |
90508-23026 |
US $3.93 |
||
|
78110A
|
78110A
90508-29011 Spring (For Accelerator Pedal Rod)[06.1984 - 08.1986] GS12#,LS12#,YS120..MTM COLD SPEC |
90508-29011 |
US $4.95 |
||
|
78110F
|
78110F
78129-30050
Seal, No.1 (For Accelerator Pedal Rod)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
78129-30050 |
— | ||
|
78110G
|
78110G
78139-30050
Seal, No.2 (For Accelerator Pedal Rod)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
78139-30050 |
— | ||
|
78111
|
78111
78111-12100 Pedal, Accelerator[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 COLD SPEC |
78111-12100 |
from US $20.50 |
||
|
78111
|
78111
78111-30080 Pedal, Accelerator[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
78111-30081 |
US $10.13 |
||
|
78111A
|
78111A
90508-16064 Spring (For Accelerator Pedal)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 COLD SPEC |
90508-16064 |
US $2.77 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 COLD SPEC |
90249-05001 |
US $3.32 |
||
|
78111D
|
78111D
78119-30050 Stopper (For Accelerator Pedal)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
78119-30050 |
US $2.77 |
||
|
78180
|
78180
78180-30570 Wire Assy, Accelerator[08.1983 - 08.1987] LS12# |
78180-30570 |
US $49.21 |
||
|
78180J
|
78180J
21960-54010 Wire Assy, Accelerator, No.2[08.1983 - 08.1987] LS12#..MTM |
21960-54010 |
US $122.30 |
||
|
78191A
|
78191A
78183-30070 Clamp, Accelerator Control Cable[08.1983 - 08.1987] GS121,LS12#,MS12#,YS120..DSL,LPG,SPC,TD,TDE,TWC |
78183-30070 |
US $12.67 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.60 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $4.30 |
||
|
9046110287
|
9046110287
90461-10287
Clamp (For Accelerator Wire Set)
|
90461-10287 |
— | ||
|
9092901034
|
9092901034
90929-01034 New Genuine Part |
90929-01034 |
US $4.66 |
||
|
9111150620
|
9111150620
91111-50620 New Genuine Part |
91111-50620 |
US $1.75 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $3.23 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.86 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.79 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
