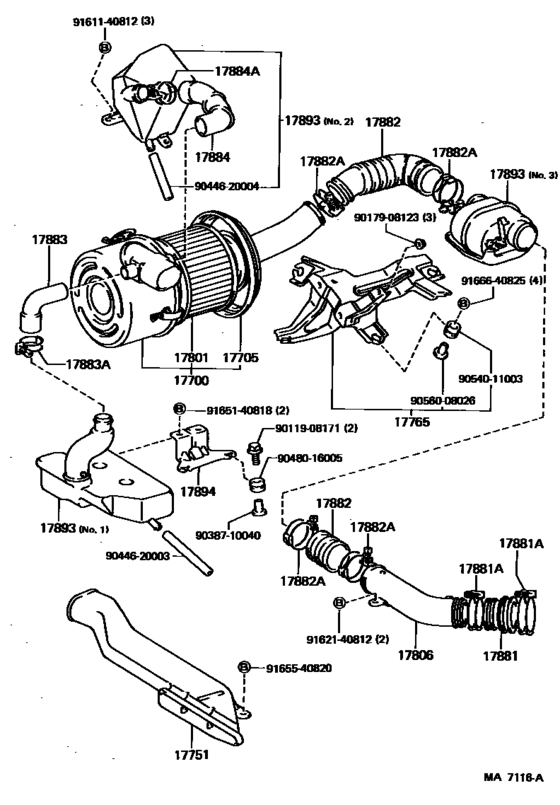

Air Cleaner ([08.1983 - ] (8308- )2L) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-54280 Cleaner Assy, Air[08.1983 - 08.1987] 2L,2LT..LS12# |
17700-54280 |
US $419.33 |
||
|
17705
|
17705
17705-54090
Cap Sub-Assy, Air Cleaner
[08.1983 - 08.1987] 2L,2LT..LS12# |
17705-54090 |
— | ||
|
17751
|
17751
53299-30120
Inlet, Air Cleaner, No.1
[08.1983 - 09.1985] 2L,2LT#..LS12#; 5MGEU,MPU..MS120,123; 1GGEU,1GEJ..GS121,126 |
53299-30120 |
— | ||
|
17765
|
17765
17706-54020 Stay, Air Cleaner, No.1[08.1983 - 08.1987] 2L,2LT#..LS12# |
17706-54020 |
US $71.78 |
||
|
17801
|
17801
17801-54060 Element Sub-Assy, Air Cleaner Filter[08.1983 - 08.1987] 2L,2LT#..LS12# |
17801-54060 |
from US $47.69 |
||
|
17806
|
17806
17113-54020
Pipe Sub-Assy, Air Cleaner, No.2
[08.1983 - 08.1987] 2L..LS12# |
17113-54020 |
— | ||
|
17881
|
17881
17349-54020
Hose, Air Cleaner, No.1
[08.1983 - 08.1987] 2L..LS12# |
17349-54020 |
— | ||
|
17881A
|
17881A
96111-10670 Clamp, Hose[08.1983 - 08.1987] 2L..LS12# FLANGE SIDE |
96111-10670 |
US $6.63 |
||
|
17881A
|
17881A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[08.1983 - 08.1987] 1GEJ..GS126 THROTTLE BODY SIDE; 2L..LS12# HOSE SIDE |
96111-10710 |
from US $2.87 |
||
|
17882
|
17882
17881-54220 Hose, Air Cleaner, No.2[08.1983 - 08.1987] 2L..LS12# AIR CLEANER SIDE |
17881-54220 |
US $72.36 |
||
|
17882
|
17882
17882-54140 Hose, Air Cleaner, No.2[08.1983 - 08.1987] 2L..LS12# INTAKE PIPE SIDE |
17882-54140 |
US $30.87 |
||
|
17882A
|
17882A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[08.1983 - 08.1987] 2L,2LT#..LS12#; 1GEU..GS120 |
96111-10710 |
from US $2.87 |
||
|
17883
|
17883
17882-54070 Hose, Air Cleaner, No.3[08.1983 - 08.1987] 2L,2LT#..LS12# |
17882-54070 |
US $25.63 |
||
|
17883A
|
17883A
96111-10420 Clamp Or Clip, Hose(For Radiator Inlet)[08.1983 - 08.1987] 2L,2LT#..LS12# |
96111-10420 |
US $3.35 |
||
|
17884
|
17884
17883-54050 Hose, Air Cleaner, No.4[08.1983 - 08.1987] 2L..LS12# |
17883-54050 |
US $50.23 |
||
|
17884A
|
17884A
96111-10530 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1983 - 08.1987] 2L..LS12# |
96111-10530 |
from US $3.65 |
||
|
17893
|
17893
17893-54010 Resonator, Intake Air[08.1983 - 08.1987] 2L,2LT#..LS12# NO.1 |
17893-54010 |
US $71.78 |
||
|
17893
|
17893
17893-54020 Resonator, Intake Air[08.1983 - 08.1987] 2L..LS12# NO.2 |
17893-54020 |
US $56.64 |
||
|
17893
|
17893
17893-54030 Resonator, Intake Air[08.1983 - 08.1987] 2L..LS12# NO.3 |
17893-54030 |
US $56.64 |
||
|
17894
|
17894
17894-54010 Bracket, Resonator[08.1983 - 08.1987] 2L,2LT#..LS12# |
17894-54010 |
US $32.18 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9038710040
|
9038710040
90387-10040
Cushion(For Vane Pump Oil Reservoir)
|
90387-10040 |
— | ||
|
9044620003
|
9044620003
90446-20003
New Genuine Part
|
90446-20003 |
— | ||
|
9044620004
|
9044620004
90446-20004 New Genuine Part |
90446-20004 |
US $3.64 |
||
|
9048016005
|
9048016005
90480-16005 Grommet(For Air Cleaner Bracket) |
90480-16005 |
US $11.11 |
||
|
9054011003
|
9054011003
90540-11003 New Genuine Part |
90540-11003 |
US $4.08 |
||
|
9056008026
|
9056008026
90560-08026 Spacer(For Air Cleaner) |
90560-08026 |
US $1.89 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.19 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
|
9166640825
|
9166640825
91666-40825
New Genuine Part
|
91666-40825 |
— | ||
| replacement | |||||
|
9166640825
|
9166640825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
