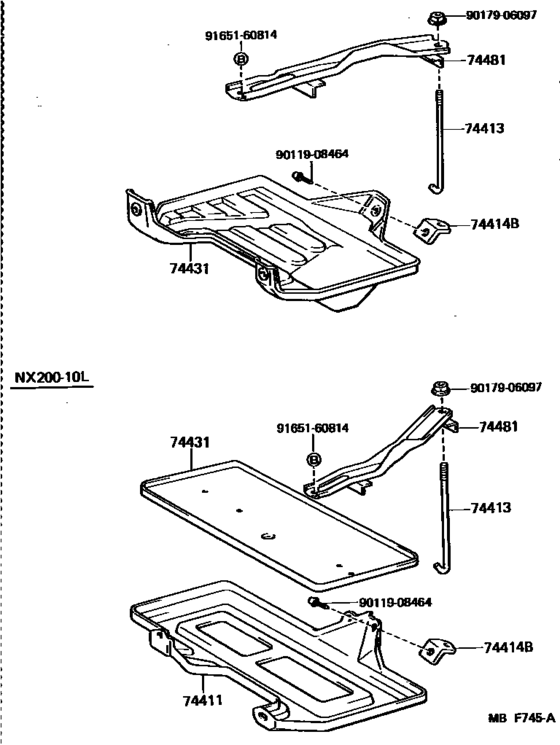

Battery Carrier ([08.1983 - ] (8308- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74411
|
74411
74411-30230
Carrier, Battery
[08.1983 - 08.1987] LS12# COLD SPEC |
74411-30230 |
— | ||
|
74413
|
74413
74451-30070 Bolt, Battery Clamp[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
74451-30070 |
US $3.93 |
||
| replacement | |||||
|
74413
|
74413
74451-30090 Bolt, Battery Clamp[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
74451-30090 |
from US $2.36 |
||
|
74413
|
74413
74451-30080
Bolt Sub-Assy, Battery Clamp
[08.1983 - 08.1987] LS12# COLD SPEC |
74451-30080 |
— | ||
|
74414B
|
74414B
74414-30030
Reinforcement, Battery Bracket
[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120 |
74414-30030 |
— | ||
|
74431
|
74431
74410-30010 Tray, Battery[09.1985 - 08.1987] GS120,121,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC; GS126 COLD SPEC |
74410-30010 |
US $133.95 |
||
|
74431
|
74431
74431-30010 Tray, Battery[08.1983 - 08.1987] LS12# COLD SPEC |
74431-30010 |
US $49.94 |
||
|
74431
|
74431
74431-30060 Tray, Battery[08.1983 - 09.1985] GS121,LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC; GS120,126,MS120..EFI,TBO COLD SPEC |
74431-30060 |
US $123.76 |
||
| replacement | |||||
|
74431
|
74431
74410-30010 Tray, Battery[08.1983 - 09.1985] GS121,LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC; GS120,126,MS120..EFI,TBO COLD SPEC |
74410-30010 |
US $133.95 |
||
|
74481
|
74481
74404-30200
Clamp, Battery Hold Down
[08.1983 - 09.1985] GS121,LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC |
74404-30200 |
— | ||
|
74481
|
74481
74404-30201 Clamp, Battery Hold Down[09.1985 - 08.1987] GS12#,LS12#,MS12#,YS120; GS126 COLD SPEC |
74404-30201 |
US $36.84 |
||
|
74481
|
74481
74404-30210 Clamp, Battery Hold Down[08.1983 - 08.1987] LS12# COLD SPEC |
74404-30210 |
US $48.63 |
||
|
9011908464
|
9011908464
90119-08464 Bolt, W/washer(For Side Gate, Rh) |
90119-08464 |
US $2.15 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
