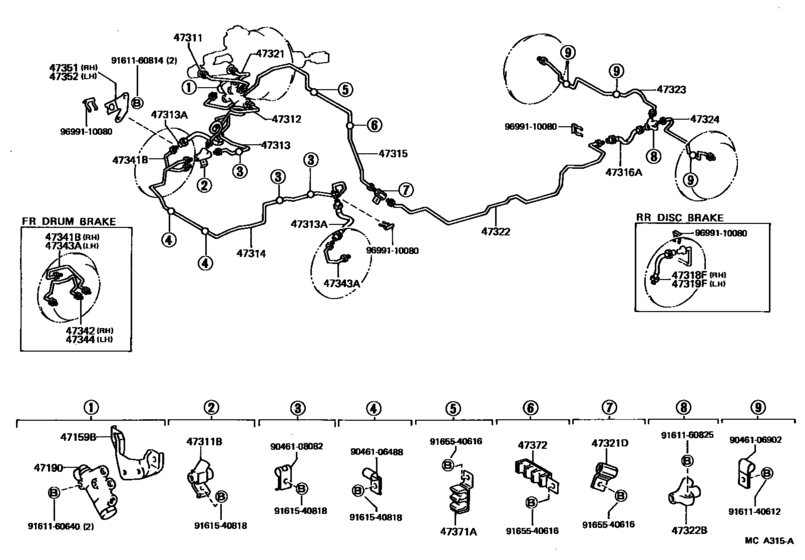

Brake Tube & Clamp ([08.1983 - ] (8308- )DSL,EFI,LPG,TD,TDE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47159B
|
47159B
47159-30150
Bracket, Proportioning Valve
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,SPC,TD,TDE,TWC |
47159-30150 |
— | ||
|
47190
|
47190
47190-30170 Valve Assy, Proportioning & By-Pass[08.1983 - 08.1987] MS120..LPG; GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD FR DISC & RR DRUM BRAKE |
47190-30170 |
US $216.94 |
||
|
47311
|
47311
47311-30400
Tube, Front Brake, No.1
[08.1983 - 09.1985] GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
47311-30400 |
— | ||
|
47311B
|
47311B
90413-10014 Way, No.1(For Front Brake Tube)[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC |
90413-10014 |
US $8.59 |
||
|
47312
|
47312
47312-30130 Tube, Front Brake, No.2[08.1983 - 09.1985] GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
47312-30130 |
US $12.23 |
||
|
47313
|
47313
47313-30140 Tube, Front Brake, No.3[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,SPC,TD,TDE,TWC |
47313-30140 |
US $17.76 |
||
|
47313A
|
47313A
90947-02361 Hose, Flexible, No.1(For Front)[08.1983 - 02.1987] GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
90947-02361 |
US $18.07 |
||
|
47313A
|
47313A
90947-02537 Hose, Flexible, No.1(For Front)[02.1987 - 08.1987] GS12#,LS12#,MS125 FR DISC BRAKE |
90947-02537 |
US $27.37 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02361 Hose, Flexible, No.1(For Front)[02.1987 - 08.1987] GS12#,LS12#,MS125 FR DISC BRAKE |
90947-02361 |
US $18.07 |
||
|
47314
|
47314
47314-30150 Tube, Front Brake, No.4[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC |
47314-30150 |
US $29.27 |
||
| replacement | |||||
|
47314
|
47314
47314-30190 Tube, Front Brake, No.4[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC |
47314-30190 |
US $29.41 |
||
|
47314
|
47314
47314-30190 Tube, Front Brake, No.4[12.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
47314-30190 |
US $29.41 |
||
|
47315
|
47315
47315-30260 Tube, Front Brake, No.5[08.1983 - 09.1985] GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
47315-30260 |
US $15.29 |
||
|
47316A
|
47316A
96940-32855 Hose, Flexible, No.1[08.1983 - 08.1987] GS120,LS120,MS120,YS120 |
96940-32855 |
US $19.99 |
||
|
47321
|
47321
47321-30120
Tube, Rear Brake, No.1
[08.1983 - 09.1985] GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
47321-30120 |
— | ||
|
47321D
|
47321D
90412-10116 Way(For Front Brake Tube)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90412-10116 |
US $9.96 |
||
|
47322
|
47322
47322-30070 Tube, Rear Brake, No.2[08.1983 - 08.1987] GS120,LS120,MS120,YS120 |
47322-30070 |
US $68.43 |
||
|
47322B
|
47322B
90413-10156 Way, No.1(For Rear Brake Tube)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
90413-10156 |
US $15.87 |
||
| replacement | |||||
|
47322B
|
47322B
90413-10147 Way, 3(For Rear Brake Tube)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
90413-10147 |
US $12.72 |
||
|
47323
|
47323
47323-30080
Tube, Rear Brake, No.3
[08.1983 - 08.1987] MS120,YS120..LPG; GS120,LS120..WG..SAL;GS120,LS120..DLX,SDX,SPE,SSL,STD |
47323-30080 |
— | ||
|
47324
|
47324
47324-30040 Tube, Rear Brake, No.4[08.1983 - 08.1987] MS120,YS120..LPG; GS120,LS120..WG..SAL;GS120,LS120..DLX,SDX,SPE,SSL,STD |
47324-30040 |
US $11.65 |
||
|
47341B
|
47341B
47341-30020 Tube, Wheel Cylinder, Front Rh No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
47341-30020 |
US $10.48 |
||
|
47343A
|
47343A
47343-30020 Tube, Wheel Cylinder, Front Lh No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
47343-30020 |
US $10.48 |
||
|
47351
|
47351
47351-30160
Bracket, Flexible Hose(For Front Rh)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
47351-30160 |
— | ||
|
47352
|
47352
47352-30080
Bracket, Flexible Hose(For Front Lh)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
47352-30080 |
— | ||
|
47371A
|
47371A
47371-30010 Clamp, Brake Tube, No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
47371-30010 |
US $11.53 |
||
|
47372
|
47372
47371-30020 Clamp, Brake Tube, No.2[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
47371-30020 |
US $13.69 |
||
|
9046106488
|
9046106488
90461-06488 New Genuine Part |
90461-06488 |
US $3.64 |
||
|
9046106902
|
9046106902
90461-06902 Clamp, Brake Tube, No.3 |
90461-06902 |
US $1.49 |
||
|
9046108082
|
9046108082
90461-08082 New Genuine Part |
90461-08082 |
US $2.18 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160640
|
9161160640
91611-60640 New Genuine Part |
91611-60640 |
US $1.05 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161540818
|
9161540818
91615-40818 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40818 |
US $1.89 |
||
| replacement | |||||
|
9161540818
|
9161540818
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
