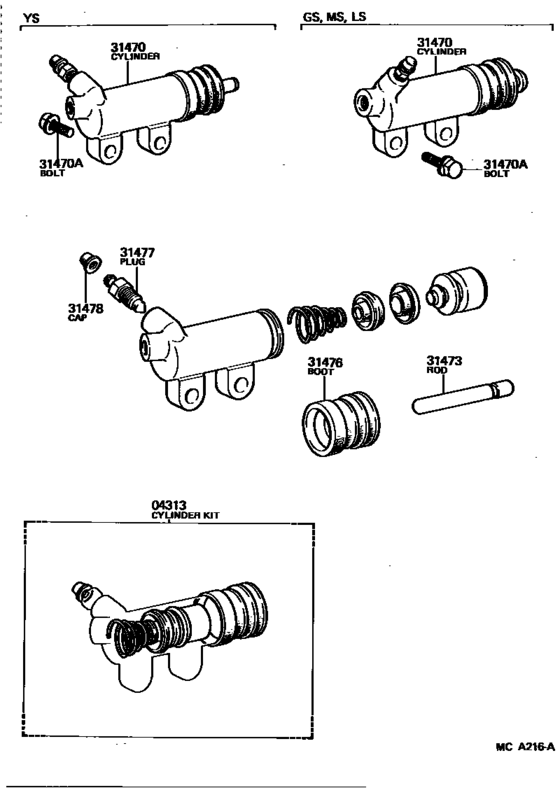

Clutch Release Cylinder ([08.1983 - ] (8308- )MTM) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04313
|
04313
04313-22020
Cylinder Kit, Clutch Release
[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
04313-22020 |
— | ||
| replacement | |||||
|
04313
|
04313
04313-12030 Cylinder Kit, Clutch Release[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
04313-12030 |
US $17.43 |
||
|
31470
|
31470
31470-30220
Cylinder Assy, Clutch Release
[08.1983 - 08.1987] GS12#,LS12#,MS120..MTM |
31470-30220 |
— | ||
| replacement | |||||
|
31470
|
31470
31470-30222 Cylinder Assy, Clutch Release[08.1983 - 08.1987] GS12#,LS12#,MS120..MTM |
31470-30222 |
from US $60.18 |
||
|
31470A
|
31470A
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM ＊８−１．２５ＰＸ２５−２５ |
91611-60825 |
— | ||
| replacement | |||||
|
31470A
|
31470A
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM ＊８−１．２５ＰＸ２５−２５ |
91611-B0825 |
from US $1.11 |
||
|
31473
|
31473
31473-22010 Rod, Clutch Release Cylinder Push, No.1[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
31473-22010 |
US $10.13 |
||
|
31476
|
31476
31476-22010 Boot, Clutch Release Cylinder[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
31476-22010 |
from US $4.10 |
||
|
31477
|
31477
47547-12010 Plug, Bleeder(For Release Cylinder)[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
47547-12010 |
from US $2.32 |
||
|
31478
|
31478
31478-30010 Bleeder Plug Cap[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
31478-30010 |
from US $1.60 |
||
