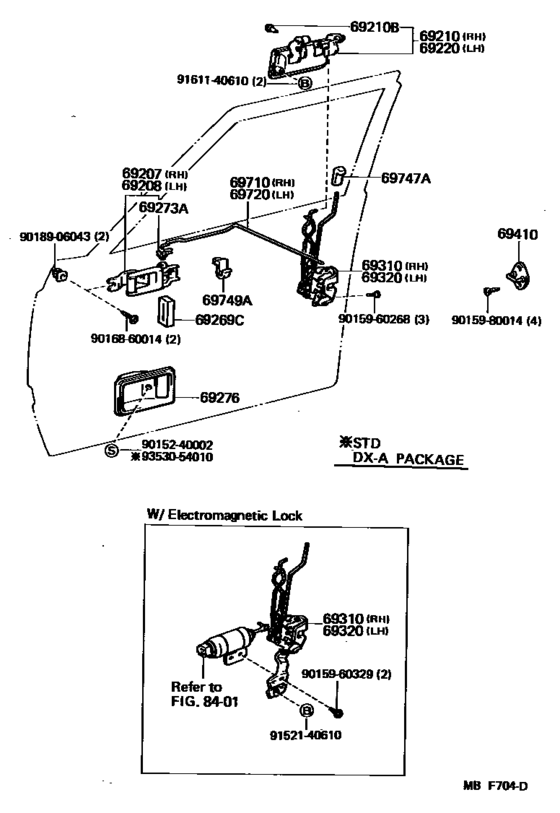

Front Door Lock & Handle ([08.1983 - ] (8308- )SED,V,WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69205-30020 Handle Sub-Assy, Front Door Inside, Rh[05.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
69205-30020 |
US $20.82 |
||
|
69208
|
69208
69206-30030 Handle Sub-Assy, Front Door Inside, Lh[05.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
69206-30030 |
US $20.82 |
||
|
69210
|
69210
69210-30170
Handle Assy, Front Door, Outside Rh
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
69210-30170 |
— | ||
|
69210B
|
69210B
90541-03021 Cushion(For Front Door Outside Handle)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90541-03021 |
US $5.56 |
||
|
69220
|
69220
69220-30140
Handle Assy, Front Door Outside, Lh
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
69220-30140 |
— | ||
|
69269C
|
69269C
69269-30010 Seal, Door Inside Handle No.2(For Front Door)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 COLD SPEC |
69269-30010 |
US $3.20 |
||
|
69273A
|
69273A
69759-24010 Snap(For Rear Door Inside Handle)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 RH |
69759-24010 |
from US $2.11 |
||
|
69273A
|
69273A
69759-24020 Snap(For Rear Door Inside Handle)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 LH |
69759-24020 |
from US $3.23 |
||
|
69276
|
69276
69277-30040 Bezel, Front Door Inside Handle[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
69277-30040 |
US $13.69 |
||
|
69310
|
69310
69310-30500 Lock Assy, Front Door, Rh[08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
69310-30500 |
US $119.39 |
||
| replacement | |||||
|
69310
|
69310
69310-30570 Lock Assy, Front Door, Rh[08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
69310-30570 |
US $119.39 |
||
|
69310
|
69310
69310-30560 Lock Assy, Front Door, Rh[09.1985 - 08.1987] LS120..DLX,SDX;GS120,LS120..WG..(EFI,TDE);GS120,MS120,YS120..SED..(DLX,SDX) |
69310-30560 |
US $122.30 |
||
| replacement | |||||
|
69310
|
69310
69310-30570 Lock Assy, Front Door, Rh[09.1985 - 08.1987] LS120..DLX,SDX;GS120,LS120..WG..(EFI,TDE);GS120,MS120,YS120..SED..(DLX,SDX) |
69310-30570 |
US $119.39 |
||
|
69320
|
69320
69320-30480 Lock Assy, Front Door, Lh[08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
69320-30480 |
US $99.01 |
||
| replacement | |||||
|
69320
|
69320
69320-30540 Lock Assy, Front Door, LhFRONT DOOR, LH [08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
69320-30540 |
US $107.74 |
||
|
69320
|
69320
69320-30550 Lock Assy, Front Door, Lh[09.1985 - 08.1987] GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
69320-30550 |
US $133.95 |
||
| replacement | |||||
|
69320
|
69320
69320-30560 Lock Assy, Front Door, LhFRONT DOOR, LH [09.1985 - 08.1987] GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
69320-30560 |
US $119.39 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
69410-87001 |
from US $9.73 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
69410-AA020 |
US $50.37 |
||
|
69710
|
69710
69711-30080 Link Assy, Front Door Open Control, Rh[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
69711-30080 |
US $9.17 |
||
|
69720
|
69720
69712-30090 Link Assy, Front Door Open Control, Lh[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
69712-30090 |
US $9.17 |
||
|
69747A
|
69747A
69741-30030-04 Button, Door Locking(For Front Door)[08.1983 - 04.1986] GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
69741-30030-04 |
US $4.51 |
||
| replacement | |||||
|
69747A
|
69747A
69741-30030-B0 Knob, Front Door Lock Control[08.1983 - 04.1986] GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
69741-30030-B0 |
US $4.37 |
||
|
69747A
|
69747A
69741-30030-05 Button, Door Locking(For Front Door)[08.1983 - 09.1985] GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
69741-30030-05 |
US $4.51 |
||
|
69747A
|
69747A
69741-30030-06 Button, Door Locking(For Front Door)[09.1985 - 08.1987] GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL) BROWN,BROWN,TRIM4#; GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
69741-30030-06 |
US $4.51 |
||
| replacement | |||||
|
69747A
|
69747A
69741-30030-B0 Knob, Front Door Lock Control[09.1985 - 08.1987] GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL) BROWN,BROWN,TRIM4#; GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
69741-30030-B0 |
US $4.37 |
||
|
69747A
|
69747A
69741-30030-14 Button, Door Locking(For Front Door)[04.1986 - 08.1987] GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
69741-30030-14 |
US $4.51 |
||
| replacement | |||||
|
69747A
|
69747A
69741-30030-B0 Knob, Front Door Lock Control[04.1986 - 08.1987] GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
69741-30030-B0 |
US $4.37 |
||
|
69749A
|
69749A
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
69749-30020 |
US $5.02 |
||
|
9015240002
|
9015240002
90152-40002 New Genuine Part |
90152-40002 |
US $1.75 |
||
| replacement | |||||
|
9015240002
|
9015240002
90151-40005 New Genuine Part |
90151-40005 |
US $0.44 |
||
|
9015960268
|
9015960268
90159-60268 Screw |
90159-60268 |
US $2.33 |
||
|
9015960329
|
9015960329
90159-60329 New Genuine Part |
90159-60329 |
US $1.60 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $2.15 |
||
|
9016860014
|
9016860014
90168-60014 New Genuine Part |
90168-60014 |
US $1.60 |
||
|
9018906043
|
9018906043
90189-06043 CLIP |
90189-06043 |
from US $0.80 |
||
|
9152140610
|
9152140610
91521-40610
New Genuine Part
|
91521-40610 |
— | ||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.68 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.77 |
||
