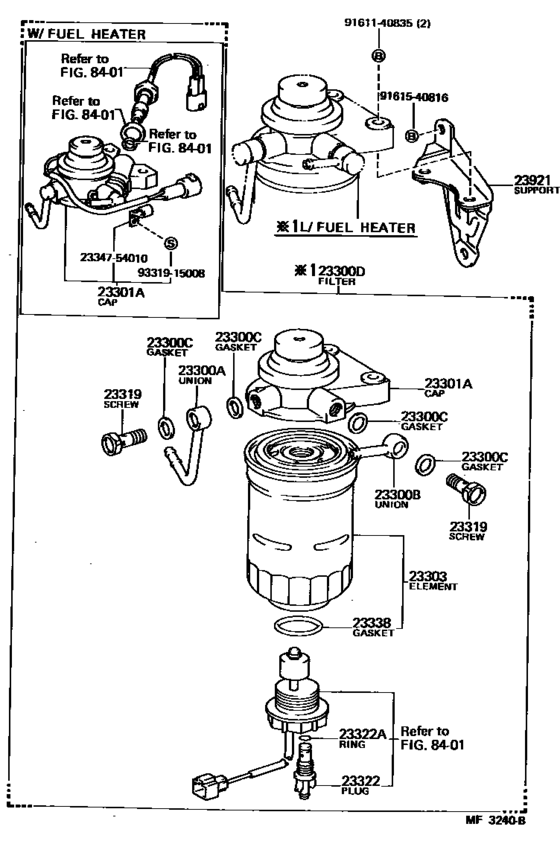

Fuel Filter ([08.1983 - 05.1986] (8308-8605)2L,2LT#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300A
|
23300A
23323-54040
Union, Nipple(For Fuel Filter Inlet)
[08.1983 - 06.1986] 2L,2LT#..LS12# |
23323-54040 |
— | ||
|
23300B
|
23300B
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[08.1983 - 06.1986] 2L,2LT#..LS12# |
90405-08016 |
— | ||
|
23300C
|
23300C
22447-47030 Gasket, Nipple Union(For Fuel)[08.1983 - 06.1986] 2L,2LT#..LS12# |
22447-47030 |
US $0.84 |
||
|
23300D
|
23300D
23300-54150 Filter Assy, Fuel(For Diesel)[08.1983 - 06.1986] 2L,2LT#..LS12# |
23300-54150 |
US $285.38 |
||
| replacements | |||||
|
23300D
|
23300D
23301-54260 Cap Assy, Fuel Filter[08.1983 - 06.1986] 2L,2LT#..LS12# |
23301-54260 |
US $183.46 |
||
|
23300D
|
23300D
23303-64010 Element Sub-Assy, Fuel Filter[08.1983 - 06.1986] 2L,2LT#..LS12# |
23303-64010 |
from US $52.83 |
||
|
23300D
|
23300D
84461-14030 Switch, Level Warning[08.1983 - 06.1986] 2L,2LT#..LS12# |
84461-14030 |
US $84.45 |
||
|
23301A
|
23301A
23301-54180 Cap Assy, Fuel Filter[09.1985 - 08.1987] 2L,2LT#..LS12# W/FUEL HEATER |
23301-54180 |
US $183.46 |
||
|
23301A
|
23301A
23301-54260 Cap Assy, Fuel Filter[06.1986 - 08.1987] 2L,2LT#..LS12# |
23301-54260 |
US $183.46 |
||
|
23301A
|
23301A
23301-64010
Cap Assy, Fuel Filter
[08.1983 - 06.1986] 2L,2LT#..LS12# |
23301-64010 |
— | ||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[08.1983 - 08.1987] 2L,2LT#..LS12# |
23303-64010 |
from US $52.83 |
||
|
23319
|
23319
90099-18011
Screw, Fuel Pipe Follow
[08.1983 - 09.1986] 2L,2LT#..LS12# |
90099-18011 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[08.1983 - 08.1987] 2L,2LT#..LS12# |
23322-64010 |
from US $7.37 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[08.1983 - 08.1987] 2L,2LT#..LS12# |
23344-54010 |
from US $1.58 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[08.1983 - 08.1987] 2L,2LT#..LS12# |
23344-64010 |
from US $1.54 |
||
|
23921
|
23921
23921-54120
Support, Fuel Filter
[08.1983 - 09.1985] 2L,2LT#..LS12# |
23921-54120 |
— | ||
|
23921
|
23921
23921-54121 Support, Fuel Filter[09.1985 - 08.1987] 2L,2LT#..LS12# |
23921-54121 |
US $39.60 |
||
|
2334754010
|
2334754010
23347-54010
Clip, Cord
|
23347-54010 |
— | ||
|
9161140835
|
9161140835
91611-40835
Bolt(For Clutch Release Cylinder Setting)
|
91611-40835 |
— | ||
| replacement | |||||
|
9161140835
|
9161140835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161540816
|
9161540816
91615-40816
Bolt (for Transmission Control Cable Bracket)
|
91615-40816 |
— | ||
| replacement | |||||
|
9161540816
|
9161540816
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
