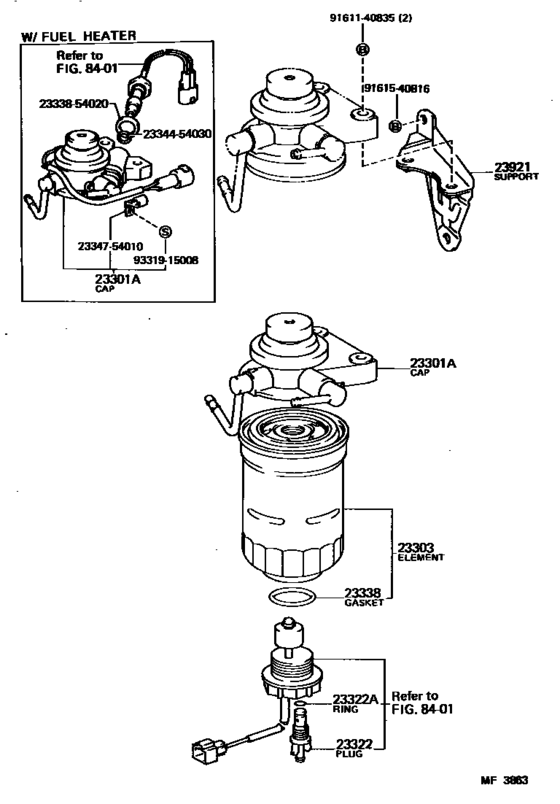

Fuel Filter ([05.1986 - ] (8605- )2L,2LT#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23301A
|
23301A
23301-54180 Cap Assy, Fuel Filter[09.1985 - 08.1987] 2L,2LT#..LS12# W/FUEL HEATER |
23301-54180 |
US $183.46 |
||
|
23301A
|
23301A
23301-54260 Cap Assy, Fuel Filter[06.1986 - 08.1987] 2L,2LT#..LS12# |
23301-54260 |
US $183.46 |
||
|
23301A
|
23301A
23301-64010
Cap Assy, Fuel Filter
[08.1983 - 06.1986] 2L,2LT#..LS12# |
23301-64010 |
— | ||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[08.1983 - 08.1987] 2L,2LT#..LS12# |
23303-64010 |
from US $52.83 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[08.1983 - 08.1987] 2L,2LT#..LS12# |
23303-64010-00 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[08.1983 - 08.1987] 2L,2LT#..LS12# |
23322-64010 |
from US $7.37 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[08.1983 - 08.1987] 2L,2LT#..LS12# |
23344-54010 |
from US $1.58 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[08.1983 - 08.1987] 2L,2LT#..LS12# |
23344-64010 |
from US $1.54 |
||
|
23921
|
23921
23921-54120
Support, Fuel Filter
[08.1983 - 09.1985] 2L,2LT#..LS12# |
23921-54120 |
— | ||
|
23921
|
23921
23921-54121 Support, Fuel Filter[09.1985 - 08.1987] 2L,2LT#..LS12# |
23921-54121 |
US $39.60 |
||
|
2333854020
|
2333854020
23338-54020 Gasket(for Warning Switch) |
23338-54020 |
US $2.48 |
||
|
2334454030
|
2334454030
23344-54030
Gasket, Clamping Nut(for Fuel Filter)
|
23344-54030 |
— | ||
|
2334754010
|
2334754010
23347-54010
Clip, Cord
|
23347-54010 |
— | ||
|
9161140835
|
9161140835
91611-40835
Bolt(For Clutch Release Cylinder Setting)
|
91611-40835 |
— | ||
| replacement | |||||
|
9161140835
|
9161140835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161540816
|
9161540816
91615-40816
Bolt (for Transmission Control Cable Bracket)
|
91615-40816 |
— | ||
| replacement | |||||
|
9161540816
|
9161540816
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
