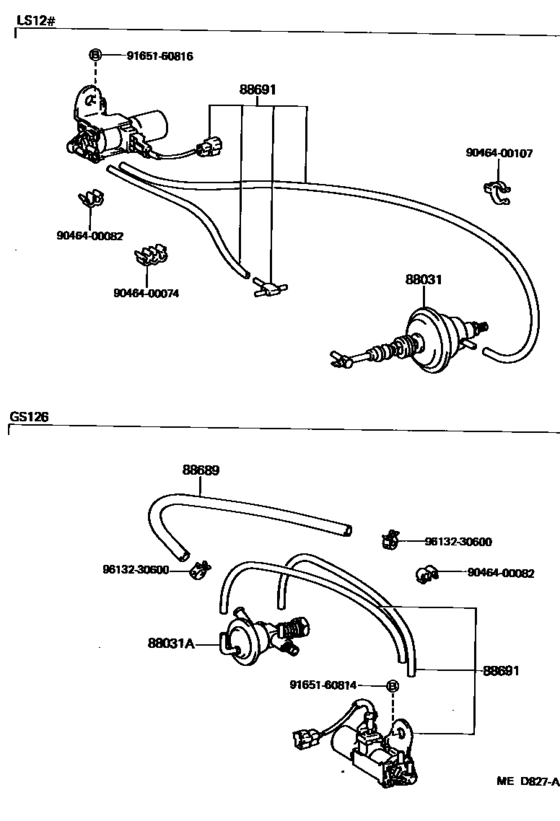

Heating & Air Conditioning - Vacuum Piping ([08.1983 - ] (8308- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-12150
Actuator Set, Idle-Up
[05.1987 - 08.1987] LS12#..DSL,TD |
88031-12150 |
— | ||
|
88031
|
88031
88031-30070
Actuator Set, Idle-Up
[08.1983 - 05.1987] LS12#..DSL,TD |
88031-30070 |
— | ||
| replacement | |||||
|
88031
|
88031
88031-12150
Actuator Set, Idle-Up
[08.1983 - 05.1987] LS12#..DSL,TD |
88031-12150 |
— | ||
|
88691
|
88691
88690-30560
Valve, Magnet (For Idle Up Device)
[08.1983 - 09.1985] LS12#..DSL,TD |
88690-30560 |
— | ||
|
88691
|
88691
88690-30680
Valve, Magnet (For Idle Up Device)
[09.1985 - 08.1987] LS12#..DSL,TD |
88690-30680 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400107
|
9046400107
90464-00107
New Genuine Part
|
90464-00107 |
— | ||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
