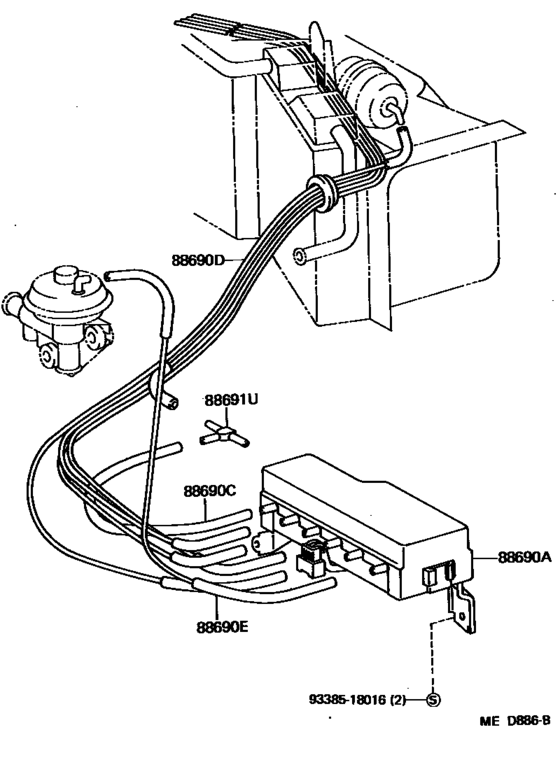

Heating & Air Conditioning - Vacuum Piping ([08.1983 - ] (8308- )WG..TDE ; (8308- )GS120..SED..SDX ; (8308- )GS120..SAL,SPE,SSL ; ( 8308- )GS121,L S120,MS120..HT,SED..SAL,SDX,SPE,SSL) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88690A
|
88690A
88690-30510
Valve Assy, Combination
[08.1983 - 08.1987] GS120,LS120..WG..SAL; GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TW C) |
88690-30510 |
— | ||
|
88690C
|
88690C
90445-06052 Hose, Vacuum, C[08.1983 - 08.1987] GS120,LS120..WG..SAL; GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TW C) |
90445-06052 |
US $3.93 |
||
| replacement | |||||
|
88690C
|
88690C
90445-06067
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[08.1983 - 08.1987] GS120,LS120..WG..SAL; GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TW C) |
90445-06067 |
— | ||
|
88690D
|
88690D
88509-30260
Hose, Vacuum, No.2 (For Heater Or Air Conditioner)
[09.1985 - 08.1987] GS120,LS120..WG..SAL; GS120,LS120..(HT,SED)..(SAL,SDX,SPE,SSL) |
88509-30260 |
— | ||
|
88690E
|
88690E
88689-30550
Hose, Vacuum, No.3 (For Heater Or Air Conditioner)
[08.1983 - 08.1987] GS120,LS120..WG..SAL; GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
88689-30550 |
— | ||
|
88691U
|
88691U
90413-03001 Way, 3[08.1983 - 08.1987] GS120,LS120..WG..SAL; LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL); GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE); GS121,MS123,125..ROY,SSL |
90413-03001 |
US $4.08 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
