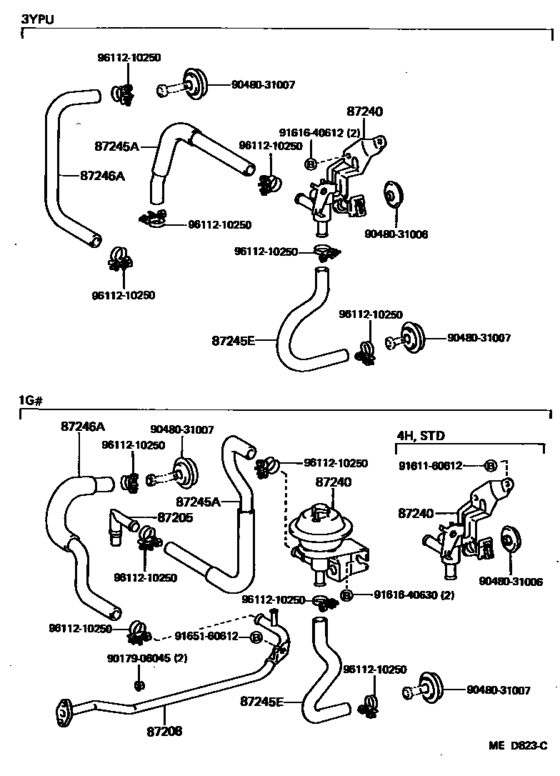

Heating & Air Conditioning - Water Piping ([08.1983 - ] (8308- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87205
|
87205
87251-30200 Union(For Water By-Pass Hose)[08.1983 - 08.1987] LS12#,MS12# |
87251-30200 |
from US $5.24 |
||
|
87240
|
87240
87240-30420 Valve Assy, Heater Water[08.1983 - 08.1987] LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) |
87240-30420 |
US $90.27 |
||
|
87240
|
87240
87240-30500 Valve Assy, Heater Water[09.1985 - 08.1987] LS120..WG..TDE W/*AAC; LS120..(HT,SED)..(SAL,SDX,SPE,SSL) W/*AAC |
87240-30500 |
US $253.34 |
||
|
87245A
|
87245A
87245-3A030 Hose, Heater Water, Inlet A[08.1983 - 08.1987] LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) |
87245-3A030 |
US $35.67 |
||
|
87245E
|
87245E
87245-3A200 Hose, Heater Water, Inlet E[08.1983 - 08.1987] LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) |
87245-3A200 |
US $14.56 |
||
|
87246A
|
87246A
87245-3A210 Hose, Heater Water, Outlet A[08.1983 - 05.1986] GS12#,LS12#,MS12# |
87245-3A210 |
US $12.81 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9048031006
|
9048031006
90480-31006
New Genuine Part
|
90480-31006 |
— | ||
|
9048031007
|
9048031007
90480-31007
Grommet, Heater Hose
|
90480-31007 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161640612
|
9161640612
91616-40612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91616-40612 |
— | ||
| replacement | |||||
|
9161640612
|
9161640612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161640630
|
9161640630
91616-40630 Bolt, Hexagon |
91616-40630 |
US $1.75 |
||
| replacement | |||||
|
9161640630
|
9161640630
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
