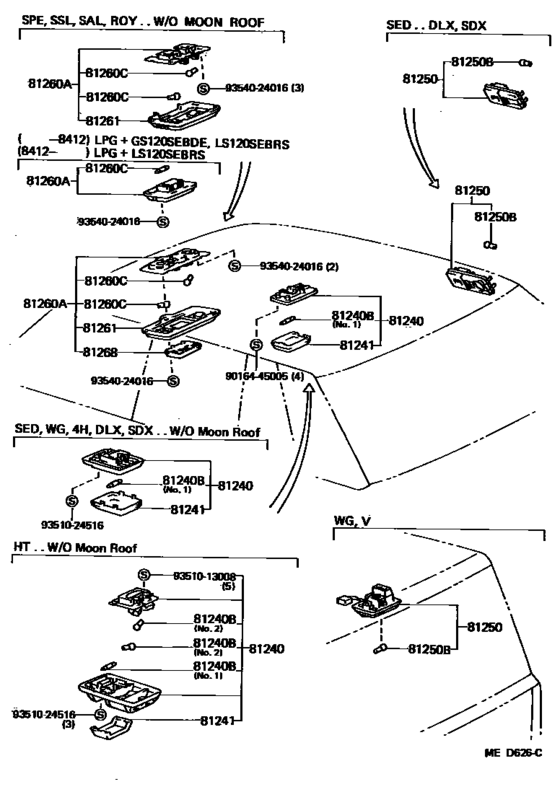

Interior Lamp ([08.1983 - ] (8308- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81240
|
81240
81240-30070-14 Lamp Assy, Room, No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG LIGHT BLUE,BLUE,TRIM8# |
81240-30070-14 |
US $46.45 |
||
| replacement | |||||
|
81240
|
81240
81240-30070-B0 Lamp Assy, Room, No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG LIGHT BLUE,BLUE,TRIM8# |
81240-30070-B0 |
US $51.11 |
||
|
81240
|
81240
81240-30070-15 Lamp Assy, Room, No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG BEIGE,BEIGE,TRIM4# |
81240-30070-15 |
US $46.45 |
||
| replacement | |||||
|
81240
|
81240
81240-30070-C0
Lamp Assy, Room, No.1
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG BEIGE,BEIGE,TRIM4# |
81240-30070-C0 |
— | ||
|
81240B
|
81240B
99132-12100 Bulb, Room Lamp, No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １２Ｖ １０Ｗ,12V 10W,NO.1 |
99132-12100 |
from US $2.03 |
||
| replacement | |||||
|
81240B
|
81240B
99132121001 99132121001[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １２Ｖ １０Ｗ,12V 10W,NO.1 |
99132121001 |
from US $1.79 |
||
|
81241
|
81241
81241-30070
Lens, Room Lamp, No.1
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
81241-30070 |
— | ||
|
81250
|
81250
81250-30060-04 Lamp Assy, Room, No.2[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) RH,LIGHT BLUE,BLUE,TRIM8# |
81250-30060-04 |
US $81.54 |
||
| replacement | |||||
|
81250
|
81250
81250-30060-C0 Lamp Assy, Room, No.2[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) RH,LIGHT BLUE,BLUE,TRIM8# |
81250-30060-C0 |
US $90.27 |
||
|
81250
|
81250
81250-30060-05 Lamp Assy, Room, No.2[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) RH,BEIGE,BEIGE,TRIM4# |
81250-30060-05 |
US $81.54 |
||
| replacement | |||||
|
81250
|
81250
81250-30060-C0 Lamp Assy, Room, No.2[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) RH,BEIGE,BEIGE,TRIM4# |
81250-30060-C0 |
US $90.27 |
||
|
81250
|
81250
81290-30050-04 Lamp Assy, Room, No.2[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) LH,LIGHT BLUE,BLUE,TRIM8# |
81290-30050-04 |
US $81.54 |
||
|
81250
|
81250
81290-30050-05 Lamp Assy, Room, No.2[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) LH,BEIGE,BEIGE,TRIM4# |
81290-30050-05 |
US $81.54 |
||
|
81250B
|
81250B
90049-51052
Bulb, Room Lamp, No.2
[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) １２Ｖ １０Ｗ,12V 10W |
90049-51052 |
— | ||
|
9016445005
|
9016445005
90164-45005 SCREW |
90164-45005 |
US $2.15 |
||
|
9351013008
|
9351013008
93510-13008 New Genuine Part |
93510-13008 |
US $2.18 |
||
|
9351024516
|
9351024516
93510-24516 New Genuine Part |
93510-24516 |
US $0.87 |
||
|
9354024016
|
9354024016
93540-24016 New Genuine Part |
93540-24016 |
US $2.33 |
||
