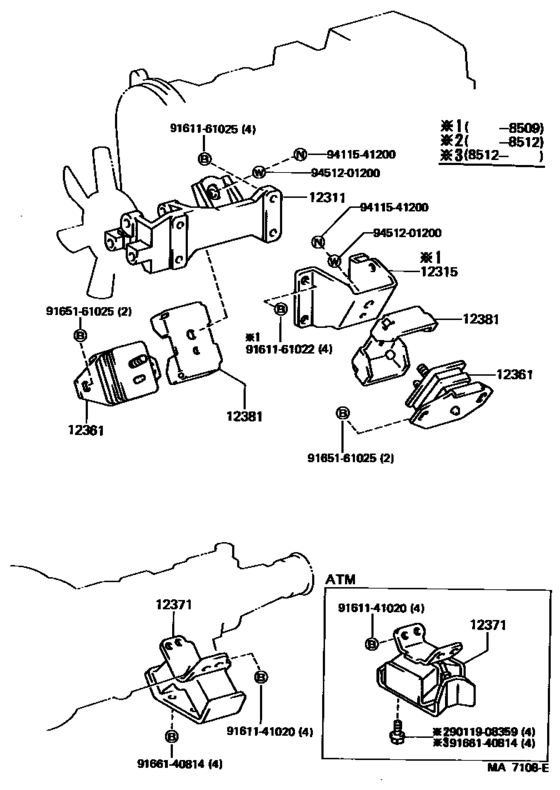

Mounting ([08.1983 - ] (8308- )2L,2LT#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-54090
Bracket, Engine Mounting, Front No.1 Rh
[08.1983 - 08.1987] 2L,2LT#..LS12# |
12311-54090 |
— | ||
| replacement | |||||
|
12311
|
12311
12311-54091 Bracket, Engine Mounting, Front No.1 Rh[08.1983 - 08.1987] 2L,2LT#..LS12# |
12311-54091 |
US $110.66 |
||
|
12315
|
12315
12312-54020
Bracket, Engine Mounting, Front No.1 Lh
[08.1983 - 09.1985] 2L..LS12# W/O PS |
12312-54020 |
— | ||
| replacement | |||||
|
12315
|
12315
12312-54021 Bracket, Engine Mounting, Front No.2[08.1983 - 09.1985] 2L..LS12# W/O PS |
12312-54021 |
US $25.51 |
||
|
12361
|
12361
12361-54130 Insulator, Engine Mounting, Front[08.1983 - 08.1987] 2L,2LT#..LS12# RH |
12361-54130 |
US $42.81 |
||
| replacement | |||||
|
12361
|
12361
12361-54131 Insulator, Engine Mounting, Front[08.1983 - 08.1987] 2L,2LT#..LS12# RH |
12361-54131 |
US $42.22 |
||
|
12361
|
12361
12362-54020 Insulator, Engine Mounting, Front[08.1983 - 08.1987] 2L,2LT#..LS12# LH |
12362-54020 |
US $42.81 |
||
| replacement | |||||
|
12361
|
12361
12362-54021 Insulator, Engine Mounting, Front[08.1983 - 08.1987] 2L,2LT#..LS12# LH |
12362-54021 |
US $42.22 |
||
|
12371
|
12371
12371-34020 Insulator, Engine Mounting, Rear No.1[08.1983 - 08.1987] 2L,2LT..LS12#..MTM |
12371-34020 |
US $49.73 |
||
|
12381
|
12381
12381-54010 Stabilizer, Engine Mounting[08.1983 - 08.1987] 2L,2LT#..LS12# |
12381-54010 |
US $23.41 |
||
|
9011908359
|
9011908359
90119-08359 New Genuine Part |
90119-08359 |
US $2.33 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161022
|
9161161022
91611-61022
Bolt (For Transmission Control Cable Bracket)
|
91611-61022 |
— | ||
| replacement | |||||
|
9161161022
|
9161161022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9166140814
|
9166140814
91661-40814
New Genuine Part
|
91661-40814 |
— | ||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
