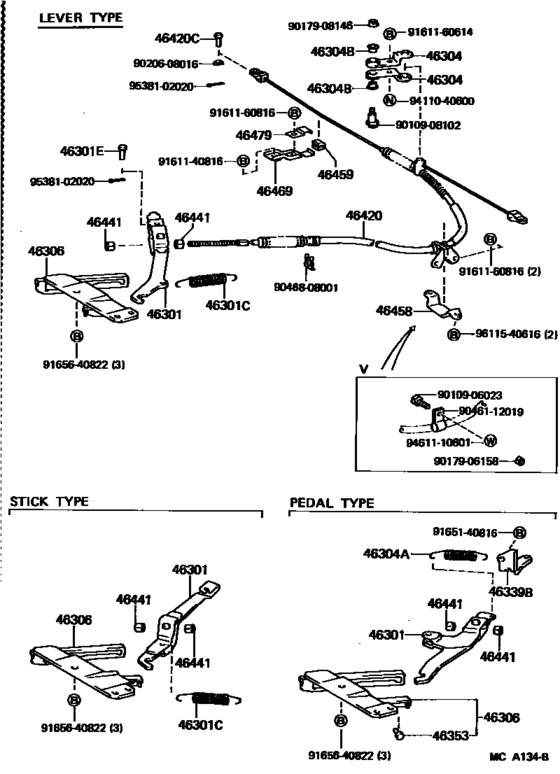

Parking Brake & Cable ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46301
|
46301
46301-30170 Lever Sub-Assy, Parking Brake Intermediate[08.1983 - 08.1987] LS126..DLX;GS120,126,LS120,YS120..5F |
46301-30170 |
US $19.80 |
||
|
46301C
|
46301C
90506-20044 Spring, Tension(For Intermediate Lever)[08.1983 - 08.1987] LS126;GS120,126,LS120,MS120,YS120..MTM |
90506-20044 |
US $4.51 |
||
|
46301E
|
46301E
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[08.1983 - 08.1987] GS121,MS123,125..ATM; GS120,126,LS12#,MS120,YS120..4FC,4HC,5F |
90240-08028 |
US $2.87 |
||
|
46304
|
46304
46341-31010 Equalizer Sub-Assy, Parking Brake[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
46341-31010 |
from US $13.26 |
||
|
46304B
|
46304B
90385-12029 Bush(For Parking Brake Equalizer)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
90385-12029 |
from US $1.62 |
||
|
46306
|
46306
46306-30050 Bracket Sub-Assy, Intermediate Lever(For Parking Brake)[08.1983 - 08.1987] LS126..DLX;GS120,126,LS120,YS120..5F |
46306-30050 |
US $53 |
||
|
46420
|
46420
46420-30280 Cable Assy, Parking Brake, No.2[08.1983 - 08.1987] MS120..ATM..LPG; GS120,LS120..WG..(4FC,4HC,5F); GS120,LS120,YS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SDX,SPE,SSL,STD) |
46420-30280 |
US $72.22 |
||
|
46420C
|
46420C
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90240-08028 |
US $2.87 |
||
|
46441
|
46441
46441-30050 Nut, Wire Adjusting, No.1[08.1984 - 08.1987] GS12#,LS12#,MS12#,YS120 |
46441-30050 |
US $3.49 |
||
|
46458
|
46458
46458-30042 Retainer, Cable[08.1983 - 08.1987] GS120,LS120,MS120,YS120 |
46458-30042 |
US $5.39 |
||
|
46459
|
46459
46459-30010
Guide, Cable
[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
46459-30010 |
— | ||
|
46469
|
46469
46469-31011 Lever, Cable Guide Support[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
46469-31011 |
US $8.59 |
||
|
46479
|
46479
46479-30010 Lever, Cable Guide Sapport, No.2[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
46479-30010 |
US $8.59 |
||
|
9010906023
|
9010906023
90109-06023 New Genuine Part |
90109-06023 |
US $1.46 |
||
|
9010908102
|
9010908102
90109-08102 NUT |
90109-08102 |
from US $1.31 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9020608016
|
9020608016
90206-08016 Washer, Wave (For Low Speed Connecting Rod) |
90206-08016 |
US $3.40 |
||
|
9046112019
|
9046112019
90461-12019 New Genuine Part |
90461-12019 |
US $7.13 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9461110601
|
9461110601
94611-10601 WASHER |
94611-10601 |
from US $0.52 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $1.08 |
||
|
9611540616
|
9611540616
96115-40616
New Genuine Part
|
96115-40616 |
— | ||
