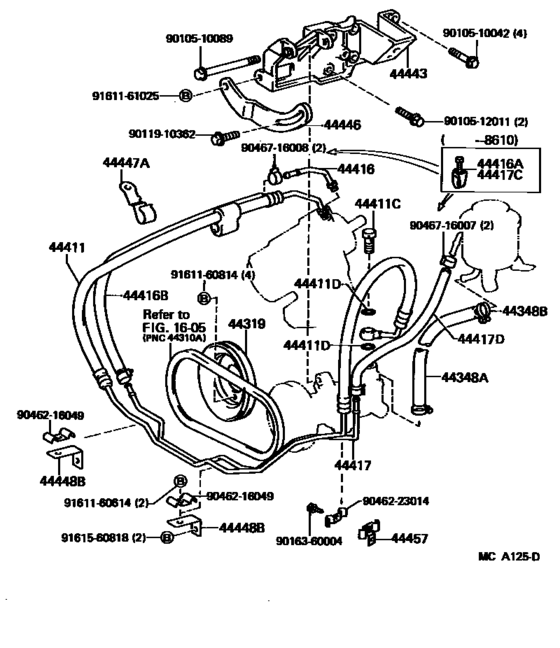

Power Steering Tube ([08.1983 - ] (8308- )LS120 ; (8308- )LS126..DLX) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44319
|
44319
44319-30030
Pulley, Vane Pump Drive
[08.1983 - 08.1987] LS120;LS126..DLX |
44319-30030 |
— | ||
|
44348A
|
44348A
44348-30060 Hose, Oil Reservoir To Pump, No.1[08.1983 - 08.1987] LS120;LS126..DLX |
44348-30060 |
US $30.87 |
||
|
44348B
|
44348B
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[08.1983 - 08.1987] LS120;GS121,LS126..DLX,ROY |
90460-26001 |
US $10.57 |
||
|
44411
|
44411
44411-30210 Hose, Pressure Feed[08.1983 - 08.1987] LS120;LS126..DLX |
44411-30210 |
US $349.44 |
||
|
44411C
|
44411C
90401-16005 Bolt, Union(For Pressure Feed Tube)[08.1983 - 08.1986] LS120;LS126..DLX |
90401-16005 |
US $21.56 |
||
| replacement | |||||
|
44411C
|
44411C
90401-16008 Bolt, Union(For Pressure Feed Tube)[08.1983 - 08.1986] LS120;LS126..DLX |
90401-16008 |
from US $10.93 |
||
|
44411C
|
44411C
90401-16008 Bolt, Union(For Pressure Feed Tube)[08.1986 - 08.1987] LS126..DLX; LS120 |
90401-16008 |
from US $10.93 |
||
|
44411D
|
44411D
90430-16242 Gasket, W/head Straight Screw Plug[08.1983 - 08.1987] LS120;LS126..DLX |
90430-16242 |
from US $0.82 |
||
|
44416
|
44416
44416-30060 Tube, Return(For Steering Gear Outlet)[08.1983 - 08.1987] LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
44416-30060 |
US $16.89 |
||
|
44416A
|
44416A
90460-01001 Clamp, Oil Cooler Hose[08.1983 - 10.1986] MS12#..LPG,TWC; LS120;GS12#,LS126..DLX,ROY,SAL,SDX,SPE,SSL |
90460-01001 |
US $10.39 |
||
|
44416B
|
44416B
90445-18123 Hose(For Steering Gear To Return Tube)[08.1983 - 08.1987] LS120;LS126..DLX |
90445-18123 |
US $35.53 |
||
|
44417
|
44417
44417-30050 Tube, Return, No.2[08.1983 - 08.1987] LS120;LS126..DLX |
44417-30050 |
US $35.38 |
||
|
44417C
|
44417C
90460-01001 Clamp, Oil Cooler Hose[08.1983 - 10.1986] LS120;LS126..DLX |
90460-01001 |
US $10.39 |
||
|
44417D
|
44417D
90445-18126
Hose(For Return Tube To Reservoir)
[08.1983 - 08.1987] LS120;LS126..DLX |
90445-18126 |
— | ||
|
44443
|
44443
44443-30080 Bracket, Pump[08.1983 - 08.1987] LS12# |
44443-30080 |
US $174.72 |
||
|
44446
|
44446
44446-30070 Strut, Adjusting[08.1983 - 08.1987] LS120;LS126..DLX |
44446-30070 |
US $14.41 |
||
|
44447A
|
44447A
44447-30080 Bracket, Hose Support, No.1[08.1983 - 08.1987] LS120;LS126..DLX |
44447-30080 |
US $7.13 |
||
|
44448B
|
44448B
44448-30060 Bracket, Hose Support, No.2[08.1983 - 08.1987] LS120;LS126..DLX |
44448-30060 |
US $8.59 |
||
|
44457
|
44457
44457-30030 Bracket, Tube Support, No.1[08.1983 - 08.1987] LS120;LS126..DLX |
44457-30030 |
US $6.70 |
||
|
9010510042
|
9010510042
90105-10042 Bolt, Flywheel Setting |
90105-10042 |
from US $1.29 |
||
|
9010510089
|
9010510089
90105-10089 Bolt(For Alternator) |
90105-10089 |
US $6.45 |
||
|
9010512011
|
9010512011
90105-12011 Bolt, Flywheel Setting |
90105-12011 |
US $3.93 |
||
|
9011910362
|
9011910362
90119-10362 New Genuine Part |
90119-10362 |
US $2.62 |
||
|
9016360004
|
9016360004
90163-60004 New Genuine Part |
90163-60004 |
US $1.89 |
||
|
9046216049
|
9046216049
90462-16049 New Genuine Part |
90462-16049 |
US $3.35 |
||
|
9046223014
|
9046223014
90462-23014 New Genuine Part |
90462-23014 |
US $7.13 |
||
|
9046716007
|
9046716007
90467-16007
Clip(For Oil Return Hose)
|
90467-16007 |
— | ||
| replacement | |||||
|
9046716007
|
9046716007
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9161560818
|
9161560818
91615-60818 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-60818 |
US $1.60 |
||
| replacement | |||||
|
9161560818
|
9161560818
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
