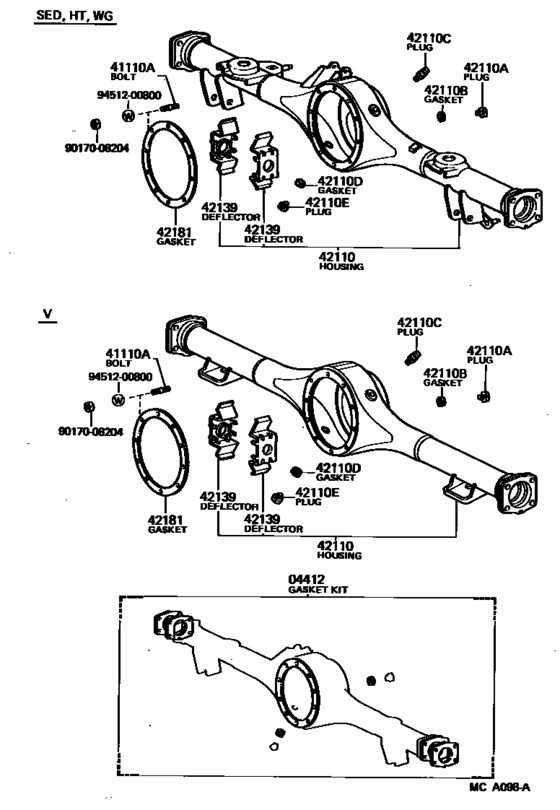

Rear Axle Housing & Differential ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04412
|
04412
04412-30010
Gasket Kit, Rear Differential Carrier
[08.1983 - 03.1987] MS120..LPG;GS120,126,LS12#..V,WG; GS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD) |
04412-30010 |
— | ||
| replacement | |||||
|
04412
|
04412
04412-30060
Gasket Kit, Rear Differential Carrier
[08.1983 - 03.1987] MS120..LPG;GS120,126,LS12#..V,WG; GS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD) |
04412-30060 |
— | ||
|
04412
|
04412
04412-30020
Gasket Kit, Rear Differential Carrier
[03.1987 - 08.1987] MS120;GS120,126,LS12#..V,WG; GS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD) |
04412-30020 |
— | ||
| replacement | |||||
|
04412
|
04412
04412-30060
Gasket Kit, Rear Differential Carrier
[03.1987 - 08.1987] MS120;GS120,126,LS12#..V,WG; GS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD) |
04412-30060 |
— | ||
|
41110A
|
41110A
90116-08235
Bolt, No.1 (For Rear Differential Carrier Set)
[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 ネジ部長さ＝１２ ＆ １５，長さ＝３４ |
90116-08235 |
— | ||
| replacement | |||||
|
41110A
|
41110A
90116-08418 Bolt, No.1 (For Rear Differential Carrier Set)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 ネジ部長さ＝１２ ＆ １５，長さ＝３４ |
90116-08418 |
US $1.61 |
||
|
42110
|
42110
42110-30230 Housing Assy, Rear Axle[08.1983 - 08.1987] LS120..(HT,SED)..(DLX,SDX,SPE,SSL); GS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD) |
42110-30230 |
US $778.96 |
||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[06.1986 - 08.1987] GS120,126,LS12#,MS120,YS120 |
90341-18006 |
from US $3.23 |
||
|
42110A
|
42110A
90341-18049 Plug(For Oil Heater Houl)[08.1983 - 06.1986] GS120,126,LS12#,MS120,YS120 |
90341-18049 |
from US $3.65 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
12157-10010 |
from US $0.76 |
||
|
42110C
|
42110C
90930-03031 Plug, Breather(For Parking Cover)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
90930-03031 |
from US $6.10 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
12157-10010 |
from US $0.76 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
90341-18057 |
from US $6.27 |
||
|
42139
|
42139
42108-30010 Deflector, Rear Axle Housing Oil[08.1983 - 08.1987] GS120,LS120,MS120,YS120 |
42108-30010 |
US $18.70 |
||
|
42181
|
42181
42181-30020 Gasket, Rear Differential Carrier[08.1983 - 08.1987] GS120,126,LS12#,MS120,YS120 |
42181-30020 |
US $3.94 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.78 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
