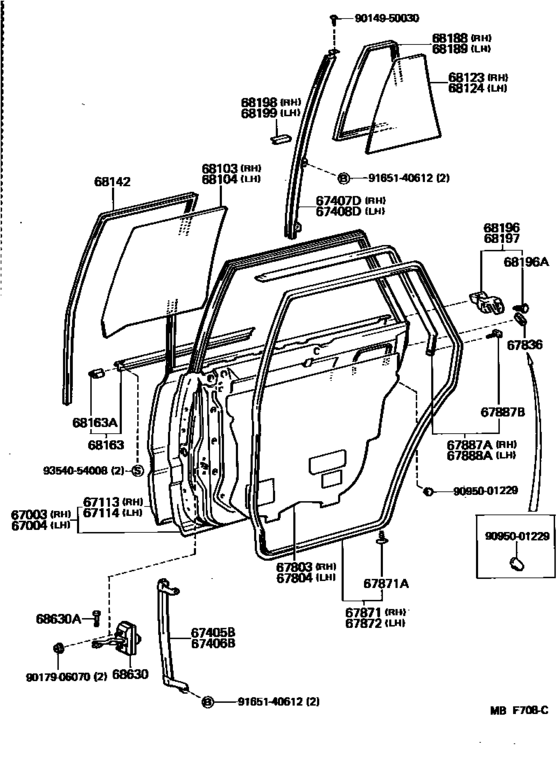

Rear Door Panel & Glass ([08.1983 - ] (8308- )SED,V,WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-30290 Panel Sub-Assy, Rear Door, Rh[06.1985 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
67003-30290 |
US $844.48 |
||
|
67004
|
67004
67004-30290 Panel Sub-Assy, Rear Door, Lh[06.1985 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
67004-30290 |
US $844.48 |
||
|
67113
|
67113
67113-30100
Panel, Rear Door, Outer Rh
[06.1985 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67113-30100 |
— | ||
|
67114
|
67114
67114-30110
Panel, Rear Door, Outer Lh
[06.1985 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67114-30110 |
— | ||
|
67405B
|
67405B
67405-30070 Guide Sub-Assy, Rear Door Window, Front Rh[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67405-30070 |
US $28.10 |
||
|
67406B
|
67406B
67406-30080 Guide Sub-Assy, Rear Door Window, Front Lh[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67406-30080 |
US $28.10 |
||
|
67407D
|
67407D
67407-30080 Guide Sub-Assy, Rear Door Window, Rear Rh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
67407-30080 |
US $59.84 |
||
|
67408D
|
67408D
67408-30070 Guide Sub-Assy, Rear Door Window, Rear Lh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
67408-30070 |
US $59.84 |
||
|
67803
|
67803
67841-30160 Cover Sub-Assy, Rear Door Service Hole, Rh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG |
67841-30160 |
US $8.88 |
||
| replacement | |||||
|
67803
|
67803
67841-30180 Cover Sub-Assy, Rear Door Service Hole, Rh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG |
67841-30180 |
US $8.59 |
||
|
67803
|
67803
67841-30180 Cover Sub-Assy, Rear Door Service Hole, Rh[04.1986 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67841-30180 |
US $8.59 |
||
|
67803
|
67803
67841-30200 Cover Sub-Assy, Rear Door Service Hole, Rh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG COLD SPEC |
67841-30200 |
US $9.90 |
||
| replacement | |||||
|
67803
|
67803
67841-30210 Cover Sub-Assy, Rear Door Service Hole, Rh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG COLD SPEC |
67841-30210 |
US $10.05 |
||
|
67803
|
67803
67841-30210 Cover Sub-Assy, Rear Door Service Hole, Rh[04.1986 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG COLD SPEC |
67841-30210 |
US $10.05 |
||
|
67804
|
67804
67841-30160 Cover Sub-Assy, Rear Door Service Hole, Rh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG |
67841-30160 |
US $8.88 |
||
| replacement | |||||
|
67804
|
67804
67841-30180 Cover Sub-Assy, Rear Door Service Hole, Rh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG |
67841-30180 |
US $8.59 |
||
|
67804
|
67804
67841-30180 Cover Sub-Assy, Rear Door Service Hole, Rh[04.1986 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67841-30180 |
US $8.59 |
||
|
67804
|
67804
67842-30070 Cover Sub-Assy, Rear Door Service Hole, Lh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG COLD SPEC |
67842-30070 |
US $9.90 |
||
| replacement | |||||
|
67804
|
67804
67842-30080 Cover Sub-Assy, Rear Door Service Hole, Lh[08.1983 - 04.1986] GS120,126,LS12#,MS120,YS120..SED,V,WG COLD SPEC |
67842-30080 |
US $10.05 |
||
|
67804
|
67804
67842-30080 Cover Sub-Assy, Rear Door Service Hole, Lh[04.1986 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG COLD SPEC |
67842-30080 |
US $10.05 |
||
|
67836
|
67836
67836-14010 Cover, Rear Door Lock Child Protection, Rh[08.1983 - 08.1987] GS120,121,LS120,MS120..SPE,SSL COLD SPEC; LS120..DLX,SDX;GS120..SED..(DLX,SDX);GS120,LS120..WG..(EFI,TDE) COLD SPEC |
67836-14010 |
US $4.48 |
||
|
67871
|
67871
67871-30100 Weatherstrip, Rear Door, Rh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
67871-30100 |
US $72.36 |
||
|
67871A
|
67871A
67868-30040 Retainer, Roof Side Rail, Rh[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67868-30040 |
from US $1.07 |
||
|
67872
|
67872
67872-30100 Weatherstrip, Rear Door, Lh[08.1983 - 09.1986] GS120,121,LS120,MS12#,YS120..SED |
67872-30100 |
US $71.64 |
||
| replacement | |||||
|
67872
|
67872
67872-30111 Weatherstrip, Rear Door, Lh[08.1983 - 09.1986] GS120,121,LS120,MS12#,YS120..SED |
67872-30111 |
US $72.51 |
||
|
67872
|
67872
67872-30111 Weatherstrip, Rear Door, Lh[09.1986 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
67872-30111 |
US $72.51 |
||
|
67887A
|
67887A
67887-30020 Weatherstrip, Rear Door, No.2 Rh[08.1983 - 09.1985] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
67887-30020 |
US $45.43 |
||
|
67887A
|
67887A
67887-30060 Weatherstrip, Rear Door, No.2 Rh[09.1985 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
67887-30060 |
US $45.14 |
||
|
67887B
|
67887B
67869-30020 Clip, Headlamp Door Filler[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG DOUBLE WEATHERSTRIP |
67869-30020 |
US $3.94 |
||
|
67888A
|
67888A
67888-30020 Weatherstrip, Rear Door, No.2 Lh[08.1983 - 09.1985] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
67888-30020 |
US $45.43 |
||
|
67888A
|
67888A
67888-30060 Weatherstrip, Rear Door, No.2 Lh[09.1985 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
67888-30060 |
US $45.14 |
||
|
68103
|
68103
68113-30220 Glass Sub-Assy, Rear Door, Rh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) *TT,T=4.0 |
68113-30220 |
US $125.22 |
||
|
68104
|
68104
68114-30140 Glass Sub-Assy, Rear Door, Lh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) *TT,T=4.0 |
68114-30140 |
US $125.22 |
||
|
68123
|
68123
68123-30180 Glass, Rear Door Window, Rh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) *TT,T=3.5 |
68123-30180 |
US $91.73 |
||
|
68124
|
68124
68124-30120 Glass, Rear Door Window, Lh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) *TT,T=3.5 |
68124-30120 |
US $91.73 |
||
|
68142
|
68142
68142-30070 Run, Rear Door Glass[08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120..SED,WG PLANT.A21-A26 |
68142-30070 |
US $61.30 |
||
|
68142
|
68142
68142-30090 Run, Rear Door Glass[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120..SED,V,WG PLANT.M21-M22 |
68142-30090 |
US $61.30 |
||
|
68142
|
68142
68142-30100 Run, Rear Door Glass[09.1985 - 08.1987] GS120,121,LS120,MS12#,YS120..SED,WG PLANT.A21-A26 |
68142-30100 |
US $61.44 |
||
|
68142
|
68142
68142-30110 Run, Rear Door Glass[09.1985 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG PLANT.M21-M22 |
68142-30110 |
US $61.30 |
||
| replacement | |||||
|
68142
|
68142
68142-30100 Run, Rear Door Glass[09.1985 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG PLANT.M21-M22 |
68142-30100 |
US $61.44 |
||
|
68188
|
68188
68188-30070 Weatherstrip, Rear Door Quarter Window, Rh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
68188-30070 |
US $41.64 |
||
|
68189
|
68189
68189-30050 Weatherstrip, Rear Door Quarter Window, Lh[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
68189-30050 |
US $41.64 |
||
|
68196
|
68196
68196-30030 Seal, Rear Door Belt, Rh[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
68196-30030 |
US $11.36 |
||
|
68196A
|
68196A
67869-12010
Clip, Roof Side Rail Weatherstrip
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
67869-12010 |
— | ||
| replacement | |||||
|
68196A
|
68196A
90467-05045-22 Clip(For Front Fender Seal)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
90467-05045-22 |
US $1.61 |
||
|
68197
|
68197
68197-30030
Seal, Rear Door Belt, Lh
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
68197-30030 |
— | ||
|
68630
|
68630
68630-30040 Check Assy, Rear Door[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
68630-30040 |
US $57.37 |
||
|
68630A
|
68630A
68617-90K00 Pin(For Front Door Check)[07.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
68617-90K00 |
from US $2.89 |
||
|
9014950030
|
9014950030
90149-50030
New Genuine Part
|
90149-50030 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9095001229
|
9095001229
90950-01229 Plug, Hole(For Rear Door Panel) |
90950-01229 |
US $2.80 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9354054008
|
9354054008
93540-54008 New Genuine Part |
93540-54008 |
US $0.69 |
||
