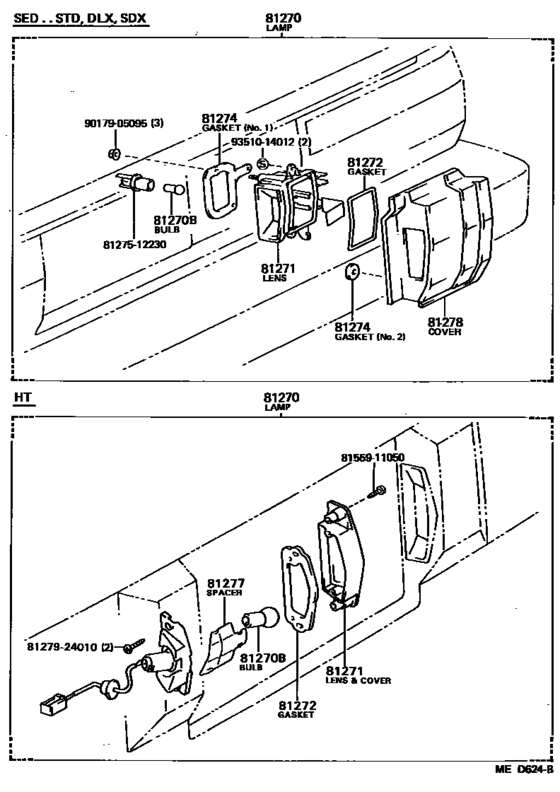

Rear License Plate Lamp ([08.1983 - ] (8308- )HT,SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81270
|
81270
81270-39425 Lamp Assy, License Plate[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) RH |
81270-39425 |
US $145.60 |
||
|
81270
|
81270
81690-39085 Lamp Assy, License Plate[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) LH |
81690-39085 |
US $145.60 |
||
|
81270B
|
81270B
90981-12013 Bulb (For License Plate Lamp)[10.1984 - 03.1986] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) １２Ｖ １０Ｗ,12V 10W |
90981-12013 |
US $2.34 |
||
|
81270B
|
81270B
90981-12016 Bulb (For License Plate Lamp)[03.1986 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) 12V 10W |
90981-12016 |
US $2.18 |
||
| replacement | |||||
|
81270B
|
81270B
90981-12013 Bulb (For License Plate Lamp)[03.1986 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) 12V 10W |
90981-12013 |
US $2.34 |
||
|
81271
|
81271
81271-30110 Lens, License Plate Lamp[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) RH |
81271-30110 |
US $85.90 |
||
|
81271
|
81271
81691-30020 Lens, License Plate Lamp[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) LH |
81691-30020 |
US $85.90 |
||
|
81272
|
81272
81272-30110 Gasket, License Plate Lamp Lens[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) |
81272-30110 |
US $4.08 |
||
|
81274
|
81274
81274-30110 Gasket, License Plate Lamp Body[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) NO.1 |
81274-30110 |
US $5.39 |
||
|
81274
|
81274
81278-30110 Gasket, License Plate Lamp Body[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) NO.2 |
81278-30110 |
US $4.95 |
||
|
81278
|
81278
81276-30130 Cover, License Plate Lamp[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) RH |
81276-30130 |
US $45.43 |
||
|
81278
|
81278
81696-30030 Cover, License Plate Lamp[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) LH |
81696-30030 |
US $45.43 |
||
|
8127512230
|
8127512230
81275-12230 Socket And Wire, License Plate Lamp |
81275-12230 |
US $5.56 |
||
|
8127924010
|
8127924010
81279-24010 Screw, Side Turn Signal Lamp |
81279-24010 |
US $1.79 |
||
|
8155911050
|
8155911050
81559-11050 Moulding, Rear Combination Lamp, Rh |
81559-11050 |
US $5.10 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $0.96 |
||
