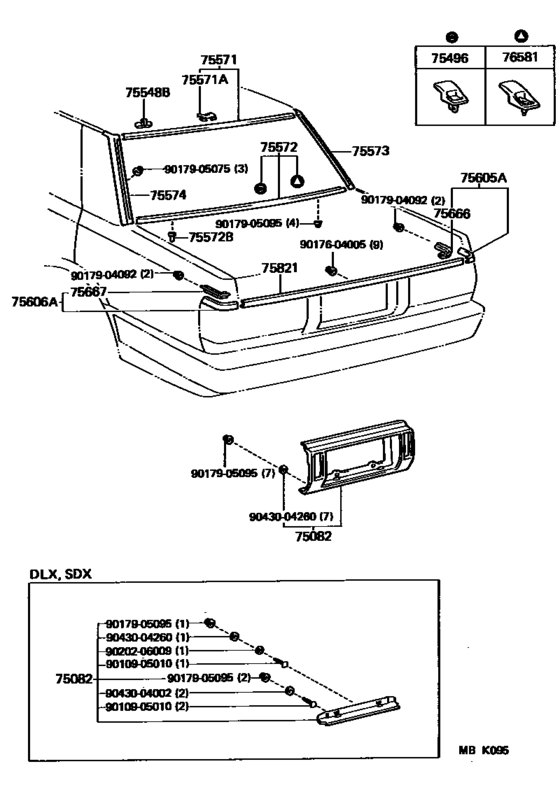

Rear Moulding ([09.1985 - ] (8509- )SED..DLX,ROY,SAL,SDX) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75082
|
75082
75831-39015 Panel Sub-Assy, Lower Back Finish, Center[08.1983 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) |
75831-39015 |
US $38.58 |
||
|
75496
|
75496
75496-30020 Clip, Back Window Outside Moulding, No.1[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
75496-30020 |
US $4.08 |
||
|
75548B
|
75548B
75548-22060 Fastener, Windshield Outside Moulding, No.1[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
75548-22060 |
US $5.91 |
||
|
75571
|
75571
75571-30180 Moulding, Back Window, Outside Upper[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
75571-30180 |
US $60.42 |
||
|
75571A
|
75571A
75546-32010
Clip, Windshield Moulding Set, No.1
[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
75546-32010 |
— | ||
|
75572
|
75572
75507-30130 Moulding, Back Window, Lower[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
75507-30130 |
US $78.62 |
||
|
75572B
|
75572B
67772-20021 Cap, Front Door Trim Retainer[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..HT,SED |
67772-20021 |
from US $0.96 |
||
|
75573
|
75573
75573-30200 Moulding, Back Window Side, Rh[08.1983 - 08.1987] GS120,121,LS120,MS12#..SED..(ROY,SAL,SDX) |
75573-30200 |
US $107.74 |
||
|
75574
|
75574
75574-30200 Moulding, Back Window Side, Lh[08.1983 - 08.1987] GS120,121,LS120,MS12#..SED..(ROY,SAL,SDX) |
75574-30200 |
US $107.74 |
||
|
75605A
|
75605A
75605-30120 Moulding Sub-Assy, Quarter Outside, Rh[09.1985 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) |
75605-30120 |
US $38.58 |
||
|
75605A
|
75605A
75605-39045 Moulding Sub-Assy, Quarter Outside, Rh[08.1983 - 09.1985] GS120,LS120,MS120,YS120..SED..(DLX,SDX) |
75605-39045 |
US $38.29 |
||
|
75606A
|
75606A
75606-30120 Moulding Sub-Assy, Quarter Outside, Lh[09.1985 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX) |
75606-30120 |
US $38.58 |
||
|
75606A
|
75606A
75606-39045 Moulding Sub-Assy, Quarter Outside, Lh[08.1983 - 09.1985] GS120,LS120,MS120,YS120..SED..(DLX,SDX) |
75606-39045 |
US $38.29 |
||
|
75666
|
75666
75666-30020
Cover, Quarter Panel Back Moulding End, No.1
[01.1985 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) |
75666-30020 |
— | ||
|
75667
|
75667
75667-30010
Cover, Quarter Panel Back Moulding End, No.2
[01.1985 - 08.1987] GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) |
75667-30010 |
— | ||
|
75821
|
75821
75801-30110 Moulding, Luggage Compartment Door Back[09.1985 - 08.1987] GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) |
75801-30110 |
US $88.82 |
||
|
75821
|
75821
75801-39075 Moulding, Luggage Compartment Door Back[08.1983 - 09.1985] GS120,LS120,MS120,YS120..SED..(DLX,SDX) |
75801-39075 |
US $97.55 |
||
|
76581
|
76581
76581-30030 Retainer, Back Window Outside Moulding[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
76581-30030 |
US $4.08 |
||
|
9010905010
|
9010905010
90109-05010 New Genuine Part |
90109-05010 |
US $2.62 |
||
|
9017604005
|
9017604005
90176-04005 New Genuine Part |
90176-04005 |
US $1.89 |
||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
from US $1.19 |
||
|
9017905075
|
9017905075
90179-05075
New Genuine Part
|
90179-05075 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9020206009
|
9020206009
90202-06009 New Genuine Part |
90202-06009 |
US $1.60 |
||
|
9043004002
|
9043004002
90430-04002 Gasket(For Roof Side Vent Louver) |
90430-04002 |
US $3.58 |
||
| replacement | |||||
|
9043004002
|
9043004002
90202-05017 New Genuine Part |
90202-05017 |
from US $1.60 |
||
|
9043004260
|
9043004260
90430-04260 GASKET |
90430-04260 |
from US $0.82 |
||
