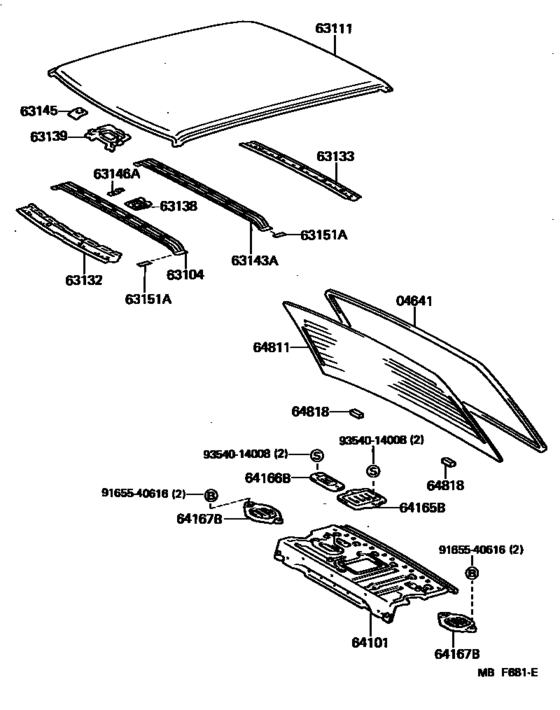

Roof Panel & Back Window Glass ([08.1983 - ] (8308- )SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641
|
04641
04562-30040 Dam Kit, Windshield Glass[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..HT,SED |
04562-30040 |
from US $40.15 |
||
|
63104
|
63104
63141-30050 Reinforcement Sub-Assy, Roof Panel, Center[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
63141-30050 |
US $29.12 |
||
|
63111
|
63111
63111-30160 Panel, Roof[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
63111-30160 |
US $697.42 |
||
|
63132
|
63132
63132-30120 Panel, Windshield Header, Inner[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
63132-30120 |
US $30.28 |
||
|
63133
|
63133
63133-30110 Frame, Back Window Opening, Upper[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
63133-30110 |
US $30.28 |
||
|
63138
|
63138
63138-30030 Bracket, Dome Lamp, No.2[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
63138-30030 |
US $14.27 |
||
|
63143A
|
63143A
63143-30060
Reinforcement, Roof Panel
[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
63143-30060 |
— | ||
|
63145
|
63145
63145-30040
Reinforcement, Windshield Header Inner Panel
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..SED,V,WG |
63145-30040 |
— | ||
|
64101
|
64101
64101-30130 Panel Sub-Assy, Upper Back[08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120..SED |
64101-30130 |
US $308.67 |
||
| replacement | |||||
|
64101
|
64101
64101-30140
Panel Sub-Assy, Upper Back
[08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120..SED |
64101-30140 |
— | ||
|
64101
|
64101
64101-30140
Panel Sub-Assy, Upper Back
[09.1985 - 08.1987] GS120,121,LS120,MS12#,YS120..SED |
64101-30140 |
— | ||
|
64165B
|
64165B
64165-30010 Cover, Upper Back Panel Hole, No.1[08.1983 - 09.1985] GS120,121,LS120,MS120..(HT,SED)..(DLX,SAL,SDX,SPE,STD)..(DSL,EFI,TBO,TD,TDE,TWC) |
64165-30010 |
US $17.33 |
||
|
64166B
|
64166B
64166-30010 Cover, Upper Back Panel Hole, No.2[08.1983 - 09.1985] GS120,121,LS120,MS120..(HT,SED)..(DLX,SAL,SDX,SPE,STD)..(DSL,EFI,TBO,TD,TDE,TWC) |
64166-30010 |
US $12.23 |
||
|
64811
|
64811
64801-30200 Glass, Back Window[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) *EHTT,T=4.0 |
64801-30200 |
US $1,070.16 |
||
|
64818
|
64818
64818-30050 Spacer, Back Window Glass[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120..HT,SED |
64818-30050 |
US $3.49 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.61 |
||
