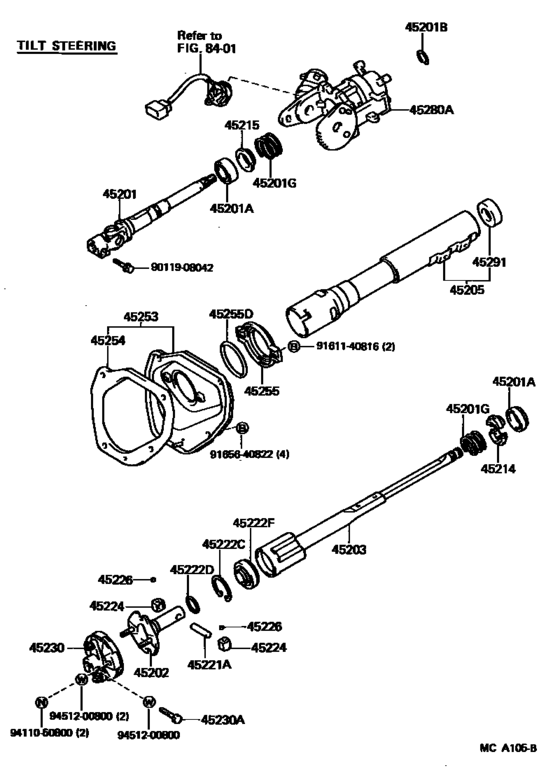

Steering Column & Shaft ([08.1983 - ] (8308-8509)TBO ; (8308- )GS12#,LS12#..4FC,5F. .DLX,SAL,SDX,SPE,SSL ; (8405-8509)G S121..SPE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201
|
45201
45210-30060 Shaft Sub-Assy, Steering Main[08.1983 - 08.1987] GS12#,LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) W/TILT STEERING |
45210-30060 |
US $243.15 |
||
| replacement | |||||
|
45201
|
45201
45210-30061 Shaft Assy, Steering Main[08.1983 - 08.1987] GS12#,LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) W/TILT STEERING |
45210-30061 |
US $244.61 |
||
|
45201A
|
45201A
90363-28001 Bearing(For Steering Main Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) CTR |
90363-28001 |
from US $24.11 |
||
|
45201A
|
45201A
90369-43004
Bearing(For Steering Main Shaft)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 LWR |
90369-43004 |
— | ||
|
45201B
|
45201B
90520-23034
Ring, Drive Pinion Cylindrical Roller Bearing Locking
[08.1983 - 08.1987] GS12#,LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) 厚さ＝１．５,W/TILT STEERING |
90520-23034 |
— | ||
|
45201G
|
45201G
90501-29388
Spring, Compression(For Steering Main Shaft)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 LWR |
90501-29388 |
— | ||
|
45201G
|
45201G
90501-45011 Spring, Compression(For Steering Main Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) UPR |
90501-45011 |
US $7.69 |
||
|
45202
|
45202
45220-30040 Shaft Sub-Assy, Steering Intermediate[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45220-30040 |
US $47.47 |
||
|
45203
|
45203
45220-30050 Shaft Sub-Assy, Steering Intermediate, No.2[08.1983 - 08.1987] GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
45220-30050 |
US $243.15 |
||
|
45205
|
45205
45870-30140 Tube Sub-Assy, Steering Column[08.1983 - 08.1987] GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) W/TILT STEERING |
45870-30140 |
US $116.48 |
||
|
45214
|
45214
45214-30040
Retainer, Main Shaft Spring
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45214-30040 |
— | ||
|
45215
|
45215
45215-22011 Collar, Main Shaft Bearing Thrust[08.1983 - 08.1987] GS12#,LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL); GS121,MS123,125..(4FC,5F)..ROY LWR |
45215-22011 |
US $4.89 |
||
|
45221A
|
45221A
90250-10059 Pin(For Steering Intermediate Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90250-10059 |
US $9.05 |
||
|
45222C
|
45222C
90521-52003 Ring, Hole Snap(For Dust Cover)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90521-52003 |
US $3.32 |
||
|
45222D
|
45222D
90301-23054 Ring, O(For Dust Cover)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90301-23054 |
from US $3.37 |
||
|
45222F
|
45222F
45222-30030 Cover, Steering Gear Dust[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45222-30030 |
from US $9.73 |
||
|
45224
|
45224
45224-30040 Block, Bearing(For Steering Flexible Coupling)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １５．９７−１６．００,L=15.97-16.00 |
45224-30040 |
from US $8.53 |
||
|
45224
|
45224
45225-30040 Block, Bearing(For Steering Flexible Coupling)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １６．００−１６．０３,L=16.00-16.03 |
45225-30040 |
US $12.01 |
||
|
45226
|
45226
45226-30020
Anti-Rattle(For Steering Flexible Coupling)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45226-30020 |
— | ||
| replacement | |||||
|
45226
|
45226
45226-30021 Anti-Rattle(For Steering Flexible Coupling)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45226-30021 |
from US $4.86 |
||
|
45230
|
45230
45230-30100
Coupling Assy, Flexible
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45230-30100 |
— | ||
|
45230A
|
45230A
90101-08230
Bolt, Hexagon(For Steering Flexible Copling Set)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90101-08230 |
— | ||
|
45253
|
45253
45025-30100 Cover, Steering Column Hole[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120..4FC,5F |
45025-30100 |
US $40.62 |
||
|
45253
|
45253
45025-30150 Cover, Steering Column Hole[09.1985 - 08.1987] GS12#,LS12#,MS12#,YS120..4FC,5F |
45025-30150 |
US $49.21 |
||
|
45254
|
45254
45254-30110 Shield, Steering Column Hole[08.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45254-30110 |
US $8.59 |
||
|
45255
|
45255
45255-30040 Plate, Steering Column Hole Cover[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45255-30040 |
US $8.30 |
||
|
45255D
|
45255D
90301-59001 Grommet Or Ring, O(For Steering Column Clamp)[02.1984 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90301-59001 |
US $8.30 |
||
|
45280A
|
45280A
45280-30370 Bracket Assy, Steering Column, Upper[08.1983 - 08.1987] GS120,126,LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) W/TILT STEERING |
45280-30370 |
US $247.52 |
||
|
45291
|
45291
45282-22010 Seal, Main Shaft Upper Dust[08.1983 - 08.1987] GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
45282-22010 |
from US $16.07 |
||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.93 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
