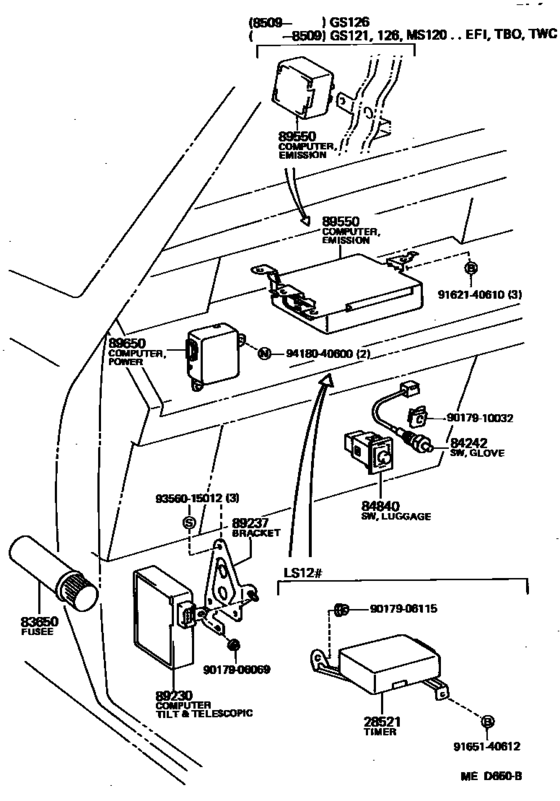

Switch & Relay & Computer ([08.1983 - ] (8308- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28521
|
28521
28521-54221 Timer, Preheating[09.1985 - 08.1987] 2L..LS12#..(4FC,5F)..(DLX,SDX) |
28521-54221 |
US $634.82 |
||
|
83650
|
83650
90986-01003
Fusee
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90986-01003 |
— | ||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[09.1985 - 08.1987] GS126..SDX; GS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
84242-20030 |
US $18.35 |
||
|
84242
|
84242
84242-24010 Switch Assy, Courtesy Lamp (For Glove Box)[08.1983 - 09.1985] GS126..SDX; GS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE |
84242-24010 |
US $14.71 |
||
|
84840
|
84840
84840-30060 Switch Assy, Luggage Compartment Door Opening[08.1983 - 09.1985] GS120,121,LS120,MS12#..(HT,SED)..(DSL,EFI,TBO,TD,TDE,TWC) GLOVE COMPARTMENT |
84840-30060 |
US $51.40 |
||
|
84840
|
84840
84840-30070
Switch Assy, Luggage Compartment Door Opening
[09.1985 - 08.1987] GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SDX,SPE,SSL) FR DOOR |
84840-30070 |
— | ||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017910032
|
9017910032
90179-10032 New Genuine Part |
90179-10032 |
US $2.48 |
||
|
9162140610
|
9162140610
91621-40610 BOLT |
91621-40610 |
from US $0.70 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9356015012
|
9356015012
93560-15012 New Genuine Part |
93560-15012 |
US $1.25 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
