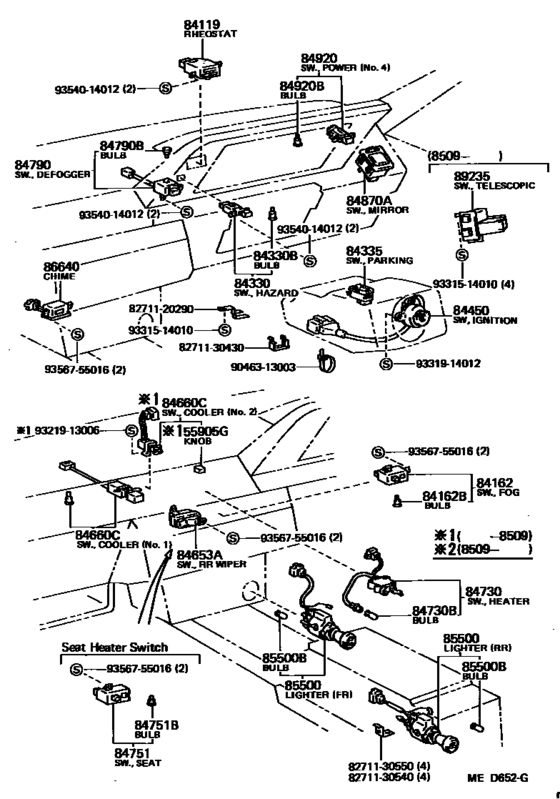

Switch & Relay & Computer ([08.1983 - ] (8308- )GS12#,LS12#,MS120..SED,V,WG..4FC,4HC, 5F..DLX,ROY,SAL,SDX..DSL,EFI,SPC,TB O,TD,TDE,TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-30060 Rheostat, Light Control[09.1985 - 08.1987] MS125..4HC;MS125..SED..4FC;GS120,121,LS120..(4FC,4HC,5F)..(ROY,SAL,SDX,SPE,SSL) |
84119-30060 |
US $126.67 |
||
|
84162
|
84162
84162-30050 Switch, Front Fog Lamp[09.1985 - 08.1987] GS120,121,LS120,MS125..(SED,WG)..(4FC,4HC,5F)..(ROY,SAL,SDX) |
84162-30050 |
US $69.45 |
||
|
84162B
|
84162B
84999-10060 Bulb, Fog Lamp Switch[09.1985 - 08.1987] GS120,121,LS120,MS125..(SED,WG)..(4FC,4HC,5F)..(ROY,SAL,SDX) 12V 0.8W |
84999-10060 |
US $5.53 |
||
|
84162B
|
84162B
84999-10170 Bulb, Indicator Lamp[09.1985 - 08.1987] GS120,121,LS120,MS125..(SED,WG)..(4FC,4HC,5F)..(ROY,SAL,SDX) １２Ｖ １．１２Ｗ,12V 1.12W |
84999-10170 |
US $7.88 |
||
|
84330
|
84330
84332-30110 Switch Assy, Hazard Warning Signal[08.1983 - 09.1985] GS12#,LS120,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(ROY,SAL,SDX)..(EFI,TBO,TD,TDE,TWC) |
84332-30110 |
US $46.30 |
||
|
84330B
|
84330B
84999-10170 Bulb, Indicator Lamp[08.1983 - 08.1987] GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) １２Ｖ １．１２Ｗ,12V 1.12W |
84999-10170 |
US $7.88 |
||
|
84335
|
84335
84330-30100 Switch Assy, Parking Lamp[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
84330-30100 |
US $38.29 |
||
|
84450
|
84450
84450-10090
Switch Assy, Ignition Or Starter
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
84450-10090 |
— | ||
|
84660C
|
84660C
84660-30050 Switch, Cooler[08.1983 - 08.1987] GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE,TWC) NO.1 |
84660-30050 |
US $69.74 |
||
|
84730
|
84730
84732-30170 Switch Assy, Heater Blower[08.1983 - 08.1987] GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE,TWC) |
84732-30170 |
US $160.16 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[08.1983 - 08.1987] GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) １４Ｖ １．４Ｗ,12V 1.4W |
90981-11014 |
from US $2.15 |
||
|
84790
|
84790
84790-30150 Switch Assy, Rear Window Defogger[08.1983 - 08.1987] GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) |
84790-30150 |
US $107.74 |
||
|
84790B
|
84790B
84999-10170 Bulb, Indicator Lamp[08.1983 - 08.1987] GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) １２Ｖ １．１２Ｗ,12V 1.12W |
84999-10170 |
US $7.88 |
||
|
84870A
|
84870A
84870-30050 Switch Assy, Outer Mirror[08.1983 - 08.1987] MS123,125..4HC;GS120,121..HT..4HC;MS123,125..SED..4FC;GS121,126..(SED,V)..(ROY,SDX );GS120,LS120,MS120,YS120..(SED,WG)..(DLX,SAL,SDX) FENDER,*RCM |
84870-30050 |
US $72.65 |
||
| replacement | |||||
|
84870A
|
84870A
84870-24020 Switch Assy, Outer Mirror[08.1983 - 08.1987] MS123,125..4HC;GS120,121..HT..4HC;MS123,125..SED..4FC;GS121,126..(SED,V)..(ROY,SDX );GS120,LS120,MS120,YS120..(SED,WG)..(DLX,SAL,SDX) FENDER,*RCM |
84870-24020 |
US $85.90 |
||
|
85500
|
85500
85500-30311 Lighter Assy, Cigarette[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..4FC,5F RR |
85500-30311 |
US $51.83 |
||
|
85500
|
85500
85500-30360 Lighter Assy, Cigarette[08.1983 - 08.1987] GS126..4H..DLX FR,W/LIGHTING,TYPE B; GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) FR,W/LIGHTING |
85500-30360 |
US $66.68 |
||
| replacement | |||||
|
85500
|
85500
85500-17010
Lighter Assy, Cigarette
[08.1983 - 08.1987] GS126..4H..DLX FR,W/LIGHTING,TYPE B; GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) FR,W/LIGHTING |
85500-17010 |
— | ||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.1983 - 08.1987] GS126..4H..DLX １４Ｖ １．４Ｗ,FR,W/LIGHTING,TYPE B,12V 1.4W; GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) １４Ｖ １．４Ｗ,FR,W/LIGHTING,12V 1.4W; GS120,LS120..4H..(DLX,SDX);GS126,MS120,YS120..(4FC,4H,4HC |
90981-11014 |
from US $2.15 |
||
|
86640
|
86640
86640-30050 Chime Assy[08.1983 - 08.1987] GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) |
86640-30050 |
US $36.25 |
||
|
8271120290
|
8271120290
82711-20290 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20290 |
US $8.74 |
||
|
8271130430
|
8271130430
82711-30430 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30430 |
US $12.67 |
||
|
8271130540
|
8271130540
82711-30540 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30540 |
US $2.33 |
||
|
8271130550
|
8271130550
82711-30550 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30550 |
US $2.33 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9321913006
|
9321913006
93219-13006
New Genuine Part
|
93219-13006 |
— | ||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
