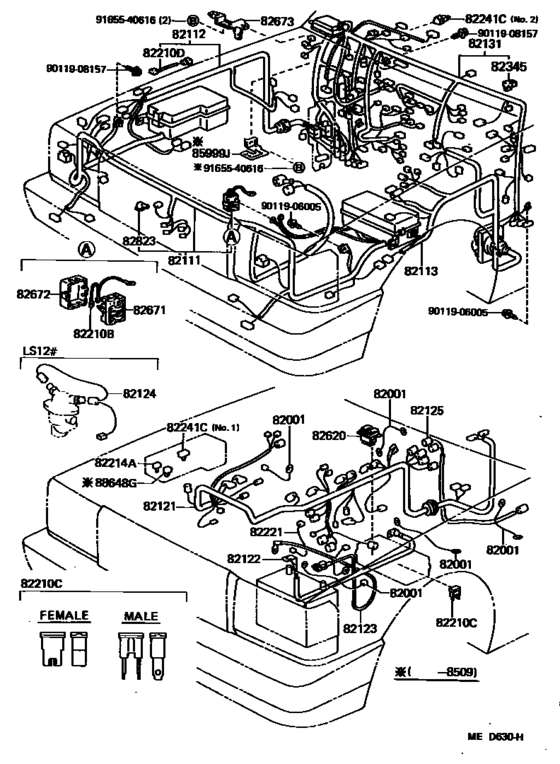

Wiring & Clamp ([08.1983 - ] (8308- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- SDX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-30501
Wire, Engine Room Main
[01.1985 - 09.1985] LS120..DLX,SAL,SDX,SPE |
82111-30501 |
— | ||
|
82111
|
82111
82111-30502 Wire, Engine Room Main[09.1985 - 08.1987] LS120..DLX,SAL,SDX,SPE,SSL |
82111-30502 |
US $848.85 |
||
|
82112
|
82112
82112-30170
Wire, Engine Room, No.2
[08.1983 - 09.1985] LS12#..DSL |
82112-30170 |
— | ||
|
82112
|
82112
82112-30171 Wire, Engine Room, No.2[09.1985 - 08.1987] LS12#..DSL |
82112-30171 |
US $471.74 |
||
|
82113
|
82113
82113-30221
Wire, Engine Room, No.3
[01.1985 - 09.1985] LS12#..(4FC,5F)..(DLX,SAL,SDX,SPE)..(DSL,TD) |
82113-30221 |
— | ||
|
82113
|
82113
82113-30222 Wire, Engine Room, No.3[09.1985 - 08.1987] LS12#..(4FC,5F)..(DLX,SDX,SPE,SSL)..(DSL,TD) |
82113-30222 |
US $550.37 |
||
|
82121
|
82121
82121-30190
Wire, Engine
[08.1983 - 09.1985] LS12#..DSL,TD |
82121-30190 |
— | ||
|
82121
|
82121
82121-30191
Wire, Engine
[09.1985 - 07.1986] LS12#..DSL,TD |
82121-30191 |
— | ||
|
82121
|
82121
82121-30192 Wire, Engine[07.1986 - 08.1987] LS12#..DSL,TD |
82121-30192 |
US $199.47 |
||
|
82122
|
82122
82122-30080 Wire, Engine, No.2[08.1983 - 08.1987] LS12#..MTM |
82122-30080 |
US $224.22 |
||
|
82122
|
82122
82122-30090 Wire, Engine, No.2[08.1983 - 08.1987] LS12# COLD SPEC |
82122-30090 |
US $224.22 |
||
|
82123
|
82123
82123-30060 Wire, Engine, No.3[08.1983 - 08.1987] LS12# |
82123-30060 |
US $80.08 |
||
|
82124
|
82124
82124-30010 Wire, Engine, No.4[08.1983 - 08.1987] LS12# ENGINE WIRE--TEMPERATURE SW |
82124-30010 |
US $6.99 |
||
|
82125
|
82125
82125-30060 Wire, Transmission[08.1983 - 08.1987] LS12#,MS120..MTM |
82125-30060 |
US $31.16 |
||
|
82131
|
82131
82131-30871 Wire, Cowl[09.1985 - 08.1987] LS12#..(4FC,5F)..(DLX,SDX)..DSL |
82131-30871 |
US $1,231.78 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 ４０Ａ，メス端子,40A |
90982-08189 |
US $7.88 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120 ８０Ａ，オス端子,80A |
90982-08203 |
from US $7.23 |
||
|
82214A
|
82214A
82214-30070
Wire, Lamp
[08.1983 - 09.1985] GS120,LS120..WG..SAL;GS120,121,LS120,MS120..(DLX,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC ) |
82214-30070 |
— | ||
|
82241C
|
82241C
82241-30180 Wire, Relay[08.1983 - 09.1985] GS121,LS120,MS12#..(DLX,ROY,SAL,SDX,SPE)..(DSL,TBO,TD,TDE,TWC) NO.1(RELAY BLK),W/O HORN RELAY |
82241-30180 |
US $4.22 |
||
|
82620
|
82620
82620-30020
Block Assy, Fusible Link
[07.1985 - 09.1985] YS120..DLX; GS12#,LS12#,MS12# |
82620-30020 |
— | ||
|
82620
|
82620
82620-30030 Block Assy, Fusible Link[09.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
82620-30030 |
US $30.28 |
||
|
82671
|
82671
82671-30060 Block, Junction[08.1983 - 09.1985] GS120,121,LS120,MS12#,YS120 RH |
82671-30060 |
US $10.77 |
||
|
82671
|
82671
82671-30061 Block, Junction[09.1985 - 08.1987] GS120,121,LS120,MS12#,YS120 RH |
82671-30061 |
US $17.18 |
||
|
82671
|
82671
82671-30070 Block, Junction[08.1983 - 08.1987] GS120,121,LS120,MS12#,YS120 LH |
82671-30070 |
US $11.07 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908157
|
9011908157
90119-08157
New Genuine Part
|
90119-08157 |
— | ||
| replacement | |||||
|
9011908157
|
9011908157
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.97 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
