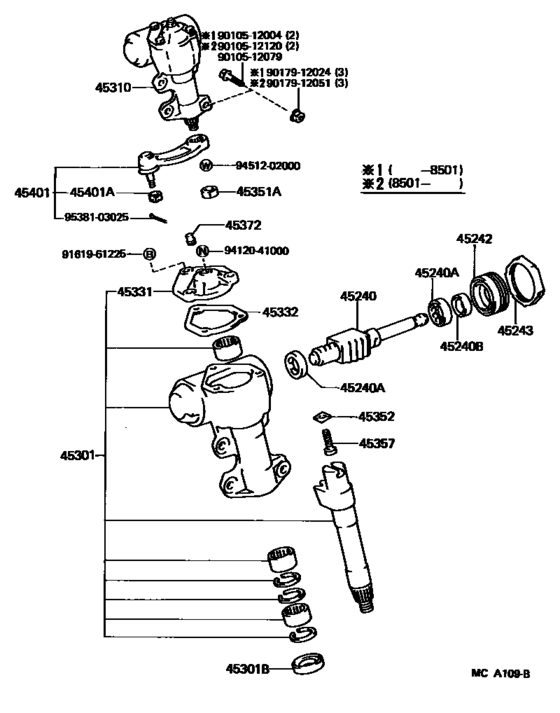

Front Steering Gear & Link ([08.1983 - ] (8308- )GS120..WG..MTM ; (8308- )GS126,LS1 26,YS120 ; (8308- )GS120,LS120,M S120..MTM..DLX,ST D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- STD
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45240
|
45240
45240-30060 Worm Assy, Steering[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45240-30060 |
US $294.11 |
||
|
45240A
|
45240A
90369-44001 Bearing(For Steering Worm)[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
90369-44001 |
US $24.02 |
||
|
45240B
|
45240B
90311-19001 Seal, Oil(For Steering Worm)[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
90311-19001 |
from US $3.20 |
||
|
45242
|
45242
45242-30060 Screw, Worm Bearing Adjusting[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45242-30060 |
US $35.53 |
||
|
45243
|
45243
45243-30060
Nut, Worm Bearing Adjusting Screw Lock
[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45243-30060 |
— | ||
|
45301
|
45301
45301-30090 Housing Sub-Assy, Steering Gear[08.1983 - 02.1985] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45301-30090 |
US $598.42 |
||
| replacement | |||||
|
45301
|
45301
45301-30110 Housing Sub-Assy, Steering Gear[08.1983 - 02.1985] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45301-30110 |
US $601.33 |
||
|
45301
|
45301
45301-30110 Housing Sub-Assy, Steering Gear[02.1985 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45301-30110 |
US $601.33 |
||
|
45301B
|
45301B
90310-34001 Seal, Oil(For Sector Shaft)[08.1983 - 12.1986] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
90310-34001 |
US $2.62 |
||
| replacement | |||||
|
45301B
|
45301B
90310-34006 Seal, Oil(For Sector Shaft)[08.1983 - 12.1986] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
90310-34006 |
US $2.62 |
||
|
45301B
|
45301B
90310-34006 Seal, Oil(For Sector Shaft)[12.1986 - 08.1987] GS120..WG..MTM; GS126,LS126; GS120,LS120,MS120,YS120..MTM..(DLX,STD) |
90310-34006 |
US $2.62 |
||
|
45310
|
45310
45310-30110 Housing Assy, Steering Gear[08.1983 - 02.1985] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45310-30110 |
US $813.90 |
||
| replacement | |||||
|
45310
|
45310
45310-30130 Housing Assy, Steering Gear[08.1983 - 02.1985] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45310-30130 |
US $822.64 |
||
|
45310
|
45310
45310-30130 Housing Assy, Steering Gear[02.1985 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45310-30130 |
US $822.64 |
||
|
45331
|
45331
45304-30080 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 1; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 1 |
45304-30080 |
US $59.84 |
||
| replacement | |||||
|
45331
|
45331
45304-30160 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 1; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 1 |
45304-30160 |
US $59.70 |
||
|
45331
|
45331
45304-30090 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 2; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 2 |
45304-30090 |
US $59.84 |
||
| replacement | |||||
|
45331
|
45331
45304-30160 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 2; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 2 |
45304-30160 |
US $59.70 |
||
|
45331
|
45331
45304-30100 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 3; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 3 |
45304-30100 |
US $59.84 |
||
| replacement | |||||
|
45331
|
45331
45304-30160 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 3; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 3 |
45304-30160 |
US $59.70 |
||
|
45331
|
45331
45304-30110 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 4; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 4 |
45304-30110 |
US $59.84 |
||
| replacement | |||||
|
45331
|
45331
45304-30160 Cover, Sector Shaft End[08.1983 - 02.1985] GS120..WG..MTM MARK 4; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) MARK 4 |
45304-30160 |
US $59.70 |
||
|
45331
|
45331
45304-30160 Cover, Sector Shaft End[02.1985 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45304-30160 |
US $59.70 |
||
|
45332
|
45332
45332-30080 Gasket, Sector Shaft End Cover[08.1983 - 02.1985] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45332-30080 |
US $2.91 |
||
|
45332
|
45332
45332-30090 Gasket, Sector Shaft End Cover[02.1985 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45332-30090 |
US $2.77 |
||
|
45351A
|
45351A
90170-20147 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
90170-20147 |
US $4.96 |
||
|
45352
|
45352
45352-14010
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．００,T=2.00; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．００,T=2.00 |
45352-14010 |
— | ||
| replacement | |||||
|
45352
|
45352
45352-12010
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．００,T=2.00; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．００,T=2.00 |
45352-12010 |
— | ||
|
45352
|
45352
45352-14020
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．０４,T=2.04; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．０４,T=2.04 |
45352-14020 |
— | ||
| replacement | |||||
|
45352
|
45352
45352-12020
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．０４,T=2.04; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．０４,T=2.04 |
45352-12020 |
— | ||
|
45352
|
45352
45352-14030
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．０８,T=2.08; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．０８,T=2.08 |
45352-14030 |
— | ||
| replacement | |||||
|
45352
|
45352
45352-12030 Washer, Sector Shaft ThrustSECTOR SHAFT THRUST [08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．０８,T=2.08; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．０８,T=2.08 |
45352-12030 |
US $3.35 |
||
|
45352
|
45352
45352-14040 Washer, Sector Shaft Thrust[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．１２,T=2.12; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．１２,T=2.12 |
45352-14040 |
US $3.35 |
||
| replacement | |||||
|
45352
|
45352
45352-12040
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．１２,T=2.12; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．１２,T=2.12 |
45352-12040 |
— | ||
|
45352
|
45352
45352-14050 Washer, Sector Shaft Thrust[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．１６,T=2.16; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．１６,T=2.16 |
45352-14050 |
US $3.35 |
||
| replacement | |||||
|
45352
|
45352
45352-12050
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．１６,T=2.16; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．１６,T=2.16 |
45352-12050 |
— | ||
|
45352
|
45352
45352-14060 Washer, Sector Shaft Thrust[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．２０,T=2.20; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．２０,T=2.20 |
45352-14060 |
US $3.35 |
||
| replacement | |||||
|
45352
|
45352
45352-12060
Washer, Sector Shaft Thrust
[08.1983 - 08.1987] GS120..WG..MTM 厚さ＝２．２０,T=2.20; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) 厚さ＝２．２０,T=2.20 |
45352-12060 |
— | ||
|
45357
|
45357
45357-30040
Screw, Sector Shaft Adjusting
[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45357-30040 |
— | ||
|
45372
|
45372
90930-03027
Plug, Steering Gear Housing Oil
[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
90930-03027 |
— | ||
|
45401
|
45401
45401-39215 Arm Sub-Assy, Pitman[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45401-39215 |
US $99.01 |
||
| replacement | |||||
|
45401
|
45401
45401-39275 Arm Sub-Assy, Pitman[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
45401-39275 |
US $94.64 |
||
|
45401A
|
45401A
90171-14042 Nut, Castle(For Pitman Arm)[08.1983 - 08.1987] GS120..WG..MTM; GS126,LS126,YS120;GS120,LS120,MS120..MTM..(DLX,STD) |
90171-14042 |
from US $2.30 |
||
|
9010512004
|
9010512004
90105-12004 Bolt, Hexagon(For Idler Arm Support Setting) |
90105-12004 |
US $4.66 |
||
|
9010512079
|
9010512079
90105-12079 New Genuine Part |
90105-12079 |
US $7.13 |
||
|
9010512120
|
9010512120
90105-12120 Bolt, Hexagon(For Idler Arm Support Setting) |
90105-12120 |
US $5.53 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
|
9017912051
|
9017912051
90179-12051 Nut(For Front Stabilizer Link) |
90179-12051 |
US $1.92 |
||
|
9161961225
|
9161961225
91619-61225
Bolt, Hexagon(For Rear Caliper)
|
91619-61225 |
— | ||
| replacement | |||||
|
9161961225
|
9161961225
91619-B1225 Bolt, Hexagon(For Rear Caliper) |
91619-B1225 |
from US $2.56 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451202000
|
9451202000
94512-02000 New Genuine Part |
94512-02000 |
US $3.68 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
