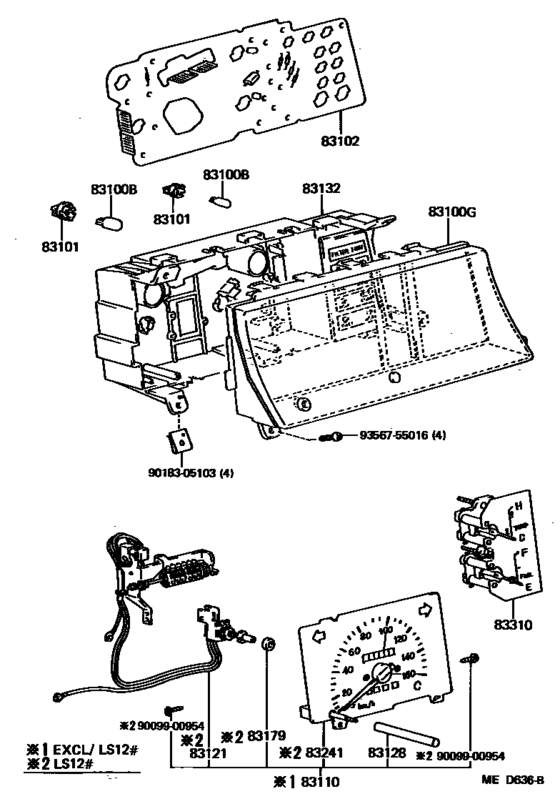

Meter ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- LS120
- grade
- STD
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-30030
Bulb, Combination Meter, No.1
[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H 12V 3.4W LONG LIFE,W/GREEN CAP |
83109-30030 |
— | ||
|
83100B
|
83100B
83109-30040
Bulb, Combination Meter, No.1
[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H 12V 2.0W LONG LIFE,W/GREEN CAP |
83109-30040 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
90981-11036 Bulb, Position Indicator Lamp[09.1985 - 08.1987] LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H １２Ｖ １．７Ｗ,12V 1.7W |
90981-11036 |
from US $1.88 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1983 - 08.1987] MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1983 - 08.1987] MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-3A230
Glass, Combination Meter
[08.1983 - 09.1985] LS12#..STD;LS120..4H..DLX |
83138-3A230 |
— | ||
|
83100G
|
83100G
83138-3A270
Glass, Combination Meter
[09.1985 - 08.1987] LS12#..STD;LS120..4H..DLX |
83138-3A270 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1983 - 08.1987] MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-30020
Socket Sub-Assy, Combination Meter Bulb
[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H 12V 3.4W LONG LIFE,BLUE |
83101-30020 |
— | ||
|
83101
|
83101
83101-30030
Socket Sub-Assy, Combination Meter Bulb
[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H 12V 2.0W LONG LIFE,BLUE |
83101-30030 |
— | ||
|
83102
|
83102
83247-3A150
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1983 - 08.1987] LS120..STD;LS120..4H..DLX |
83247-3A150 |
— | ||
|
83121
|
83121
83121-30130
Counter, Total
[08.1983 - 08.1987] LS12#..STD;LS120..4H..DLX |
83121-30130 |
— | ||
|
83128
|
83128
83128-16110
Knob, Trip Counter
[08.1983 - 08.1987] LS12#..STD;LS120..4H..DLX |
83128-16110 |
— | ||
|
83128
|
83128
83128-32010
Knob, Trip Counter
[08.1983 - 08.1987] GS126,LS12#..(4FC,5F)..(DSL,EFI,TD); GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
83128-32010 |
— | ||
|
83132
|
83132
83132-30490
Case, Combination Meter
[08.1983 - 09.1985] LS120..STD;LS120..4H..DLX |
83132-30490 |
— | ||
|
83132
|
83132
83132-3A010
Case, Combination Meter
[09.1985 - 08.1987] LS120..STD;LS120..4H..DLX |
83132-3A010 |
— | ||
|
83179
|
83179
83146-30850
Cover, Combination Meter, Hole
[08.1983 - 09.1985] LS12# |
83146-30850 |
— | ||
| replacement | |||||
|
83179
|
83179
83153-30800
Grommet, Meter Glass
[08.1983 - 09.1985] LS12# |
83153-30800 |
— | ||
|
83241
|
83241
83241-30330
Meter Sub-Assy, Speed
[08.1983 - 08.1984] LS12#..STD;LS120..4H..DLX |
83241-30330 |
— | ||
|
83241
|
83241
83241-30331
Meter Sub-Assy, Speed
[08.1984 - 09.1985] LS12#..STD;LS120..4H..DLX |
83241-30331 |
— | ||
|
83241
|
83241
83241-30570 Meter Sub-Assy, Speed[09.1985 - 08.1987] LS12#..STD;LS120..4H..DLX |
83241-30570 |
US $272.27 |
||
|
83310
|
83310
83243-30130
Gage Assy, Fuel Receiver
[08.1983 - 09.1985] LS12#..STD;LS120..4H..DLX |
83243-30130 |
— | ||
|
83310
|
83310
83243-30370
Gage Assy, Fuel Receiver
[09.1985 - 08.1987] LS12#..STD;LS120..4H..DLX |
83243-30370 |
— | ||
|
9009900954
|
9009900954
90099-00954
New Genuine Part
|
90099-00954 |
— | ||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
